Power Wheels xtreme machine 74790 - Parts Diagram and List

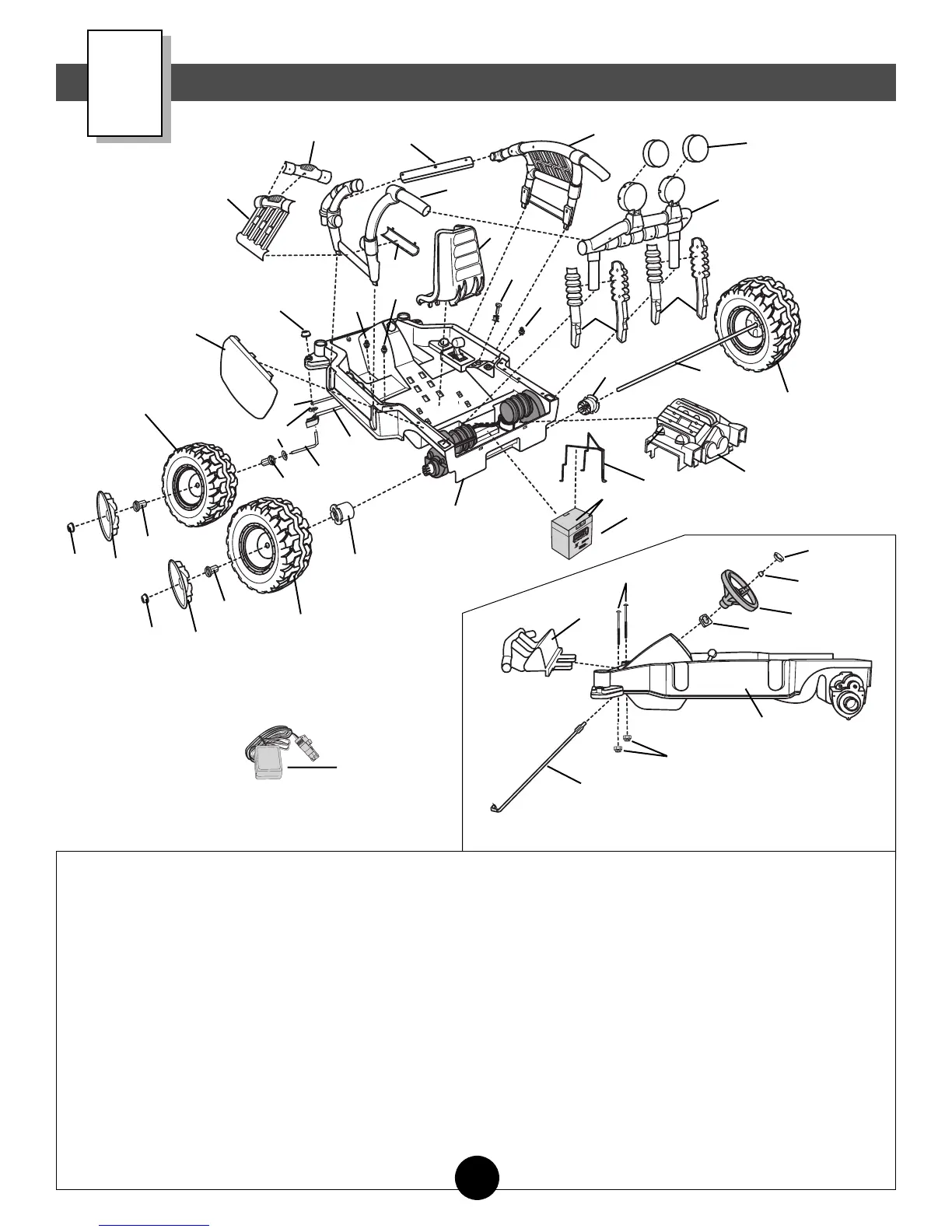

Parts Diagram
Pb
14
27
20
7
4
35
29
11
10
13
32
2
6
4
28
5
37
28
5
37
3
28
33
30
1
36
31
37
16
18
19
25
34
24
9
23
21
22
7
32
22
22
15
17
12
38
26
12-VOLT
CHARGER
D
Steering Column/Brush Guard Assembly
1. Vehicle Body
2. Steering Column
3. Front Wheel - 2
4. Rear Wheel - 2
5. Hubcap - 4
6. Left Fender
7. Left Shock Set
8. Right Shock Set
9. Seat
10. 12 Volt Battery
11. Battery Retainer
12. 12 Volt Charger
13. Brush Guard
14. Roll Cage - Right Side
15. Roll Cage - Left Side
16. Door
17. Door Hinge
18. Door Handle
19. Roll Cage Crossbar
20. Light Rack
21. Key Assembly
22. Radio Knob - 3
23. Steering Wheel Collar
24. Steering Wheel
25. Steering Wheel Cap
26.
1
/
2
" - 20 Lock Nut - 2
27. Light Cover - 2
28. Hex Bushing - 6
29. Decorative Engine
30. Steering Linkage
31. Steering Linkage Bar
32. Driver - 2
33. Front Axle - 2
34. .354 (Small Diameter) Cap Nut
35. Rear Axle
36.
7
/
16
" Washer - 4
37. .437 (Large Diameter) Cap Nut - 6
38.
1
/
4
" - 20 x 2
3
/
4
" Bolt - 2
Not Shown
Right Fender
#8 x 1
1
/
2
" Screw - 4
#8 x
1
/
2
" Screw - 2
#8 x
3
/
4
" Screw - 27
Label Sheet
7
32
1
8
