PowerBase 577139 - Grass Collection Bag Assembly

17

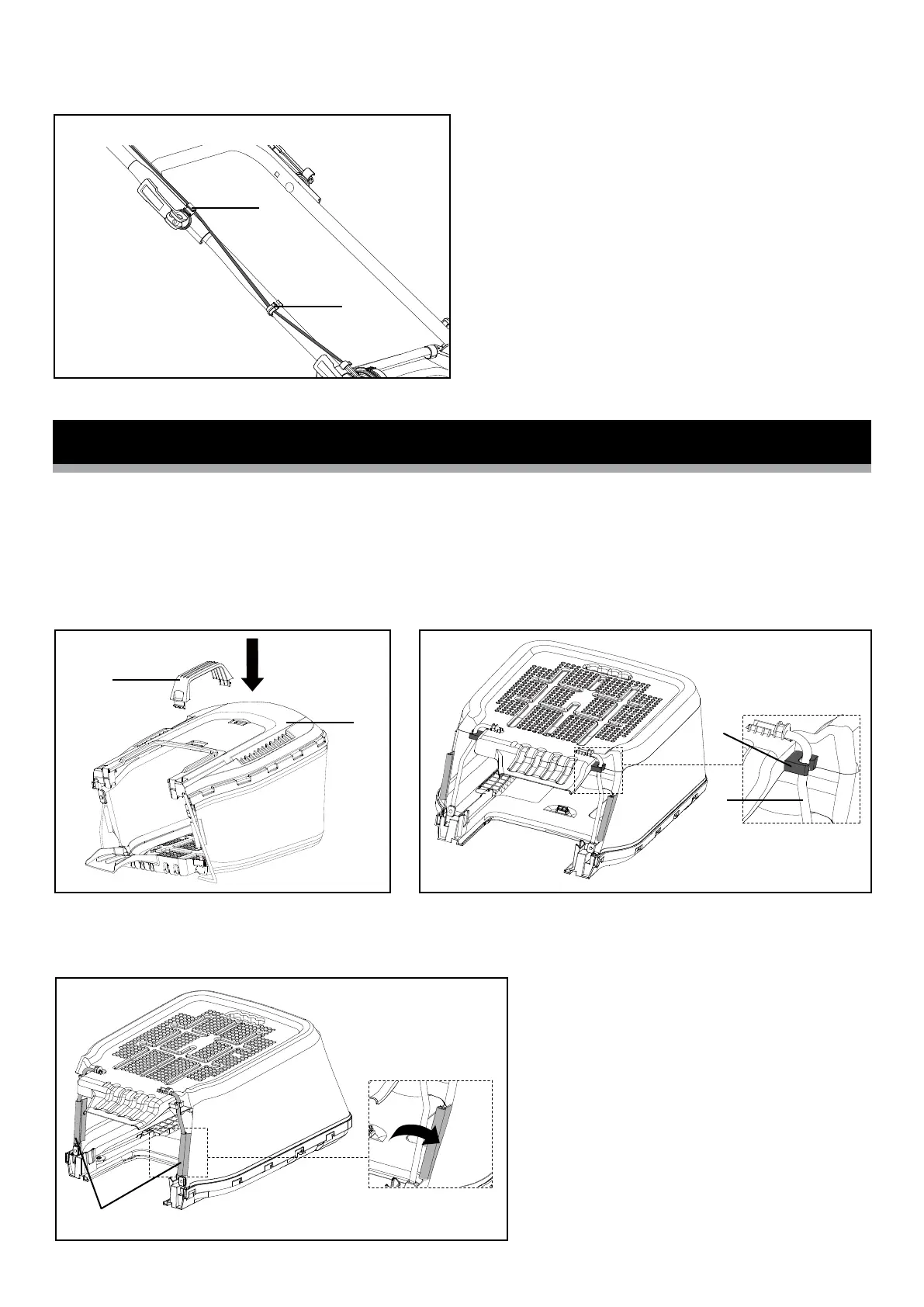

Step 2 – Assembling the grass collection bag
Fig. 3
1. Insert the handle (15) into the slots on the the grass collection bag top
(6) (Fig. 4).
2. Fully insert the rods of the metal frame (6b) into the slots (7b) on
either side of the plastic base (Fig. 5).
3. Secure the cable against the handle frame with the supplied cable clip
(14) and cable guide (4a) (Fig. 3).
Fig. 4
Fig. 5
4a
14
6
15
6b
7b
3. Ensure the side clamping sleeves (7a) are properly fixed onto the
frame (Fig. 6).
Fig. 6
7a
