LV710 Freight Camera - Dry Van Swing Door Installation
Revised: 05/23/19 17
13. Mark location for door trigger magnet.
a. Close and latch curbside door.
b. Place magnet bracket on locking rod parallel to the device.
c. Slide magnet bracket up or down so that center of magnet is aligned 1/16” above top of
notch on device.
d. Unlatch curbside door and rotate locking 90 degrees
e. Using the magnet bracket as a guide, mark locations of two mounting screws.

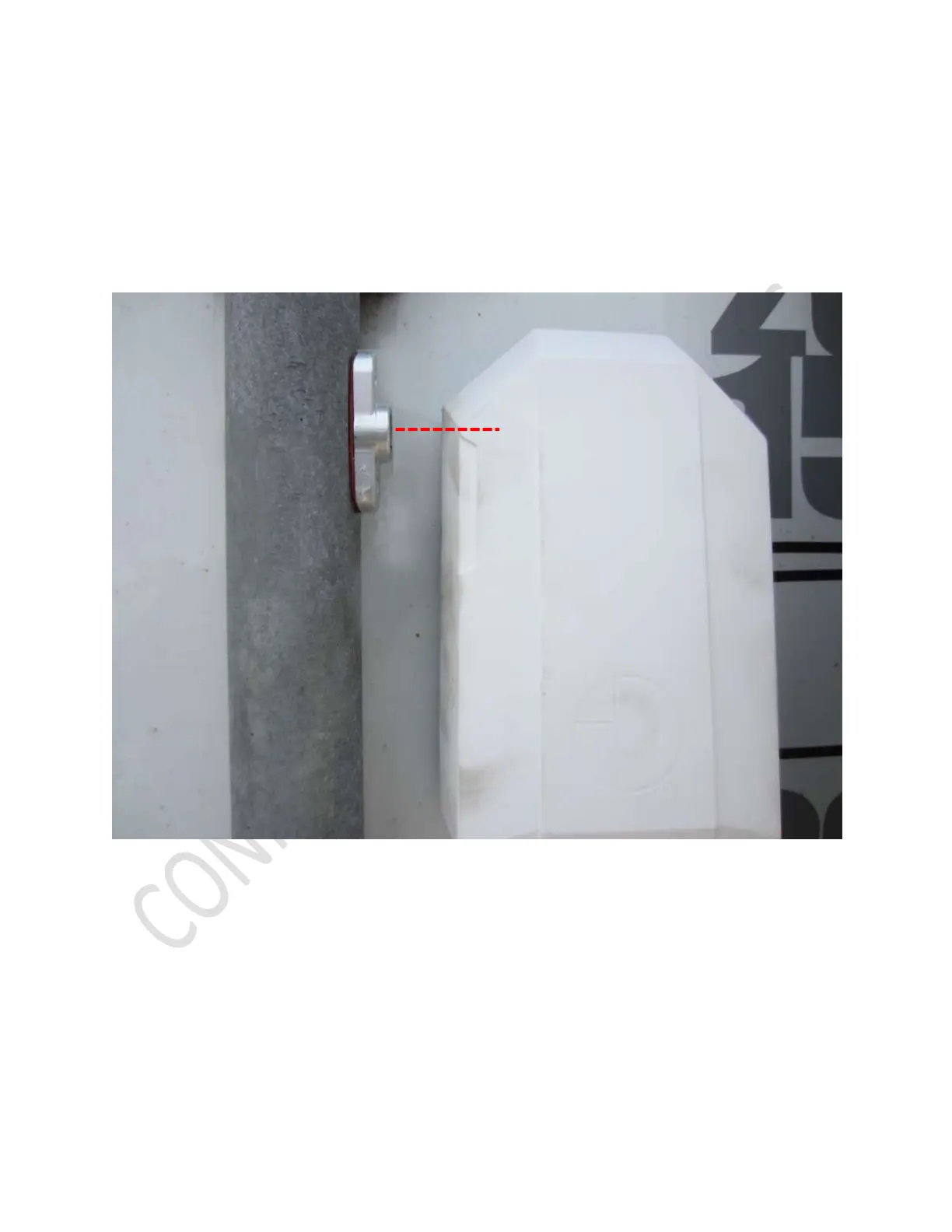

Proper alignment with device
