LV710 Freight Camera - Dry Van Swing Door Installation
Revised: 05/23/19 36
31. Install door trigger magnet.
w. Close and latch curbside door.
x. Apply Loctite to the two 10-32 thread forming screws in kit.
y. Install screws through door trigger magnet flange holes and into holes drilled in locking rod.
z. Using a Torx T25 driver, tighten screws until snug.

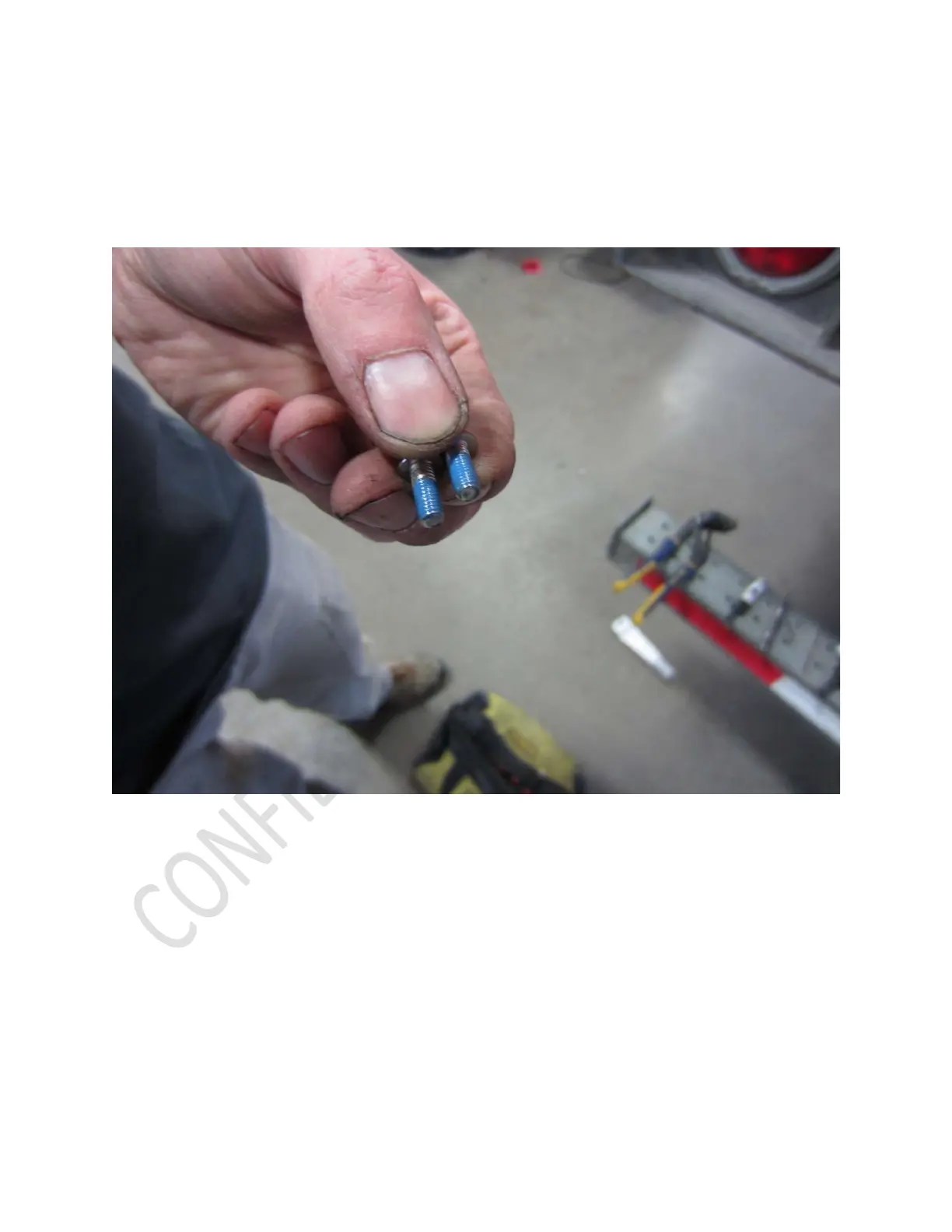

Loctite applied to thread forming screws
