Powermate M-2B - Page 46

DETAIL A
PowerMate
®
Operation Manua
l
POWERMATE
®

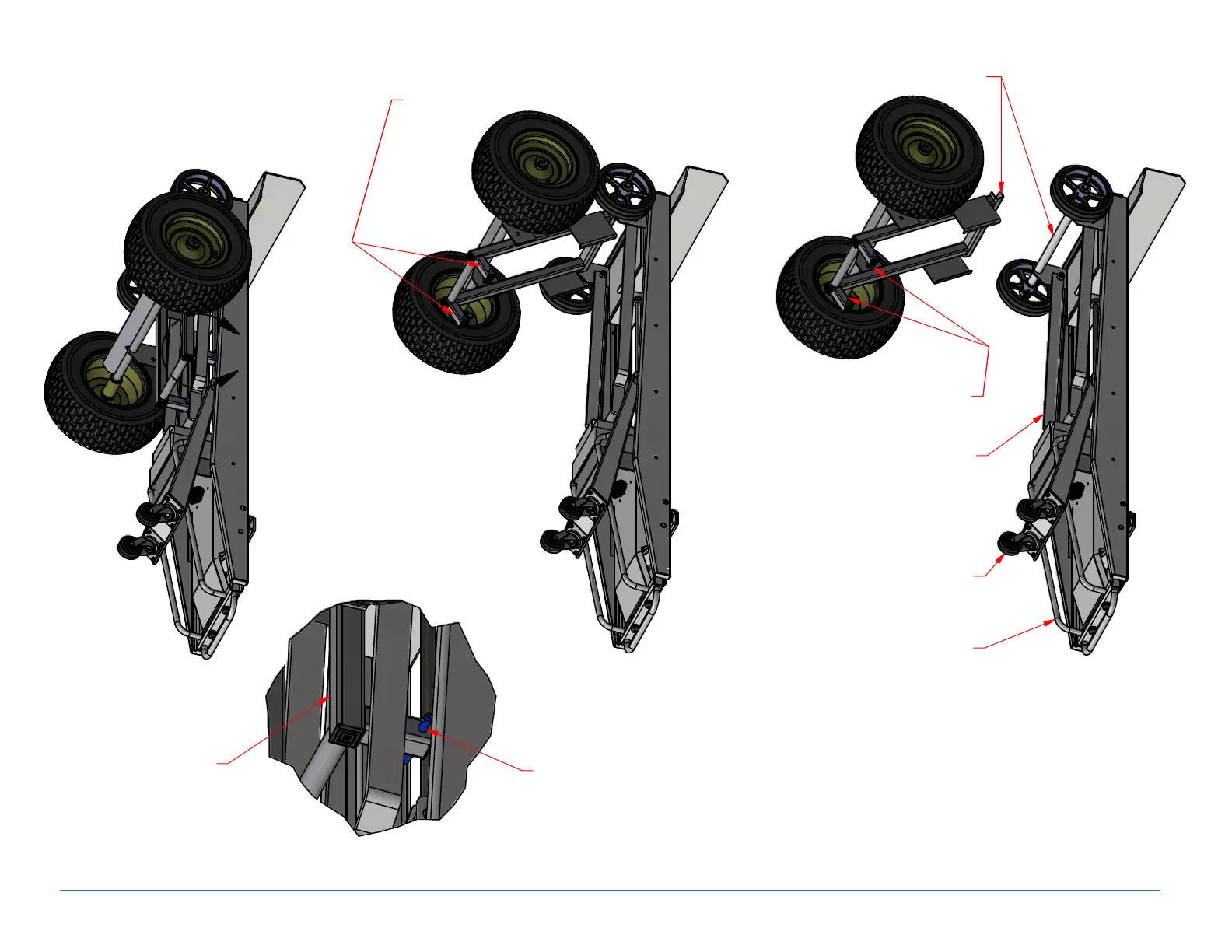

BIGWHEEL ATTACHMENT INSTALLATION
A
1. Raise Dolly Attachment (if
installed) up out of the way.
4. Place Bigwheel Attachment Hook
5. Raise the Bigwheel Attachment, rotating
on the machine axle tube allowing the
Pin Supports to pass through the
Hook Bar.
over the machine axle tube.
M-Series POWERMATE
3. Retract Pins by pulling
pin rings towards eachother.
2. Return Hook Bar to vertical
position and engage latch.
PN 010730 Rev.E
Assembly 404300
Eng 05/ 09/ 14
BigWheel Attachment
6. Engage Pins by pushing Pins outwards.
7.02
