ENG - 10Questions? Call Toll Free at 1-800-737-2112 Copyright © 2018 MAT Engine Technologies, LLC
Assembly (Continued)
• Save all instructions

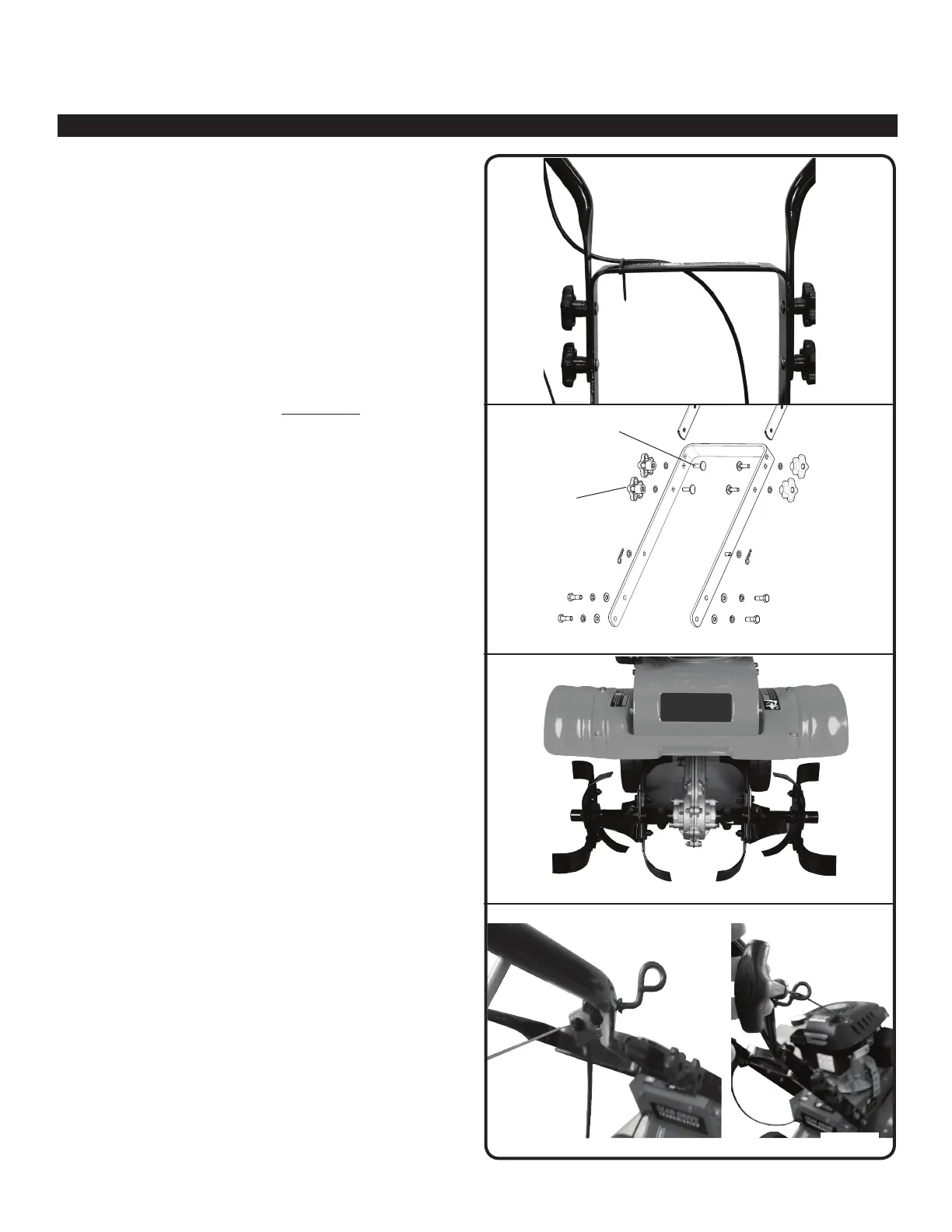

Attach upper handle (See Figure 6,7)
1. Slide the upper handle down over the lower handle and
align the holes. Orient upper handle so clutch lever is
below handle.
2. Insert the saddle bolts into the holes as shown and
secure with at washers and handle knobs.
3. Tighten the handle knobs securely.
4. Using one cable tie, secure the control cable to
the handle as shown.
Install the outside tine shields (See Figure 8)
1. Each outside tine shield can be installed on either side
of the main tine shield.
2. Place the outside tine shield underneath the main tine
shield and align the holes.
3. Secure each outside tine shield to the main tine shield
with (3) M6 x 16 bolts washers and lock nuts.
Install the rope guide (See Figure 9)
1. Install the rope guide into the right hand section of
the upper handle as shown. Install locknut and tighten
securely. Pull engine rope and route through
the guide.
Figure 7
Figure 8
Figure 9
Figure 6
Saddle
Bolts
Handle
Knobs
To Next Page
