Product Specifications
• Save all instructions
Parts & Features
Unit Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . .89 lb (40 kg)
Tilling Width . . . . . . . . . . . . . . . . . . . . up to 21 in (53.3 cm)
Tilling Depths . . . . . . . . . . . . . . . . . . . . . . up to 8” (20.3 cm)
Tine Diameter . . . . . . . . . . . . . . . . . . . . . . . .11 in (27.9 cm)
Gasoline Type .......Regular Unleaded/87 Octane (min.)
Gasoline Capacity . . . . . . . . . . . . . . . . . . . . 1.0 US qt. (1 L)
Engine Oil Type (API SG-SL) . . . . . . . . . . . . . . . . . . . . . . . .
10W-30 is recommended for all service temperatures.
See page (11) for additional information.
Engine Oil Capacity . . . . . . . . . . . . . 15-1/2 US oz (450 ml)
Engine Type . . . . . . . . . . . . . . . . . . . . . . . . . .OHV 4-stroke
1. Tines
2. Swing Plate
3. Wheels
4. Muffler
5. Air Filter
6. Recoil Starter Handle
7. Spark Plug / Spark Plug Wire
8. Drag Bar
9. Primer Bulb
10. Fuel Tank Cap
11. Oil Dipstick
12. Clutch Lever
13. Tine Shield
14. Outside Tine Shield
15. Wheel Height Adjust Link
Engine Displacement . . . . . . . . . . . . . . . . . . . . . . . . . 150cc
Engine Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3400 rpm
Torque Rating .... 5.75 ft-lbs gross torque per SAE J1940
Intake Valve Clearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0.006-0.008 in. (0.15-0.20 mm)
Exhaust Valve Clearance . . . . . . . . . . . . . . . . . . . . . . . . . . .
0.006-0.008 in. (0.15-0.20 mm)
Spark Plug Gap ..........0.024 - 0.031 in. (0.6 - 0.8mm)
Spark Plug Type ..............Torch K7RTC (Champion
C7YCC)
Wheel Size . . . . . . . . . . . . . . . . . . . . . . . . . . .6.5” (16.5 cm)
Refer to engine manual for detailed engine specs.
9

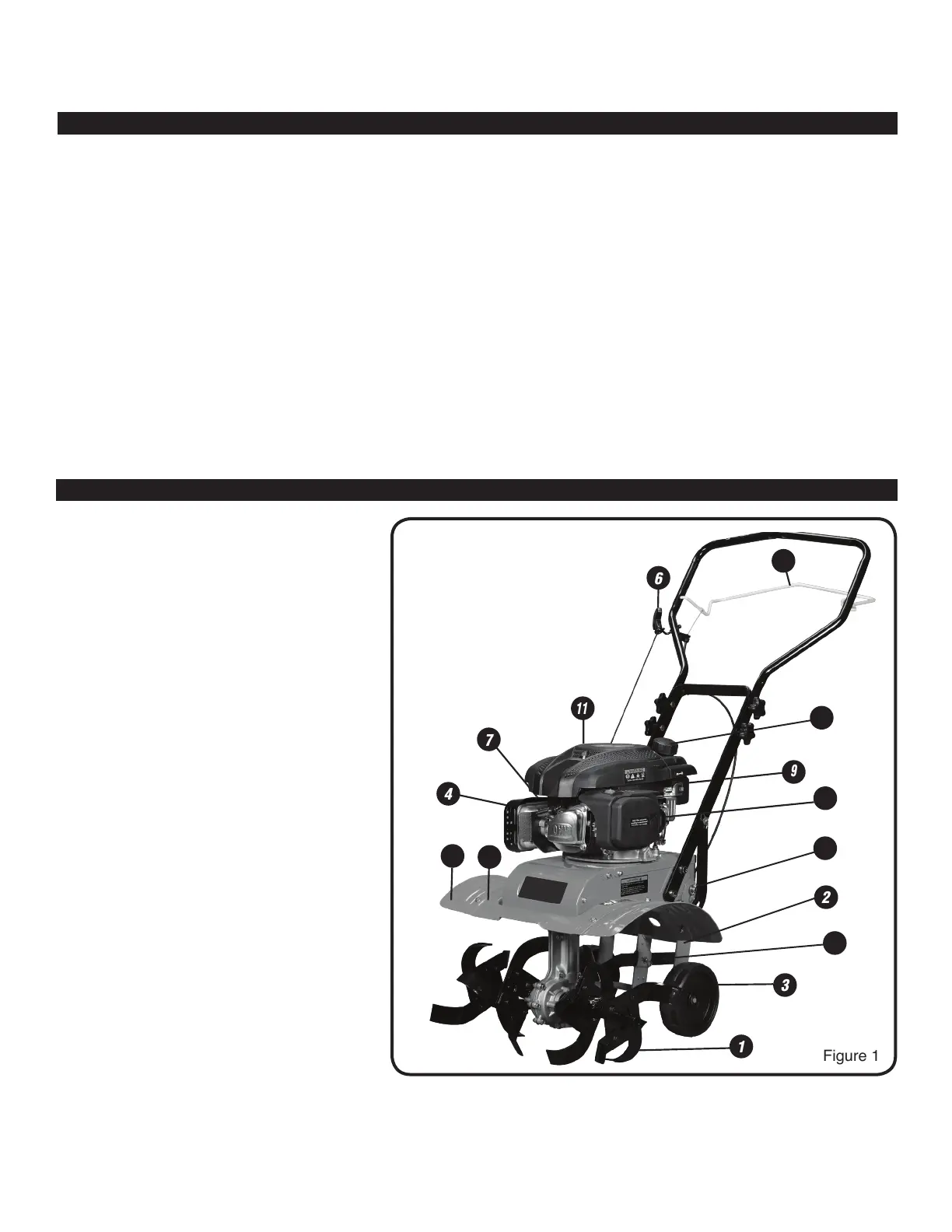

Figure 1
2
11
1
3
4
6
7
13
14
12
5
8
10
15
