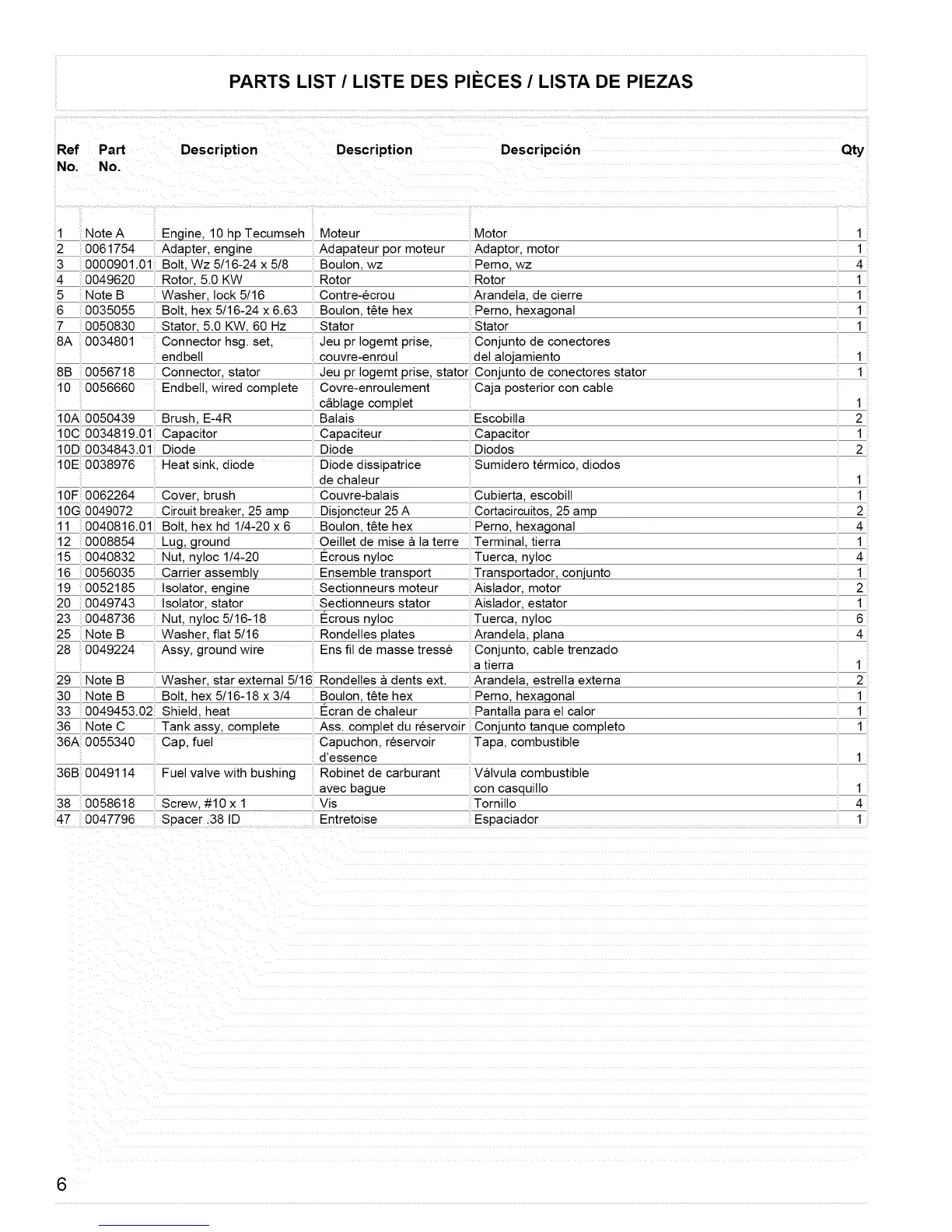

PARTS LIST / LISTE DES PII_CES / LISTA DE PIEZAS
Ref Part
No. No.
Description Description Descripcion Qty
1 Note A
2 0061754
3 0000901.01
4 0049620
5 Note B
6 0035055
7 0050830
8A 0034801
8B 0056718
10 0056660
Engine, 10 hp Tecumseh Moteur Motor
Adapter, engine Adapateur por moteur Adaptor. motor
Bolt Wz 5/16-24 x 5/8 Boulon wz Perno. wz
Rotor. 5.0 KW Rotor Rotor
Washer. lock 5/16 Contre-6crou Arandela. de cierre
Bolt. hex 5/16-24 x 6.63 Boulon. t6te hex Perno. hexagona
Stator, 5.0 KW, 60 Hz Stator Stator
Connector hsg. set. Jeu pr Iogemt prise. Conjunto de conectores
endbell couvre-enroul del alojamiento
Connector. stator Jeu pr Iogemt prise, stator Con lunto de conectores stator
Endbel wired complete Covre-enroulement Caja posterior con cable
c_blage complet
10A 0050439 Brush E-4R Balais Escobilla
10C 0034819.01 Capacitor Capaciteur Capacitor
10D 0034843.01 Diode Diode Diodos
10E 0038976 Heat sink. diode Diode dissipatrice Sumidero termico, diodos
de chaleur
10F 0062264 Cover. brush Couvre-balais Cubierta. escobil
10G 0049072 Circuit breaker. 25 amp Disjoncteur 25 A Cortacircuitos. 25 amp
11 0040816.01 Bolt, hex hd 1/4-20 x 6 Boulon, t6te hex
12 0008854 Lug, ground Oeillet de mise & la terre
15 0040832 Nut. nyloc 1/4-20 Ecrous nyloc
16 0056035 Carrier assembly Ensemble transport
19 0052185 Isolator. engine Sectionneurs moteur
20 0049743 Isolator. stator Sectionneurs stator
23 0048736 Nut. nyloc 5/16-18 l_crous nyloc
25 Note B Washer flat 5/16 Rondelles plates
28 0049224 Assy, ground wlre Ens fil de masse tresse
Perno. hexagona
Terminal tierra
Tuerca. nyloc
Transportador. conjunto
Aislador. motor
Aislador. estator
Tuerca. nyloc
Arandela. plana
Con unto. cable trenzado
1
1
4
1
1
1
1
1
1
1
2
1
2
1
1
2
4
1
4
1
2
1
6
4
a tierra 1
29 Note B Washer, star external 5/16 Rondelles a dents ext. Arandela, estrella externa 2
30 Note B Bolt hex 5/16-18 x 3/4 Boulon, t6te hex Perno. hexagonal 1
33 0049453.02 Shield heat l_cran de chaleur Pantalla para el calor 1
36 Note C Tank assy, complete Ass. complet du reservoir Conjunto tanque completo 1
36A 0055340 Cap, fuel Capuchon. reservoir Tapa combustible
d'essence 1
36B 0049114 Fuel valve with bushing Robinet de carburant Valvula combustible
avec bague con casquillo 1
38 0058618 Screw. #10 x 1 Vis Tornillo 4
47 0047796 Spacer.38 ID Entretoise Espaciador 1
6
