CAUTION: To prevent damage to tank and compressor, the
tank must be shimmed so the pump is level within 1/8” per
lineal foot maximum to distribute oil properly. Fasten to floor
and NEVER force tank feet to floor without shims when
tightening. We also recommend the use of vibration pads
(094-0021) under tank feet.
Stationary vertical models with B5900 pump
Beltguard may vary in
appearance from one
shown
UNLOADER VALVE DETAIL
Description des pièces de la
soupape de purge
Detalle de la válvula de purga
36a

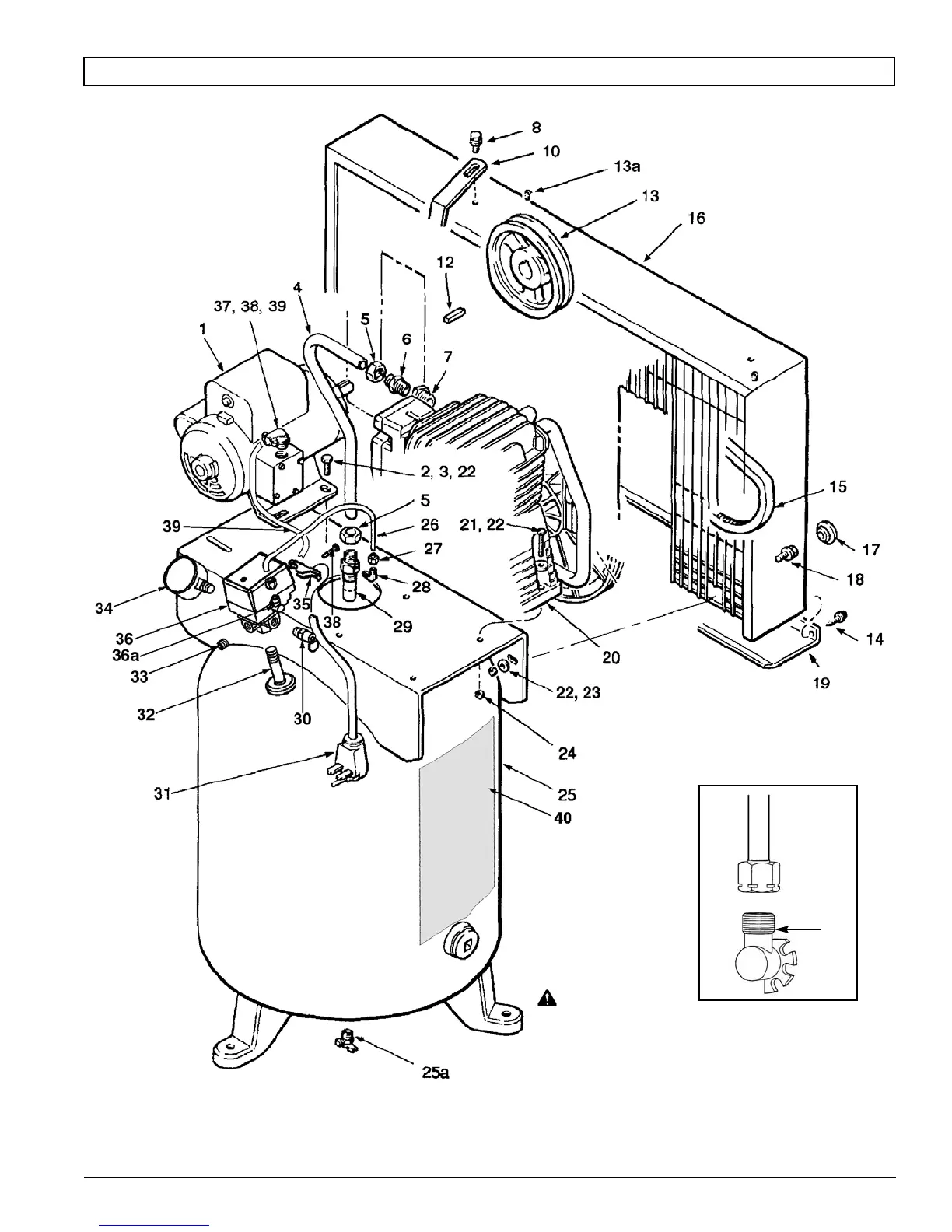

PARTS DRAWING / DESSIN DES PIÈCES / ESQUEMA DE LA PIEZAS
