PowerMax ASE59 - Special Functions; Up Needle Stop Position Adjustment; Default Factory Setting Recovery; Pedal Sensitivity Adjustment

8/8
Err-13
Motor HALL failure
Turn off the system power, check if the motor sensor plug is loose or dropped off,
restore it and restart the system. If it still does not work, please replace the controller
and inform the manufacturer.
Err-14
DSP Read/Write EEPROM
failure
Err-15 Motor over-speed protection
Err-16 Motor reversion
Err-17
HMI Read/Write
EEPROM failure
Err-18 Motor overload
Turn off the system power, restart the system after 30 seconds, if it still does not work,
please replace the controller and inform the manufacturer.
Err-23
Sewing motor blocked
Sector error
- Eliminate sluggish movement in the sewing machine
- Replace encoder - Replace sewing motor
4 Special Functions
4.1 The Adjustment of Up Needle Stop Position
1
2 4 0 0 0 0
Step 1: Press
P
+ key, then enter the monitor mode. Parameter 024 is shown, which
means the default up needle stop position in angle.
2
2 4 0 1 2 4
Step 2: Turn the hand wheel and adjust to the right position as up needle stop, and the
needle position angle is shown simultaneously.
3
2 4 0 0 0 0
Step 3: Press
P
+ key, the new up needle position is preserved and the parameter is
set to zero.
4.2 The Recovery of Default Factory Setting
1
2 4 0 0 0 0
Step 1: Press
P
+ key, then enter the monitor mode.
2
- - - - - -
Step 2: Press key for about 5 seconds, then Default Factory Setting is recovered
displaying as left LCD.
3
8 8 8 8 8 8
When the LCD is displayed as 8888888, the recovery is accomplished. The machine is
recovered back to the initial state in delivery.
4.3 Pedal Sensitivity Adjustment
Pedal starts moving from the initial position (p.136) where the motor stops, slowing forward to the low speed point (p.137)
where the motor run as the minimum speed (p.100), continuing to the accelerated point (p.138) where the motor start to speed up,
until the max speed point (p.139) where the motor run up to the maximum speed (p.101). And when the pedal steps back to the foot
lifter position (p.135), the presser foot lift. Continuing back to the auto trimming position (p.134), the line is cut. Adjusting the
corresponding parameters, user can acquire the proper pedal response to fit the personal habit.

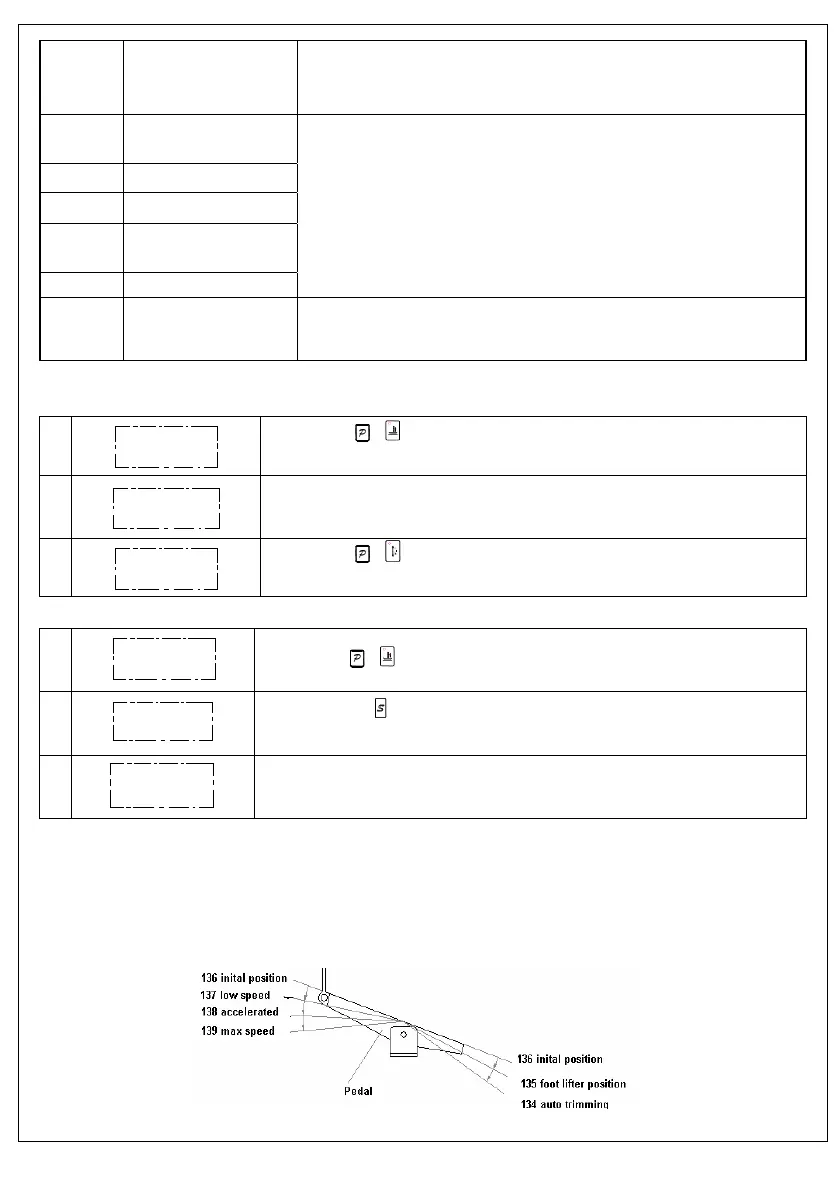

Fig. 4-1 pedal movement of each position parameter
