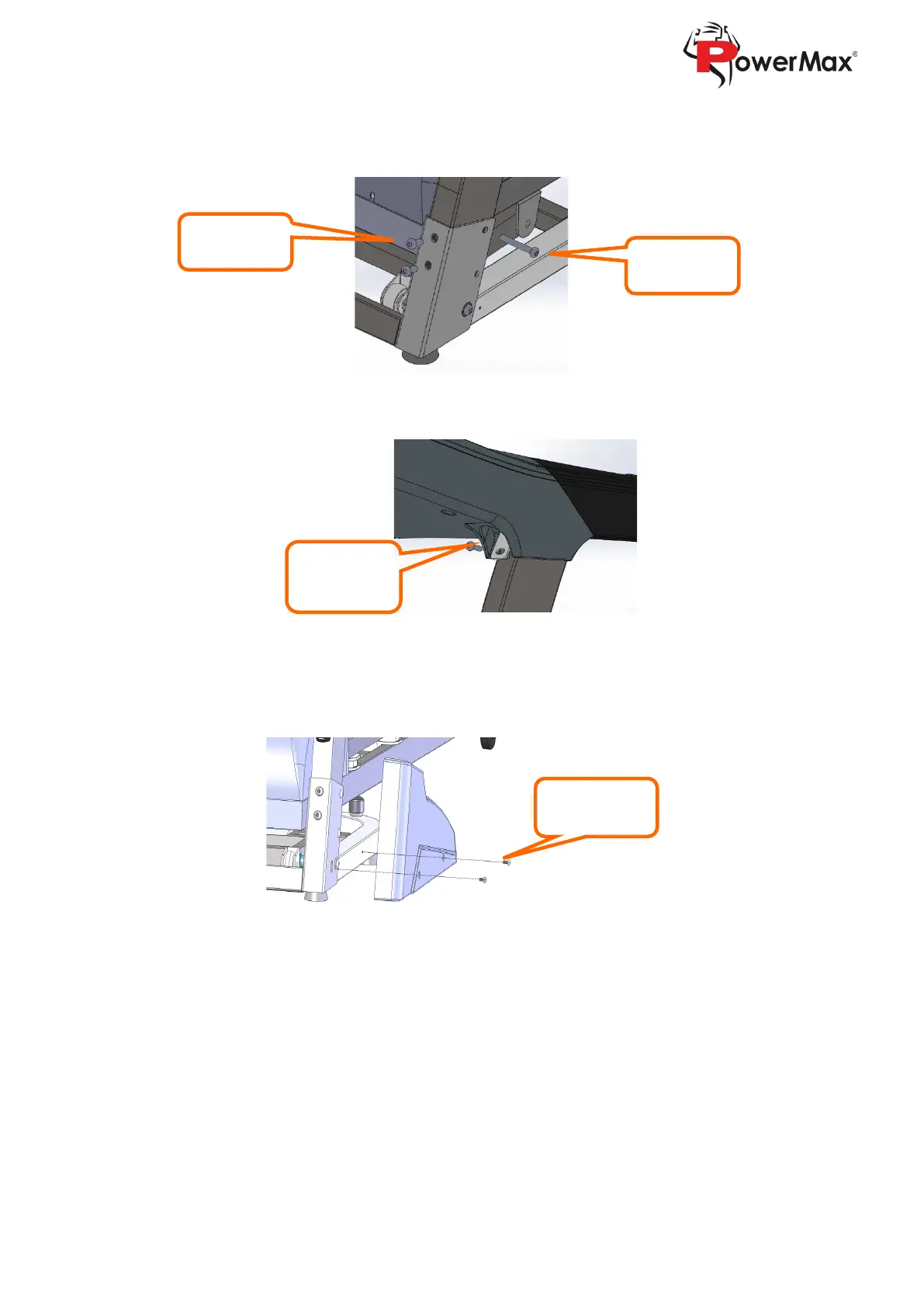

2. Use 5# inner hexagon spanner, screw M8*50 and screw M8*20 to lock the columns on the
base, as shown in the picture bellow:
3. Use 5# inner hexagon spanner and screw M8*22 to lock the console on the columns.
4. Use screwdriver and screw M5*14 to fix the base corner covers on the columns.
5. Take out the console, connect the signal lines one by one (A), put the extra exposed lines into
the case and then put the console on the console slot (please be careful and do not stuck or cut
the lines), adjust the position and use screw M8*20 to lock it tightly.
