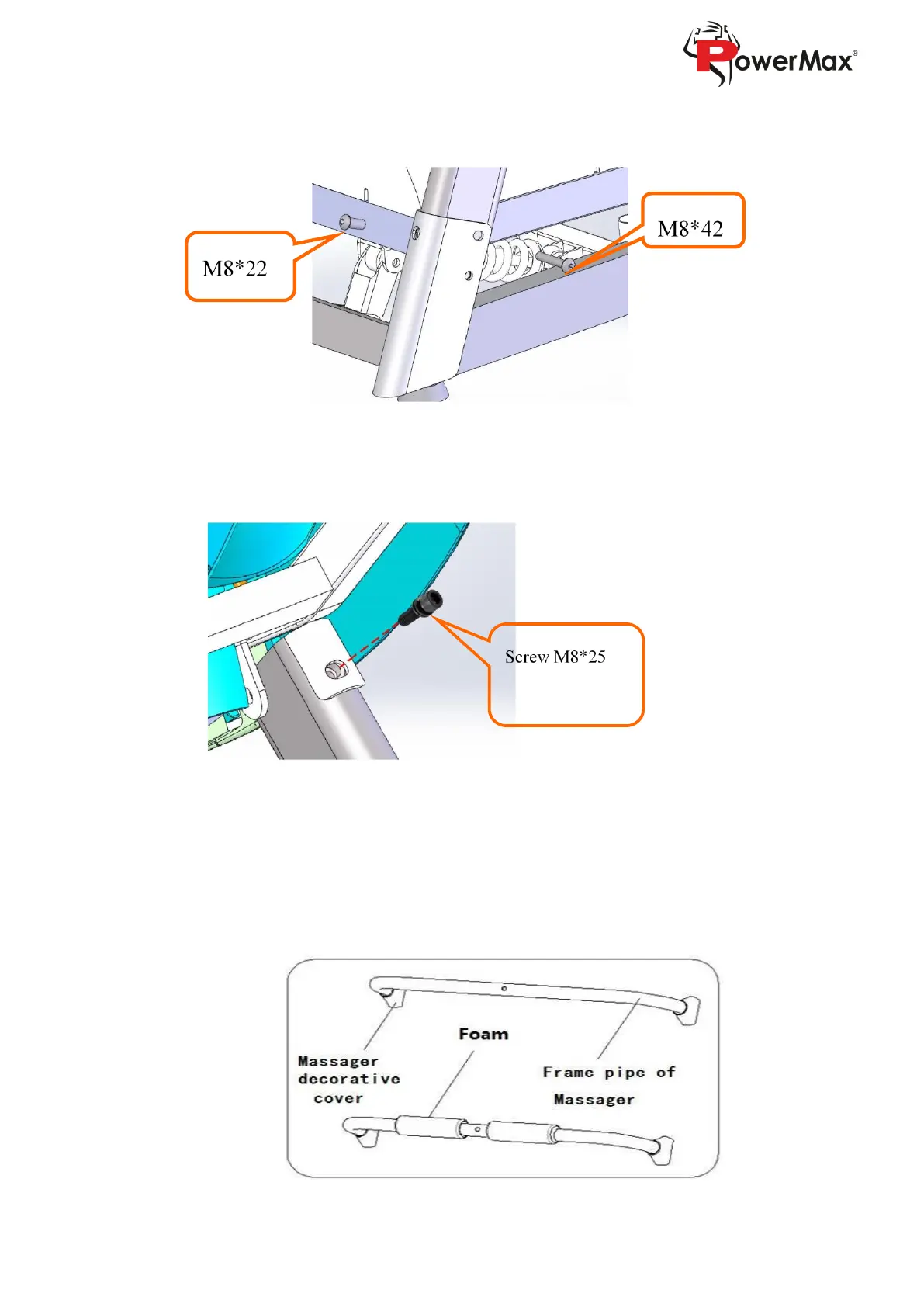

1. Use 5# inner hexagon wrench and M8*42(A) to lock washers and nuts through the
column. Then fix the column on the base with screw M8*22(B)
2. Hold left& right columns, use 6# inner hexagon wrench to lock the console frame on the
columns with screw M8*25.
Above are steps of single function installation. Multifunctional machine needs to be
installed after you complete the steps above and then continue with the following
installation:
3. Put two foams and four massager’s decorative covers on the frame pipe. (as the picture
bellow)
