KNOWING YOUR LAWN MOWER

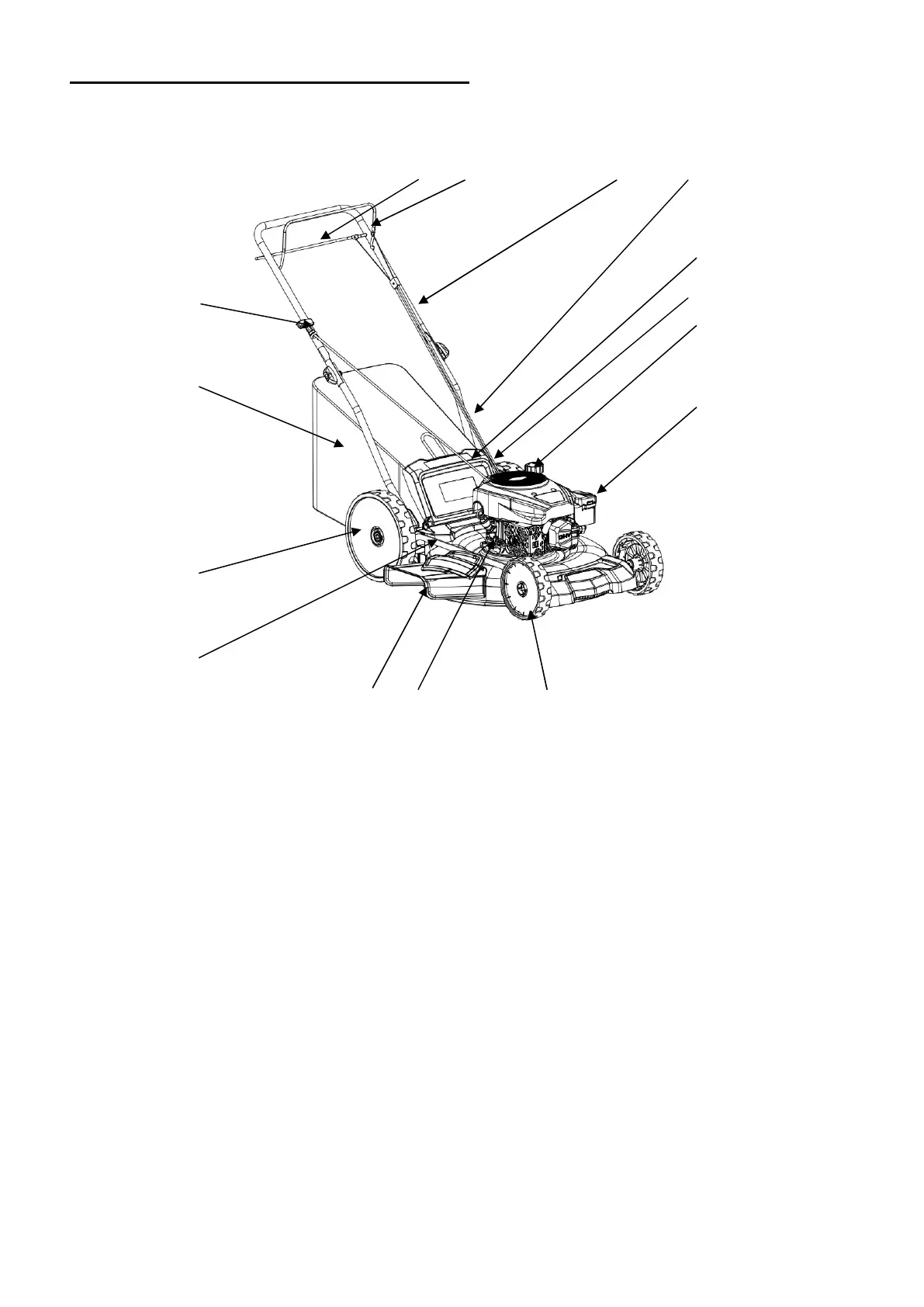

Please use the illustration below to familiarize yourself with the location and function of the
components that control of your lawn
mower.
1 Recoil Starter handle 9 Fuel tank cap
2 Grass catcher 10 Adjusting handle
3 Rear wheel 11 Rear discharge door
4 Connecting welding 12 Lower handle
5
6
Side discharge chute
Oil dipstick
13
14
Upper handle
Engine start/stop control
7
8
Front wheel
Primer bulb
15 Drive Control bar
15 14 13 12
5 6 7
11
10
9
8
1
2
3
4
