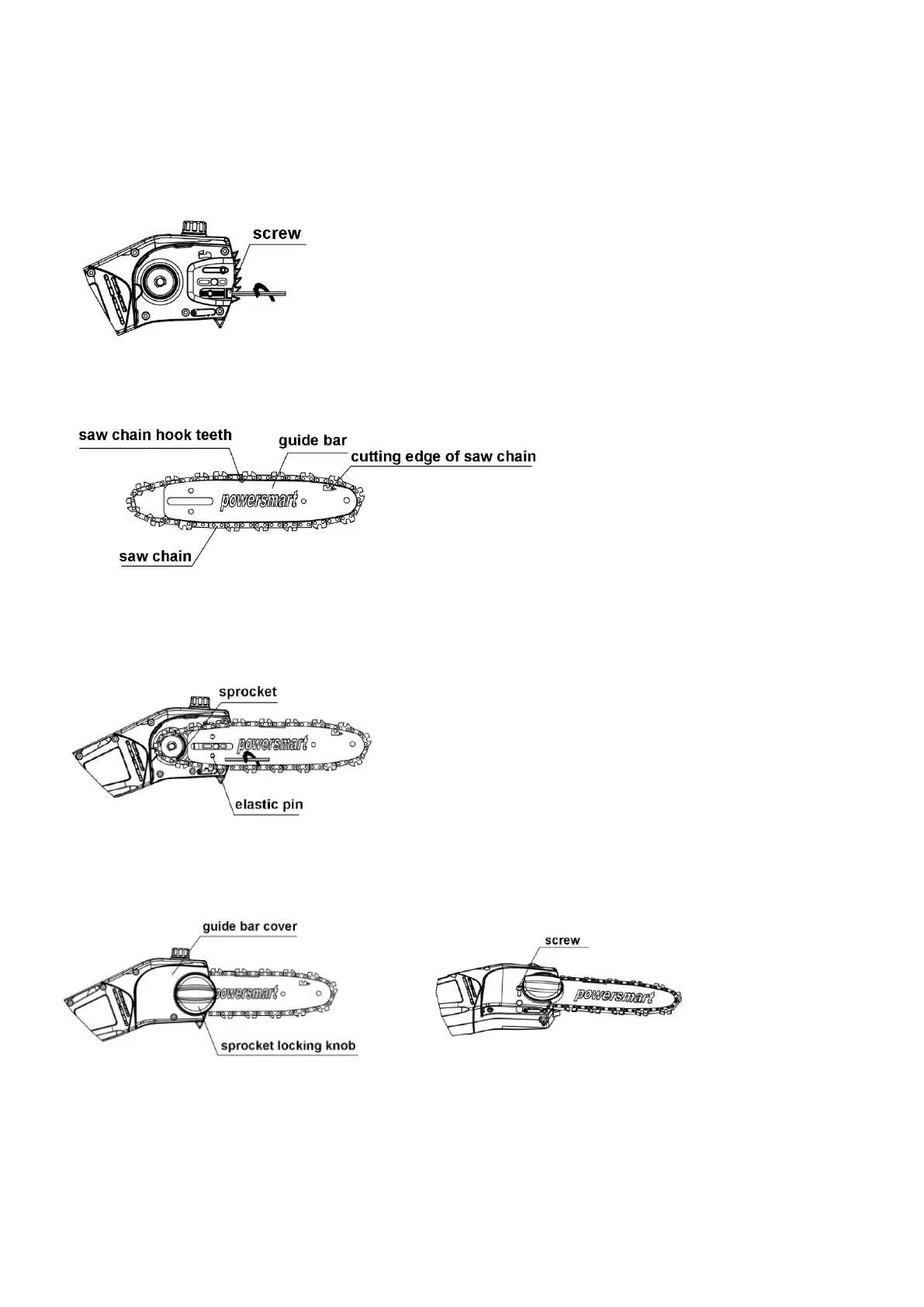

Install the guide bar&saw chain
1. Loosen the screw on the machine in the direction of the arrow with an inner hexagon wrench.
2. Install the saw chain hook teeth into the groove of the guide bar.
Note: ensure that the saw chain is installed in the correct direction of rotation.
3. Install the guide bar and saw chain assembly onto the chain teeth and clip the guide bar into the elastic
pin.
4. Adjust the length and tightness of the guide plate by twisting with an inner hexagon wrench.
5. Close the guide bar cover and tighten the sprocket locking knob.
6. Tighten the screw.
