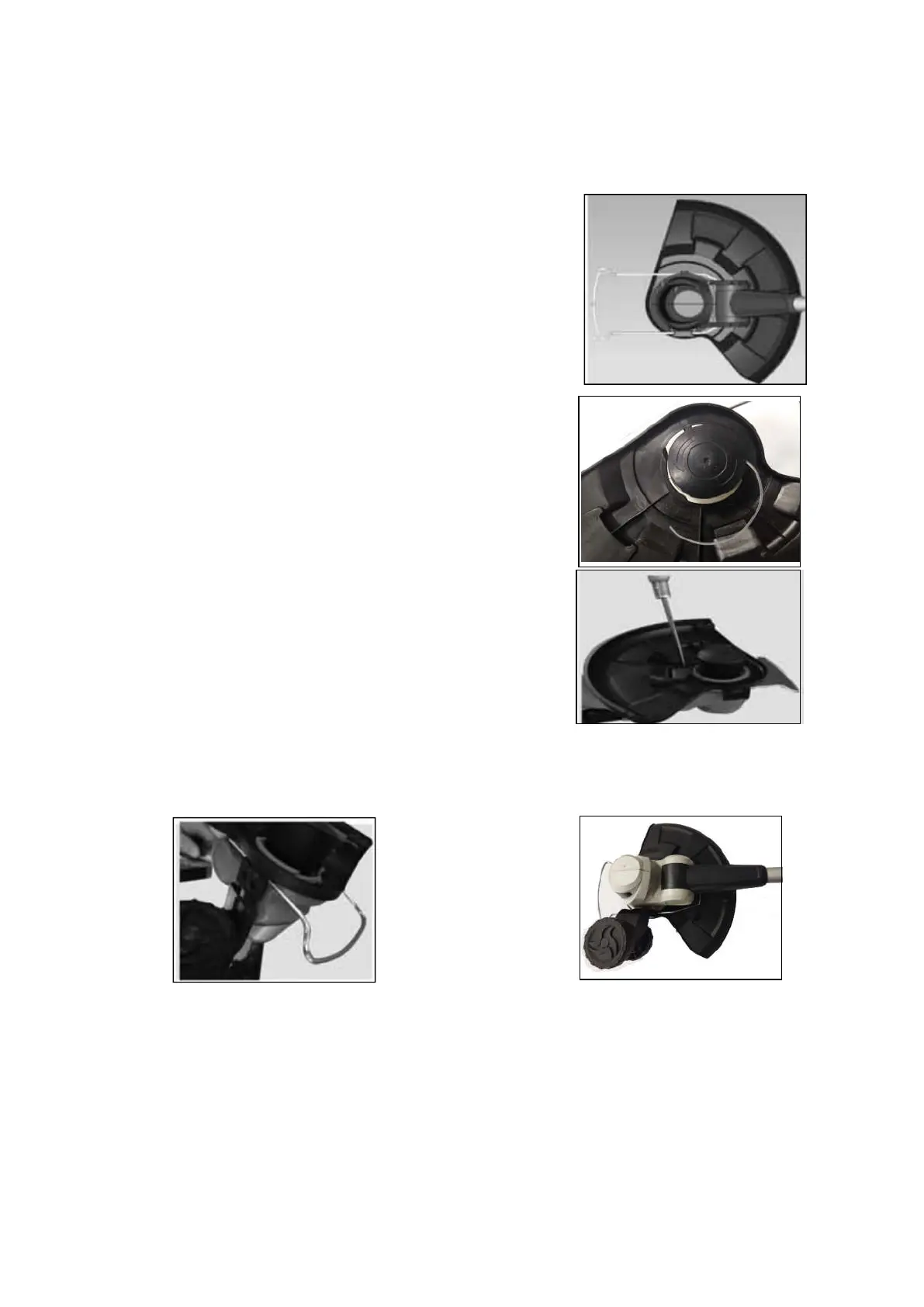

INSTALLING THE PROTECTOR AND GUARD AND THE EDGING WHEEL
 Insert the protector (H) into the black slot on motor housing (F).
Note the direction of the protector. When in trimming mode,
the protector should be like fig.3.
 Locate the guard (I) onto the motor housing and turn it a bit to
make sure it engages into the slots on the motor housing (F).
Note
to follow the arrow direction on the guard (I)
(See fig.4)
 Fix the guard onto the motor housing with the screw out of the
package (See fig.5)
 When in edging mode, the edging wheel (G) needs to be fit on the trimmer. Insert the edging wheel
into the black slot piece on the motor housing (F) (See fig.6). Make sure the edging wheel is firmly
connecting with slot. And push the protector (H) to make it not protrude (See fig.7).
Fig. 3
Fig. 4
Fig. 5
Fig. 6 Fig. 7
