Wheel assembly

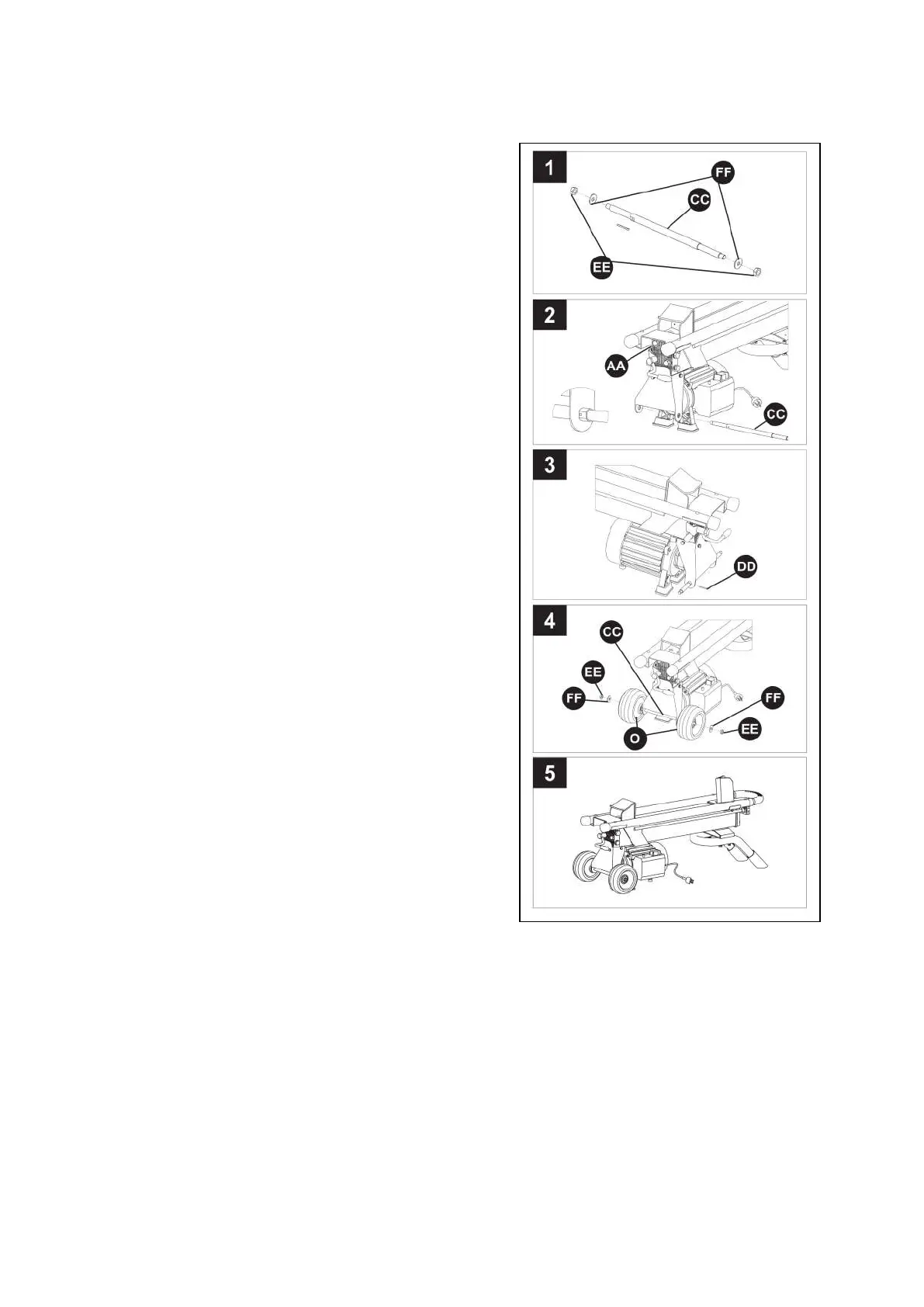

1. Unscrew the lock nuts (EE) and flat washers (FF)
from the wheel shaft (CC).
2. Insert the wheel shaft (CC) into the frame of the log
splitter (AA) (Figure 2) and secure with the cotter
(DD) (Figure 3).
3. Secure the wheels (O) to the wheel shaft (CC) using
the lock nuts (EE) and flat washers (FF) (Figure 4).
4. Log splitter is fully assembled (Figure 5).
