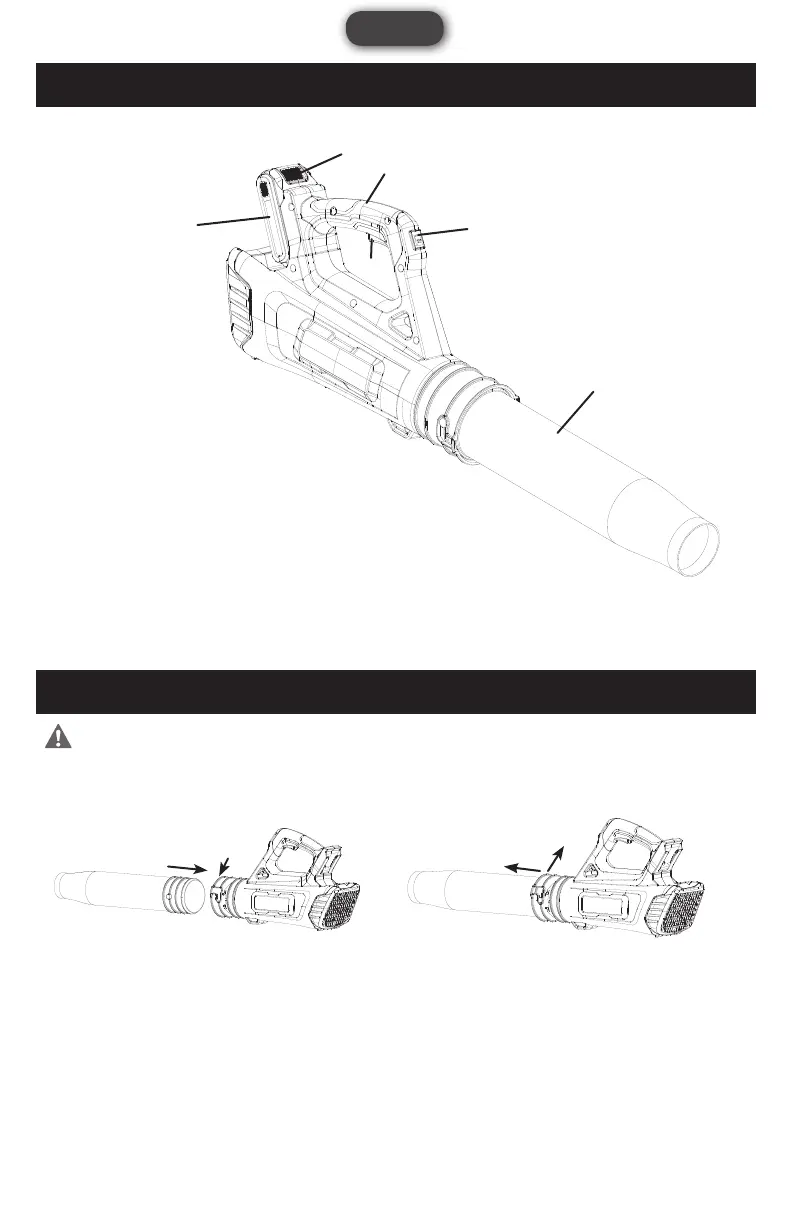

PowerSmith PBL120J - Knowing Your Blower; Assembly and Adjustments; Assembling and Disassembling the Blower Tube

1. Blower Tube
2. Trigger Switch
3. Speed Selector
4. Handle
5. Battery Pack
6. Battery Locking Tab
FIG 1
1
5
6
4
2
3
FIG 2
FIG 3
1
2
1
2
8
English
kNOWINg YOUR BLOWER
ASSEMBLY AND ADJUSTMENTS
WARNING: Always be sure that the product is switched off and the battery is
disconnected before adjusting, adding accessories, or checking a function on the tool.
ASSEMBLING AND DISASSEMBLING THE BLOWER TUBE
Install the blower tube to the motor housing as shown in Fig 2. Check and make sure the blower tube is firmly secured.
Disassemble the blower tube as shown in Fig 3. Do not try to separate the tube by force or by using tools.
Before disassembling the blower tube, be sure the trigger switch is in the OFF position.
