PowerTech PTRV-12 KSI User Manual

RESISTANCE CHART
KW 8 MARKS COLOR
MAIN STATOR 0.257 T-1 – T-2 : T-3 – T-4 W
MAIN ROTOR 83.1 *** ---
AUX. WINDING 2.64 Y1 – Y2 W
BATT. CHARGE 0.159 --- W
SENSING WINDING 0.085 *** W
NOTE: THESE READINGS WILL VARY DEPENDING ON AMBIENT TEMPERATURE
POWER TECHNOLOGY SOUTHEAST, INC.
634 STATE ROAD 44
LEESBURG, FL 34748-8103
(352) 365-2777 FAX (352) 787-5545

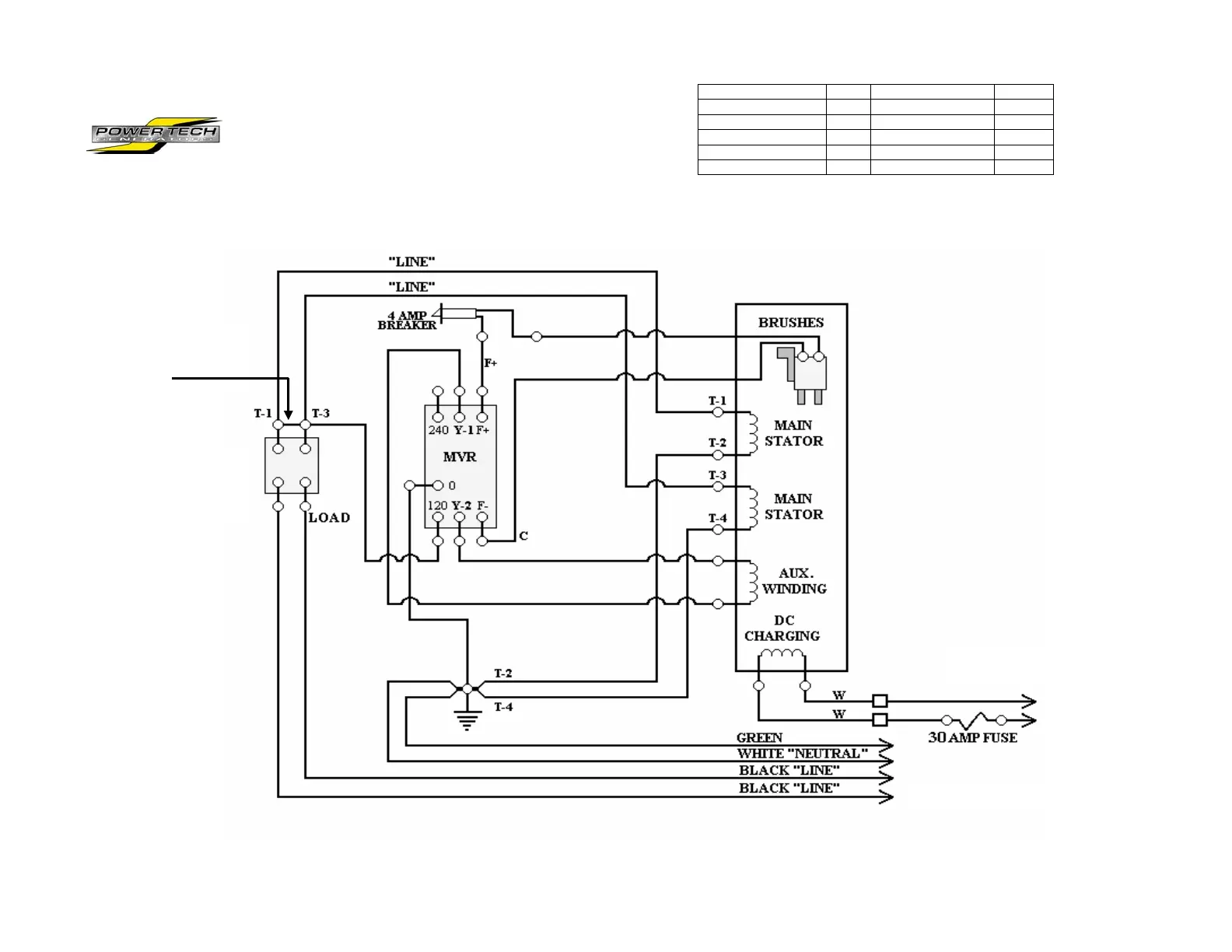

AC ELECTRICAL CIRCUIT FOR PTRV-8 KSI “MB” GENERATORS 120 VOLTS LINE TO NEUTRAL
GENERATOR OUTPUT LEADS
OPTIONAL 12V DC
CHARGING RECTIFIER
2 POLE CIRCUIT BREAKER
35 AMP for 8 KW
8
#12
JUMPER
WIRE
