RESISTANCE CHART
KW 10 12 MARKS COLOR
MAIN STATOR 0.093 0.093 T-1 - T-2 : T-3 – T-4 W
MAIN ROTOR 72.5 72.5 *** ---
AUX. WINDING 0.892 0.892 Y1 –Y2 W
BATT. CHARGE 0.082 0.082 --- W
SENSING WINDING 0.029 0.029 *** W
NOTE: THESE READINGS WILL VARY DEPENDING ON AMBIENT TEMPERATURE
POWER TECHNOLOGY SOUTHEAST, INC.
634 STATE ROAD 44
LEESBURG, FL 34748-8103
(352) 365-2777 FAX (352) 787-5545

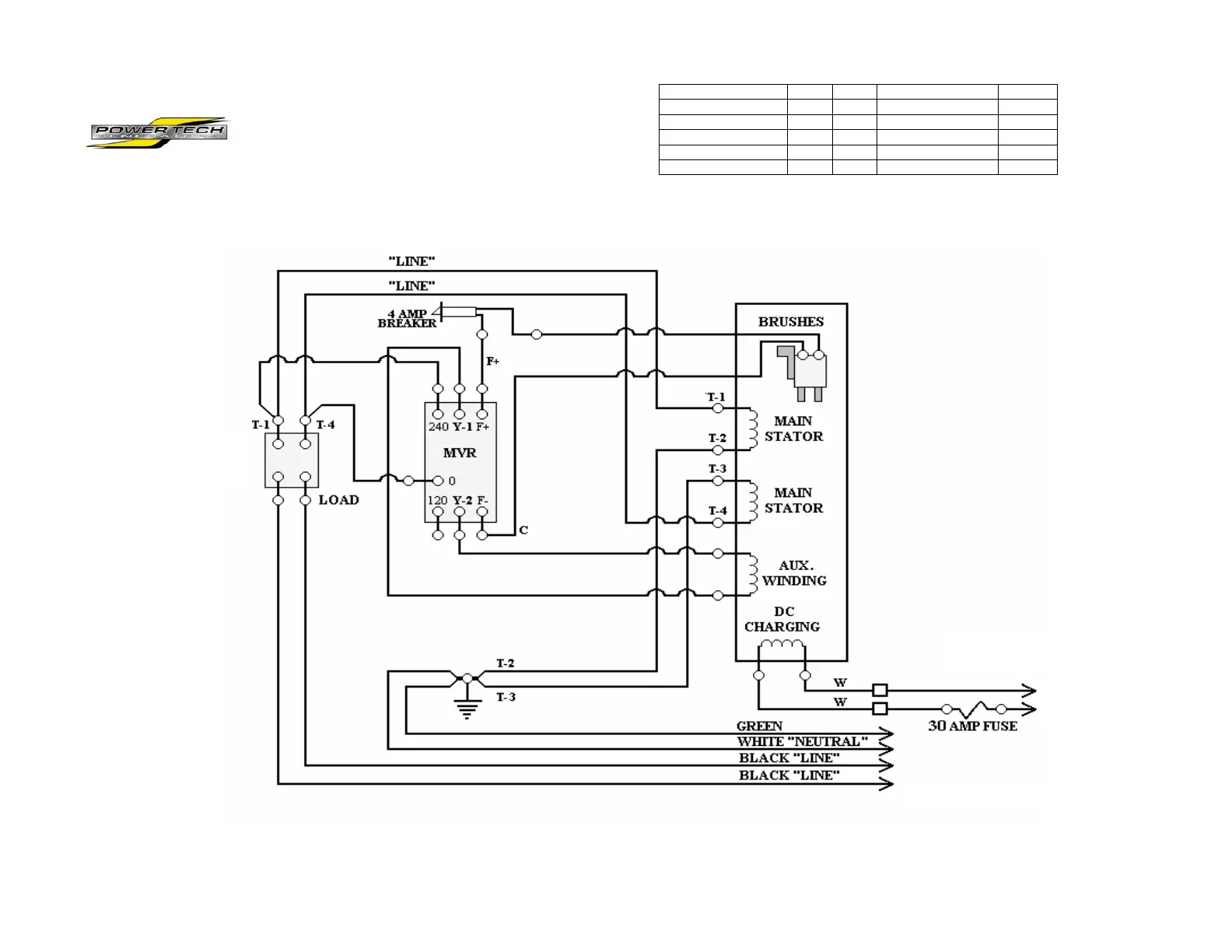

AC ELECTRICAL CIRCUIT FOR PTRV-10–12KSI “MB” GENERATORS 120 VOLTS LINE TO NEUTRAL 240 VOLTS LINE TO LINE
GENERATOR OUTPUT LEADS
OPTIONAL 12V
CHARGING RECTIFIER
2 POLE CIRCUIT BREAKER
45 AMP for 10 KW
9
