MAIN FEATURES
• Full Range AC Power Supply (100 – 230V).
• Embedded 433.92MHz digital radio frequency receiver.
• Encrypted and detachable EEPROM memory for 󰍰orage of 256 remote controls
and control board programming.
• Analog limit switch, Digital Encoder or Hybrid sy󰍰em.
• All programming and settings of the control board are carried out by using TACT-
LED technology or PROG (programmer).
• Automatic 󰍰orage of ‘O/C’ (Opening/Closing) travel time (analog sy󰍰em) or po-
sition by encoder (digital / hybrid sy󰍰em).
• Output ports for lock and courtesy light modules.
• Input ports for loose RF receiver, pushbutton, closing and opening photocells.
• Digital impact sensing with reversion of the gate.
• ‘Pede󰍰rian’ function (remote control and external pushbutton).
• Limit switches and pushbutton input ports, configurable as NO (normally open)
or NC (normally closed).
• The input of the opening and closing photocells is configurable as either NO
(normally open) or NC (normally closed) contacts, pulse output or analog output
(edge sensor).

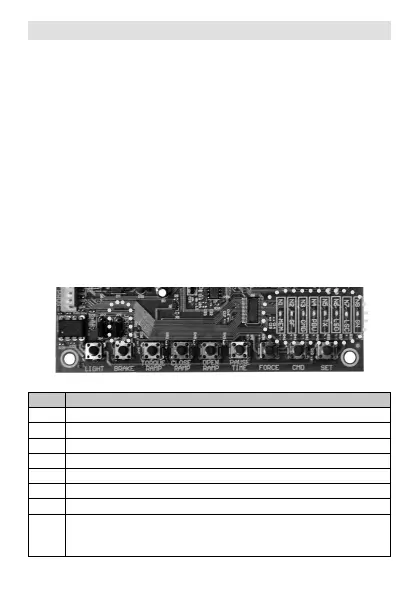

CHART: LED INDICATIONS
Guide for the functions of the indicator LEDs on the board, when it is not in program-
ming mode, i.e., ‘JPROG’ jumper open.
LED INDICATION
SN • Flashes every 7 seconds: Control board switched on and operational.
LSC • Lit: Closing limit switch sensor activated.
LSO • Lit: Opening limit switch sensor activated.
TX • Lit: Command by regi󰍰ered control remote.
PBU • Lit: Command by external pushbutton.
CMD • Lit: Command by loose receiver or by the tacled 'CMD' button.
SF • Lit: Closing photocell blocked.
MEM
• Lit: Empty memory, without remote controls regi󰍰ered.
• O: Memory with regi󰍰er of remote controls.
• Flashing: Memory missing or defective. In this case, the control board
will enter BASIC OPERATION MODE.
