User Manual
ScanLog 96 Pen Drive Version
31

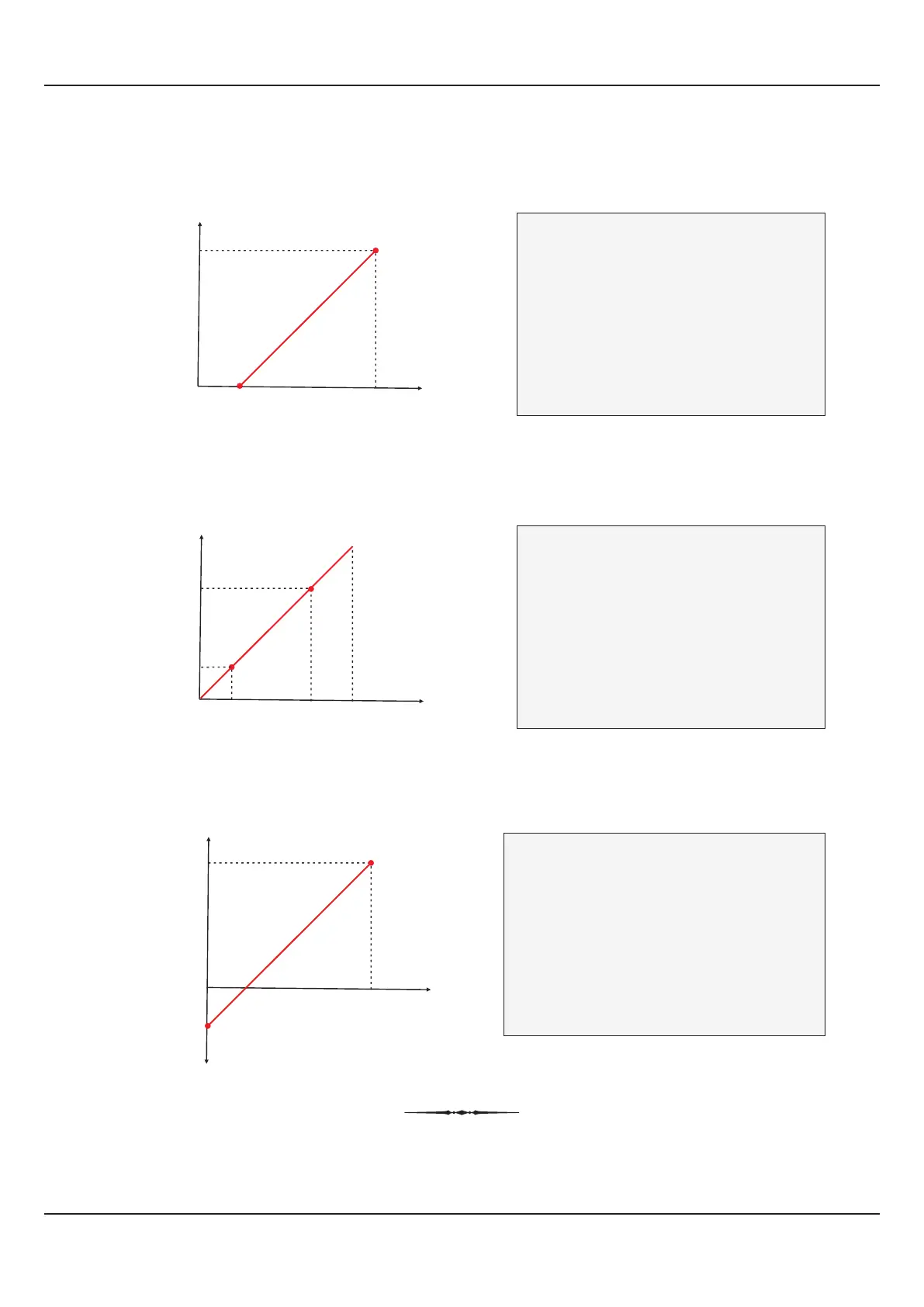

The following examples illustrate appropriate parameter value selections.
Example 1: Pressure Transmitter producing for 4 to 20 mA 0 to 5 psi
Example 2: Relative Humidity Transmitter producing for 1 to 4.5 V 5 to 95 %RH
Example 3: Temperature Transmitter producing for 0 to 20 mA -50 to 250 °C
Presume the Temperature is to be measured
with 0.1 Resolution, that is -50.0 to 250.0°C.
Input Type : 0-20 mA
Signal Low : 0.00 mA
Signal High : 20.00 mA
PV Resolution : 0.1
Range Low : -50.0
Range High : 250.0
X (mA)
Y (psi)
4.00 20.00
Signal Low Signal High
0.00
Range Low
5.00
Range High
Presume the pressure is to be measured
with 0.01 Resolution, that is 0.00 to 5.00 psi.
Input Type : 4-20 mA
Signal Low : 4.00 mA
Signal High : 20.00 mA
PV Resolution : 0.01
Range Low : 0.00
Range High : 5.00
X (V)
Y (% RH)
0 5
Signal Low Signal High
0
95.0
1.000 4.500
5.0
Range Low
Range High
Presume the humidity is to be measured
with 0.1 Resolution, that is 0.0 to 100.0 %.
Input Type : 0-5 V
Signal Low : 1.000 V
Signal High : 4.500 V
PV Resolution : 0.1
Range Low : 5.0
Range High : 95.0
X (mA)
Y (°C)
Signal Low
Signal High
250.0
0.00
20.00
-50.0
Range Low
Range High
