PR RACING SB401 - Front Central Transmission Setup

07

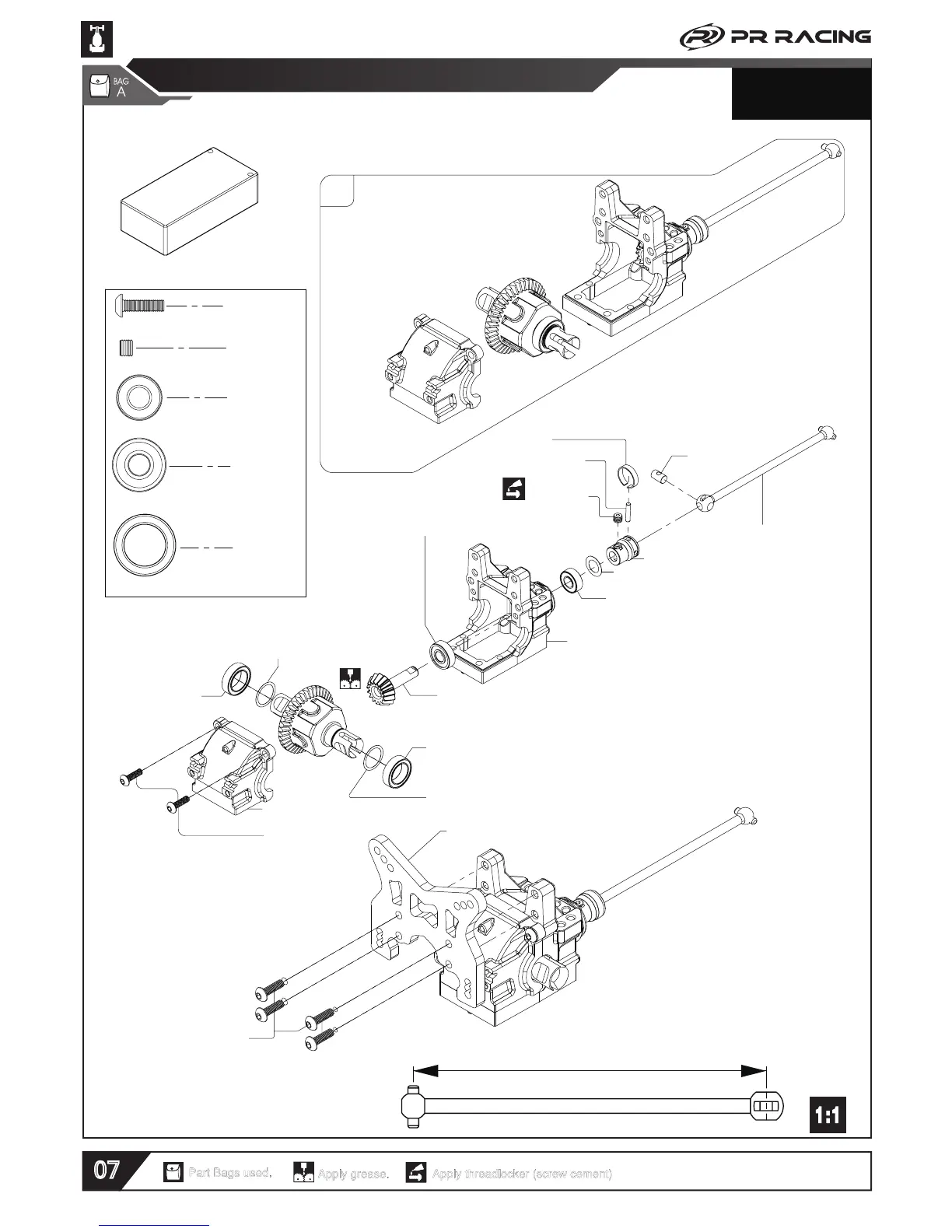

Front Central Transmission
A
66401096
68480066
M3X10mm
80000010
66400786
10x15x4mm Ball Bearing
68480336
68480366(81mm)
68480576(15T)
66400776
5x13x4mm Ball Bearing
68480066
79400066(9.8mm)
86480016
M4X3mm
68480326
01480016
5x11x4mm Ball Bearing
66400786
10x15x4mm Ball Bearing
10X12.5X0.1
85440230
Please add it or not
according to the loose-tight.
10X12.5X0.1
85440230
Please add it or not
according to the loose-tight.
68480086
M3X10mm
80000010
1
5x11x4mm Ball Bearing
1
5x13x4mm Ball Bearing
2
10x15x4mm Ball Bearing
M4X3mm Set Screw
1
M3X10 Button Head Hex Screw
6
Shortly Battery
↙
Front
組裝時請注意齒輪方向
！
5X8X0.1
85440110
Front
Please notice the
direction of gear.



依據鬆緊，請加它或不加它。
依據鬆緊，請加它或不加它。
81mm
