PR RACING SB401 - Page 15

A4
08

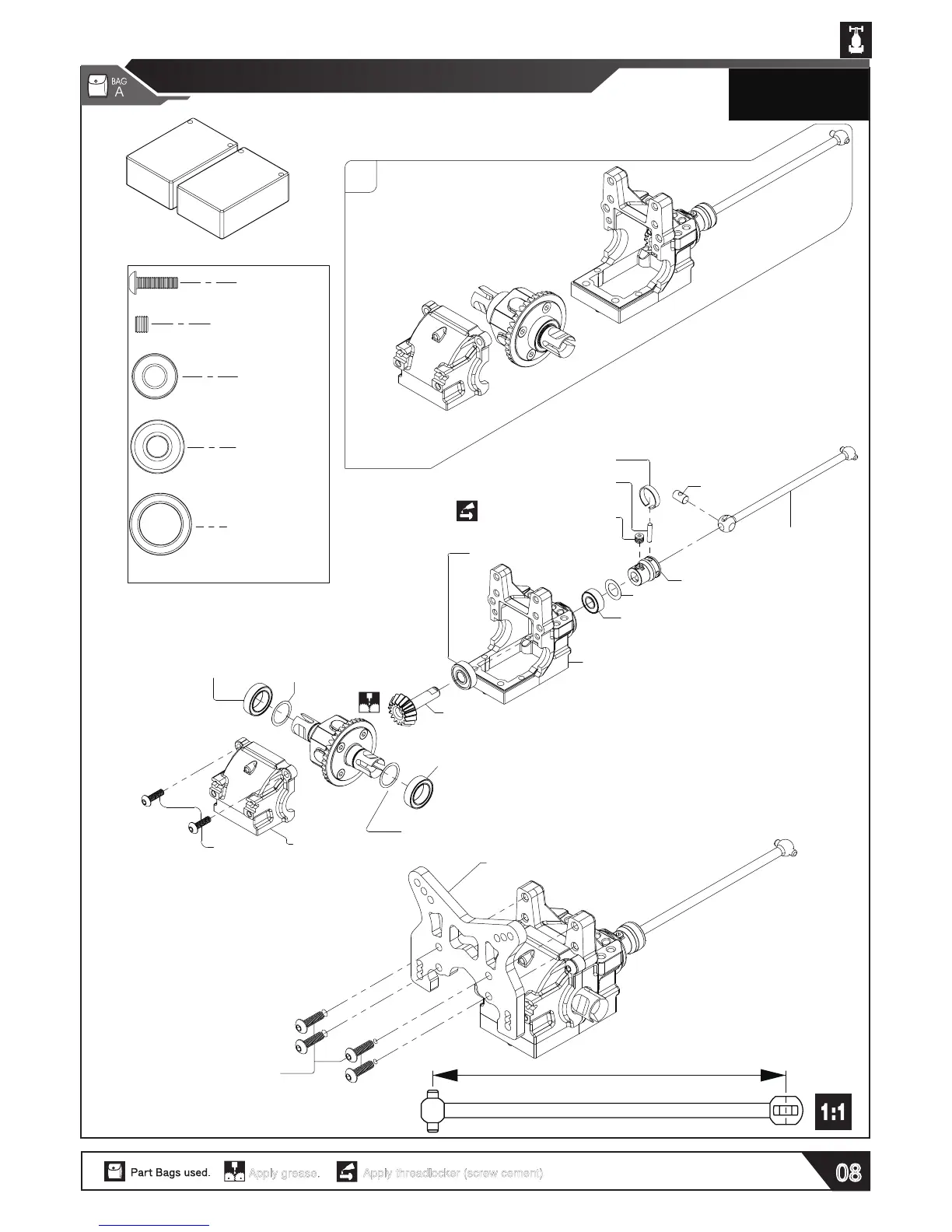

Front Central Transmission
A4


68480086
M3X10mm
80000010
68480326
01480016
5x11x4mm Ball Bearing
86480016
M4X3mm Set Screw
66401096
68480336
79400066(9.8mm)
66400776
5x13x4mm Ball Bearing
68480066
68480366(81mm)
66400786
10x15x4mm Ball Bearing
68480576(15T)
66400786
10x15x4mm Ball Bearing
68480066
M3X10mm
80000010
10X12.5X0.1
85440230
Please add it or not
according to the loose-tight.
10X12.5X0.1
85440230
Please add it or not
according to the loose-tight.
Saddle Battery
↙
Front
組裝時請注意齒輪方向
！
1
5x11x4mm Ball Bearing
1
5x13x4mm Ball Bearing
2
10x15x4mm Ball Bearing
M4X3mm Set Screw
1
M3X10 Button Head Hex Screw
6
依據鬆緊，請加它或不加它。
Please notice the
direction of gear.
Front
PR SB401
81mm
依據鬆緊，請加它或不加它。
5X8X0.1
85440110
