Praxair SELECT-400 - Page 35

DIAGRAMS AND VOLTAGE CHANGE
VOLTAGE CHANGE

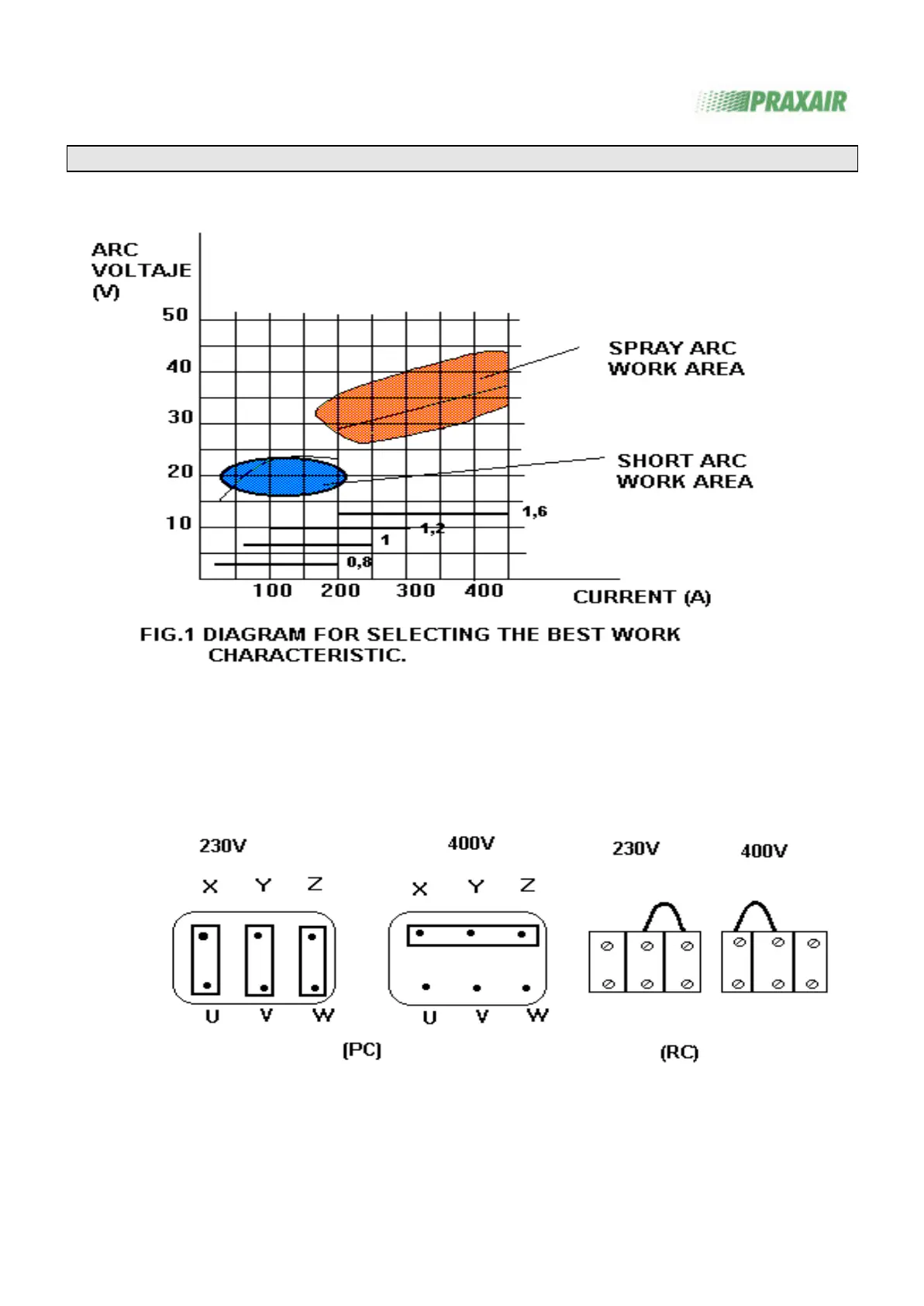

The SELECT-400/600 unit leaves the factory connected for 400VAC. To change the voltage to 230VAC, the bridges must be
changed on connector plate (PC) and on the connector strip (RC) as shown in the following diagram:
