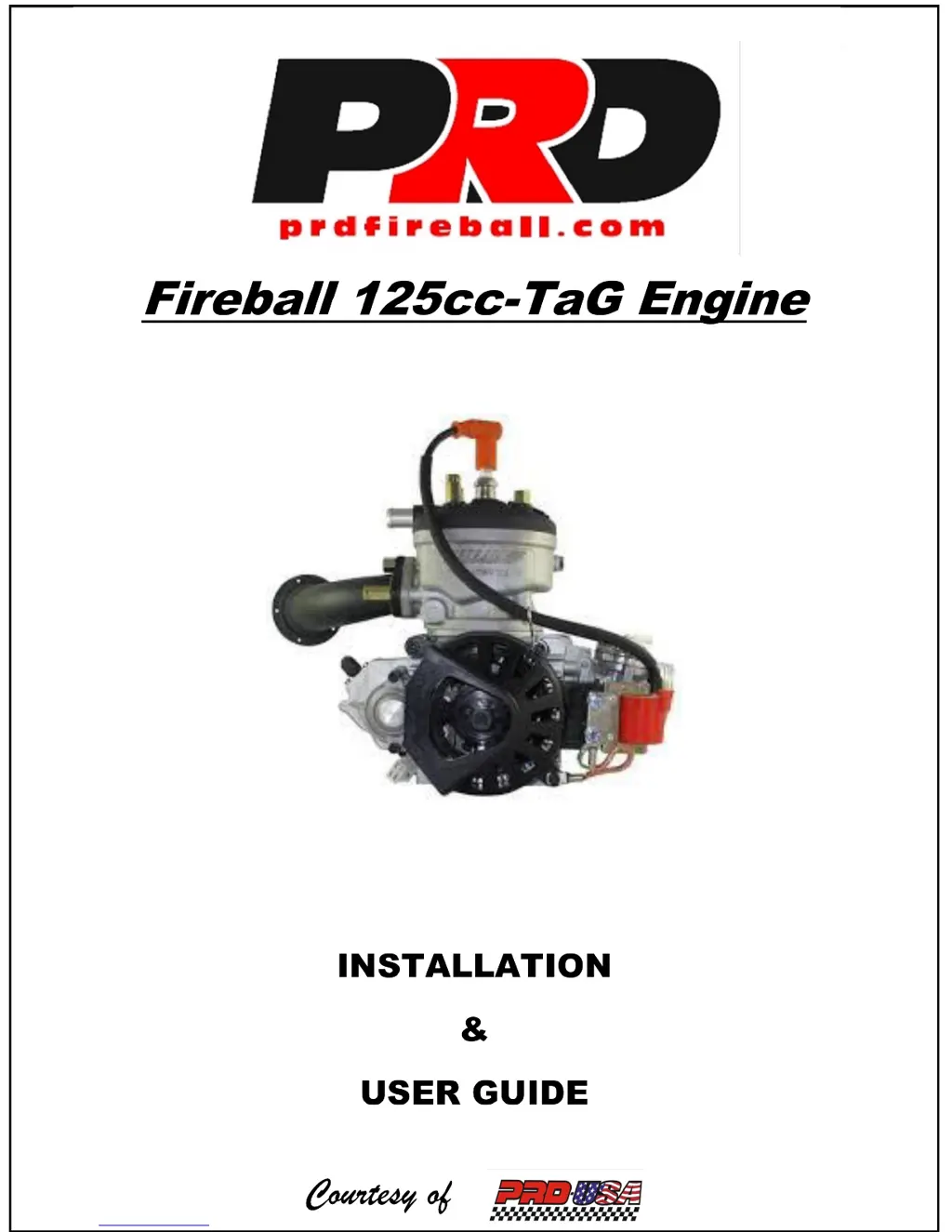

PRD Fireball 125cc-TaG - User Manual

Default Icon
53 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...
Courtesy of

Questions and Answers

  • T
    Thomas ColemanJul 31, 2025
    Why PRD Engine turns over but will not start?
    • M
      Martin LinAug 1, 2025
      If the PRD Engine turns over but doesn't start, it could be due to several reasons. A bad spark plug may be the culprit, so try replacing it. Another possible cause is no fuel reaching the carburetor; in this case, inspect the fuel line for any blockages and consider rebuilding the carburetor. Additionally, a faulty high tension coil or a failed CDI box could be the reason. Check their connections or replace them as needed.
  • D
    Donald ChangAug 5, 2025
    What to do if PRD Engine will not turn over?
    • A
      Alex ParsonsAug 5, 2025
      If the PRD Engine won't turn over, the issue might stem from a dead or low battery. Check the connections and either charge or replace the battery. A bad ground wire could also be the cause; inspect the connection and tighten it. Other potential reasons include a failed starter button (replace or check with a tester), a failed starter (rebuild it), or a failed relay (replace the relay).
  • N
    Nicholas HarperAug 9, 2025
    How to fix PRD Engine that will not stay running?
    • L
      Larry HicksAug 9, 2025
      If your PRD Engine won't stay running, it might be caused by a loose ground wire on the starter. Check the connection or replace the eyelet connector. Alternatively, a failing CDI box could be the issue, so consider replacing it. Another possible cause is a loose electrical connection; therefore, check all connections to ensure they are secure.
  • L
    leslie09Aug 13, 2025
    How to resolve high water temperature in PRD Engine?
    • M
      Michael JohnsonAug 13, 2025
      If the PRD Engine is experiencing high water temperature, start by checking if there is water in the radiator and add water if necessary. A bad water pump could also be the cause, requiring a replacement. Also, check if the water pump belts are off and reinstall them if needed.
  • A
    Anthony BuckleyAug 17, 2025
    What causes PRD Fireball 125cc-TaG to lack performance?
    • D
      David RuizAug 17, 2025
      If the PRD Engine lacks performance, it could be due to a worn piston resulting in low compression, in which case you should replace the piston. Another possible cause is the carburetor being out of adjustment, so check the settings.
  • R
    Rhonda EvansAug 22, 2025
    Why PRD Engine exhaust is unusually loud?
    • R
      Roger WalkerAug 22, 2025
      An unusually loud exhaust in the PRD Engine can be attributed to a few reasons. Missing springs between the header and exhaust could be the cause, so replace any missing springs. Alternatively, a broken header might be the issue, which would require welding or replacement. Lastly, a bad or broken end cap can also lead to loud exhaust, so replace the end cap if necessary.
  • C
    Colleen LongAug 27, 2025
    What to do if PRD Engine clutch rattles or locks up?
    • C
      Christy GibsonAug 27, 2025
      If the PRD Engine clutch rattles or locks up, it is likely due to a cracked or broken shoe, which means you should replace the clutch center.

Summary

General Engine Specifications

Installation Instructions

Water Cooling System Installation

Step-by-step guide for installing the water cooling system.

Header Installation

Instructions for mounting the exhaust header to the engine.

Engine Mount Preparation

Steps for preparing the engine mount on the chassis.

Carburetor Installation

Detailed steps for installing the carburetor.

Electrical System Installation

Steps for connecting the engine's electrical components.

Airbox and Exhaust Installation

Steps for installing the airbox and exhaust system.

Carburetor Specifications

Engine Break In Procedure

Maximum RPM

Clutch Assembly & Maintenance

Gear Ratio

General Maintenance Schedule

Recommended Engine Maintenance Schedule

Troubleshooting

Engine Tightening Torque Settings

PRD Fireball 125cc-TaG Specifications

General IconGeneral
BrandPRD
ModelFireball 125cc-TaG
CategoryEngine
LanguageEnglish
