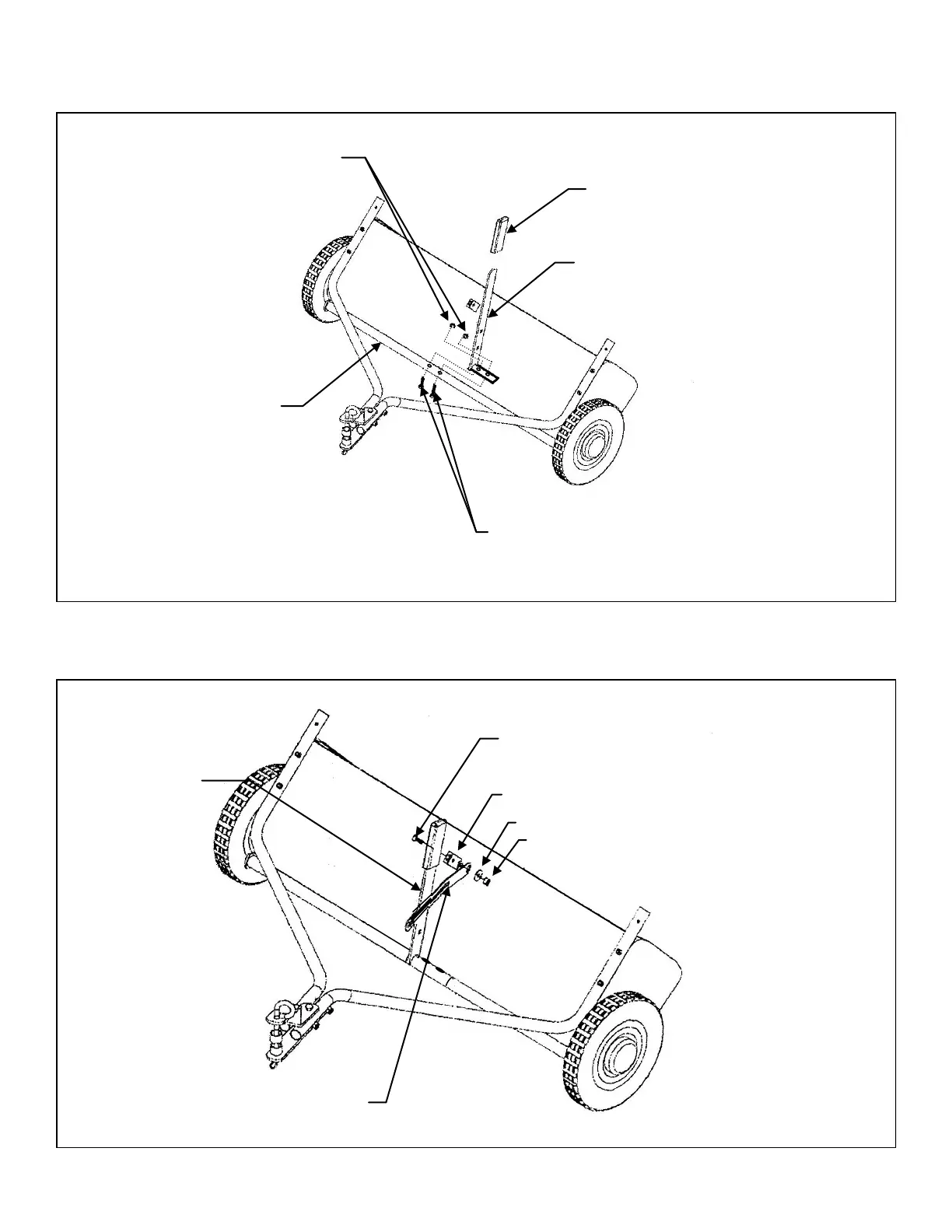

6. Attach the Height Adjustment Handle to the Height Adjustment Tube, using two M8x40 Hex Head Bolts
and two M8 Nylock Nuts. Do not tighten yet. See Figure 6.
7. (Pre-Assembled At Factory) Insert a M8x20 Hex Head Bolt through Angle Bracket into the Height Ad-
justment Strap, attach the Flat Washer and secure with a M8 Nylock Nut. See Figure 7.
M8x20 Hex Head Bolt
Angle Bracket
Flat Washer
M8 Nylock
Nut
Height Adjustment
Strap
Height Adjust-
ment Handle
Figure 6
M8 x 40 Hex
Head Bolt
Height Adjust-
ment Tube
Height Adjustment
Handle
Handle Grip
M8 Nylock Nuts
Figure 7
Pre-Assembled At Factory
