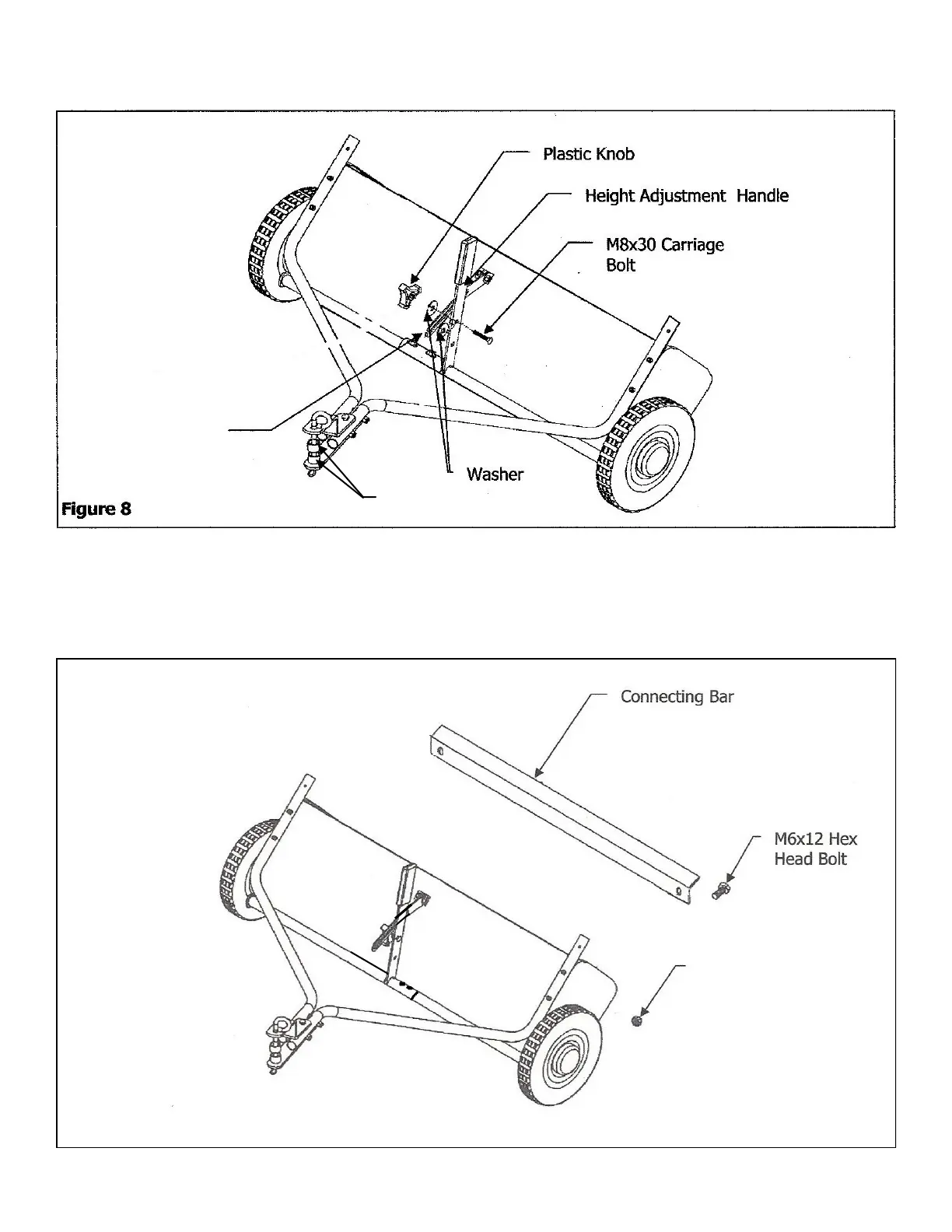

8. Insert a M8x30 Carriage Bolt into the Height Adjustment Handle, into a Washer, into the Height Adjust-
ment Strap, place another Washer onto the Bolt and secure with the Plastic Knob. See Figure 8.
9. (Pre-Assembled At Factory) Assemble the Connecting Bar to the Sweeper Housing by using two M6x12
Hex Head Bolts and secure with two M6 Nylock Nuts.
Figure 9
M6 Nylock Nut
Height Adjust-
ment Strap
Hitch Spacers
Pre-Assembled At Factory
To Next Page
