Ram to Fixed Height Anvil Holder Alignment

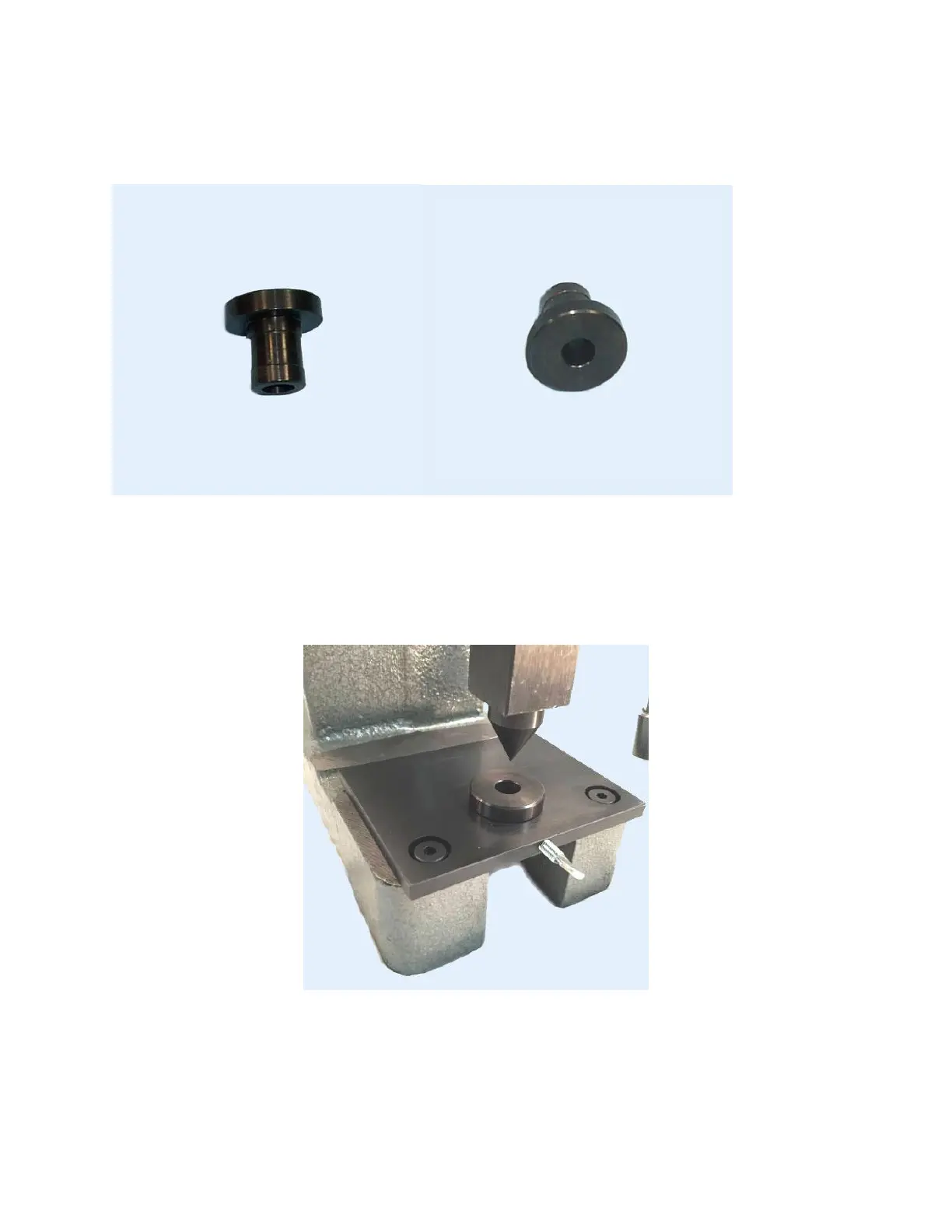

A fixed height anvil holder STX-360-39 shown immediately below is included with the
STX-360-80, 11 piece Anvil Set. Additionally, the STX-360-40 fixed height clincher anvil
(not shown) will use the same alignment procedure.
To align this anvil holder, place it into the base plate. Lightly tighten the thumbscrew to
remove any movement of the anvil holder in the hole in the base plate. See figure 10
Note: Make sure the base plate caps screws have been loosened.
Figure 10 – Fixed Anvil Holder STX-360-39 inserted in base plate
Use the tapered alignment tool to come down into the 3/8” hole of the anvil holder.
While applying light pressure on the ram, once center is established, tighten the base
plate to secure the position.
