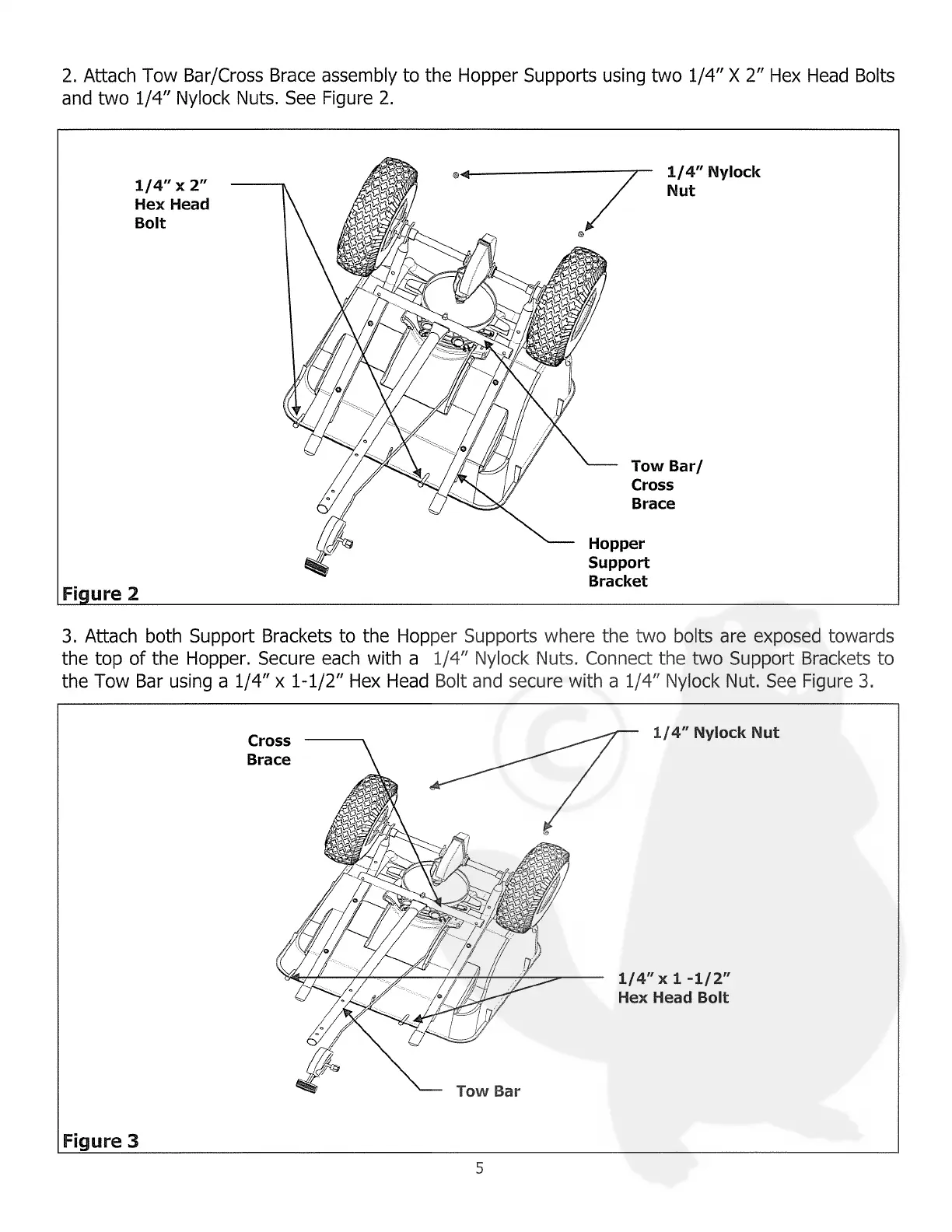

2. Attach Tow Bar/Cross Brace assembly to the Hopper Supports using
and two 1/4” Nylock Nuts. See Figure 2.
two 1/4” X 2” Hex Head Bolts
3. Attach both Support Brackets to the Hopper Supports where the two boits are exposed towards
the top of the Hopper. Secure each with a 1/4” Nylock Nuts. Connect the two Support Brackets to
the Tow Bar using a 1/4” x 1-1/2” Hex Head Bolt and secure with a 1/4” Nylock Nut. See Figure 3.
1/4” x 2”
Hex Head
Bolt
1/4” Nylock
Nut
Tow Bar!
Cross
Brace
Figure 2
Cross
Brace
1/4” Nylock Nut
1/4” x 1 -1/2”
Hex Head Bolt
Hgure 3
Tow Bar
