Precor GluteBuilder GPL551/DLE - Page 10

10

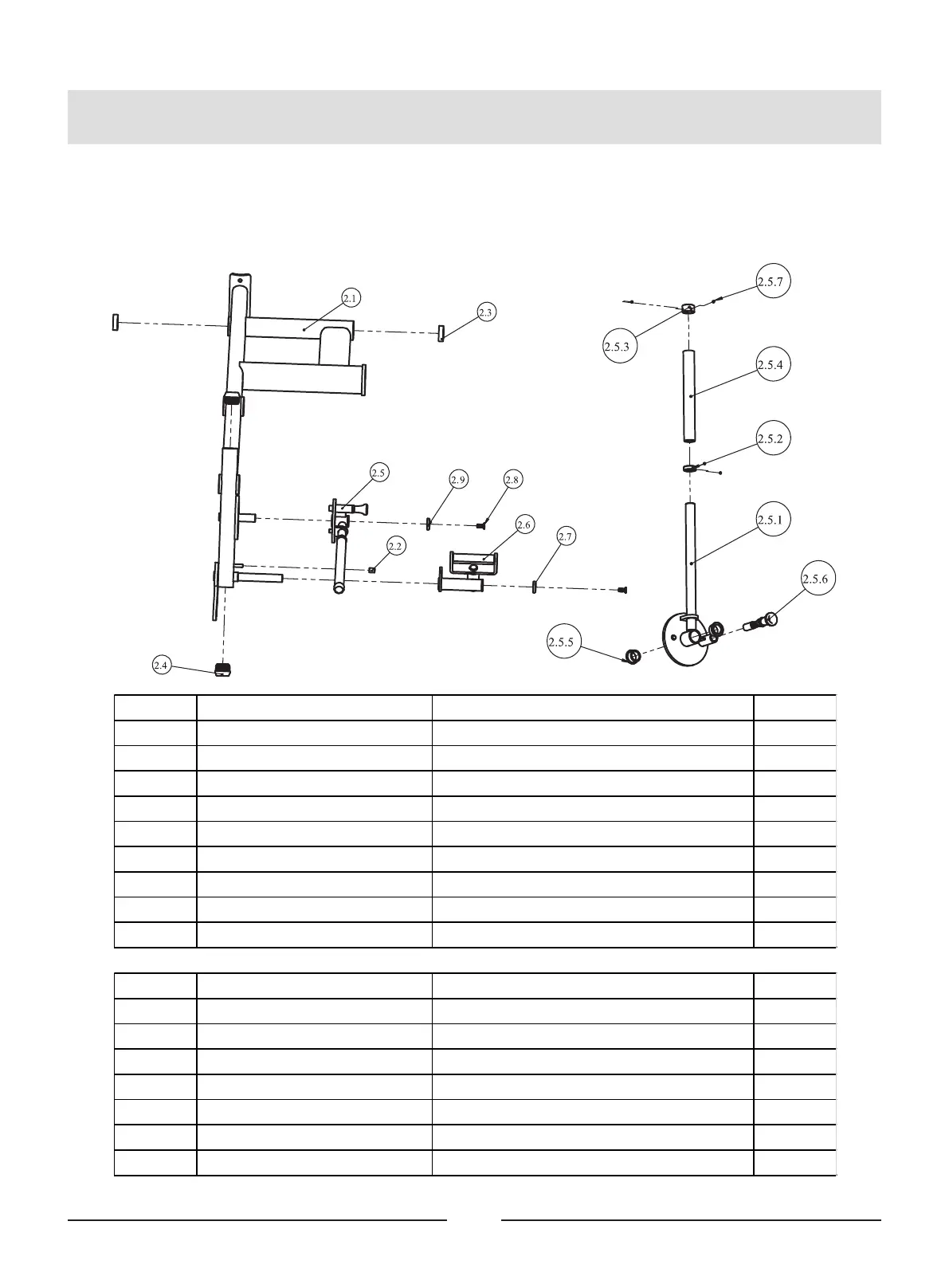

Exploded View and Parts List
Long Handle
Frame I ASSY
Movable Support
Frame I ASSY
Item No. Part No. Description QTY
2.1 DLE0400
Movable Support Frame Ⅰ 1
2.2 C015PL2300 Limit Sleeve 1
2.3 GB2766205-2ZC3 Bearing 6205-2ZC3 2
2.4 PKB3300 Large Elliptical Pipe Plug R50*100 2
2.5 DLE07ASSY
Long Handle FrameⅠASSY 1
2.6 DLE06ASSY
Short Handle FrameⅠASSY 1
2.7 IN-D21202000V1 Aluminium Cap Φ38 1
2.8 CNLM10*25DY20NL Flat Head Cap ScrewM10*25 2
2.9 IN-D10132300V3 Aluminium Cap Φ43*Φ11*8 1
Item No. Part No. Description QTY
2.5.1 DLE0700 Long Handle Frame 1
2.5.2 V39500V2 Aluminium Grip Ring Φ25.4 1
2.5.3 V39600V2 Aluminum Grip Cap Φ25.4 1
2.5.4 SD1004B1600 Grip 1
2.5.5 M02502000 Bushing Φ25.4 2
2.5.6 DLE26ASSY Plug Pin ASSY 1
2.5.7 YZGB7710-32*3.2DY2 Socket Set Screw 10-32*3.2 4
