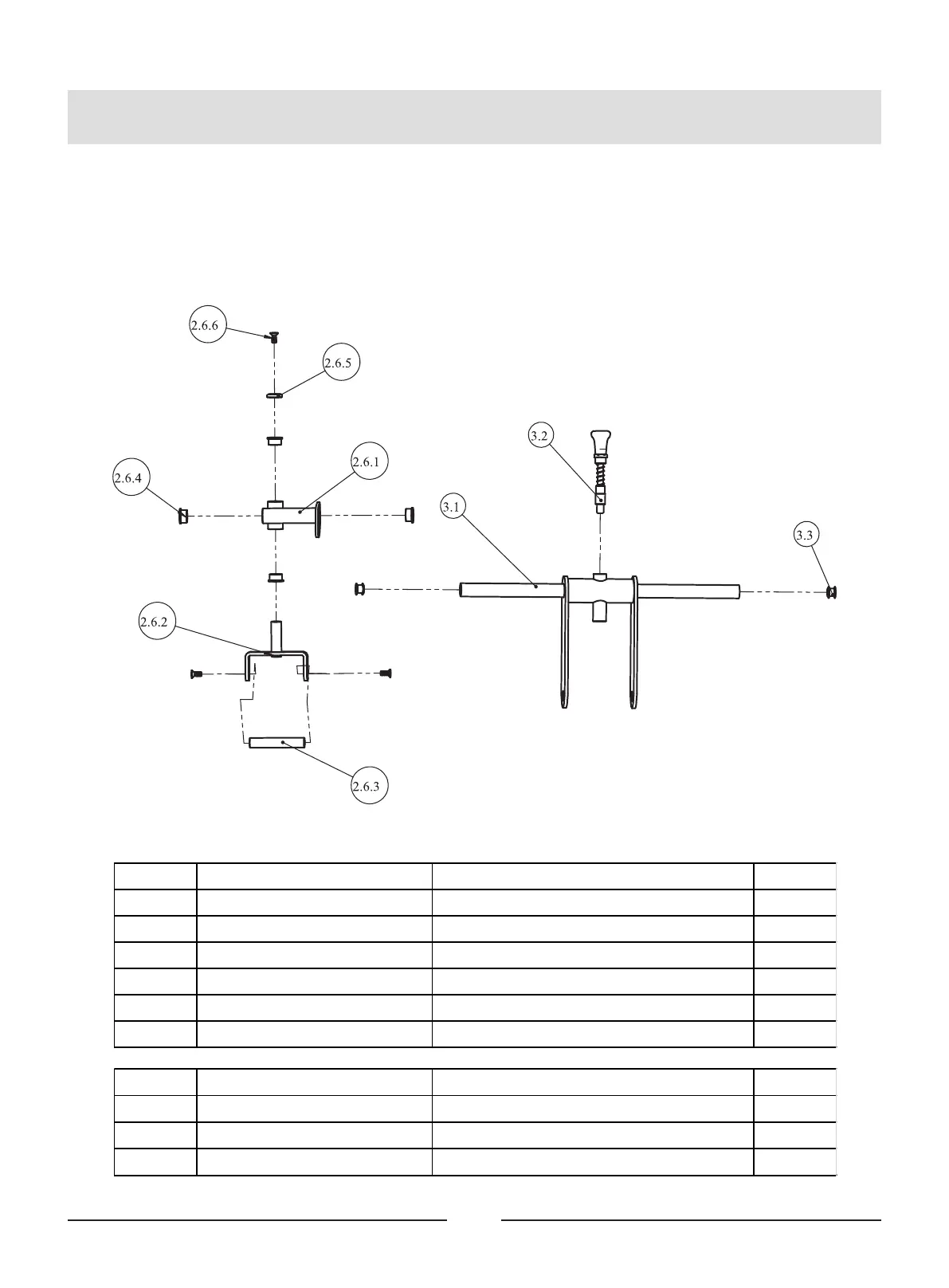

Exploded View and Parts List
Short Handle
Frame I ASSY
Oscillating Support
Frame ASSY
Item No. Part No. Description QTY
2.6.1 DLE0600
Short Handle Retainer FrameⅠ 1
2.6.2 DLE1600
Short Handle FrameⅠ 1
2.6.3 DLE4100 Short Handle Shaft 1
2.6.4 M02502000 Bushing Φ25.4 4
2.6.5 IN-D21202000V1 Aluminium Cap Φ38 1
2.6.6 CNLM10*25DY20NL Flat Head Cap ScrewM10*25 3
Item No. Part No. Description QTY
3.1 DLE0900 Oscillating Support Frame 1
3.2 DLE16ASSY Spring Pin ASSY 1
3.3 IF81165000 Lock Nut M10 2
