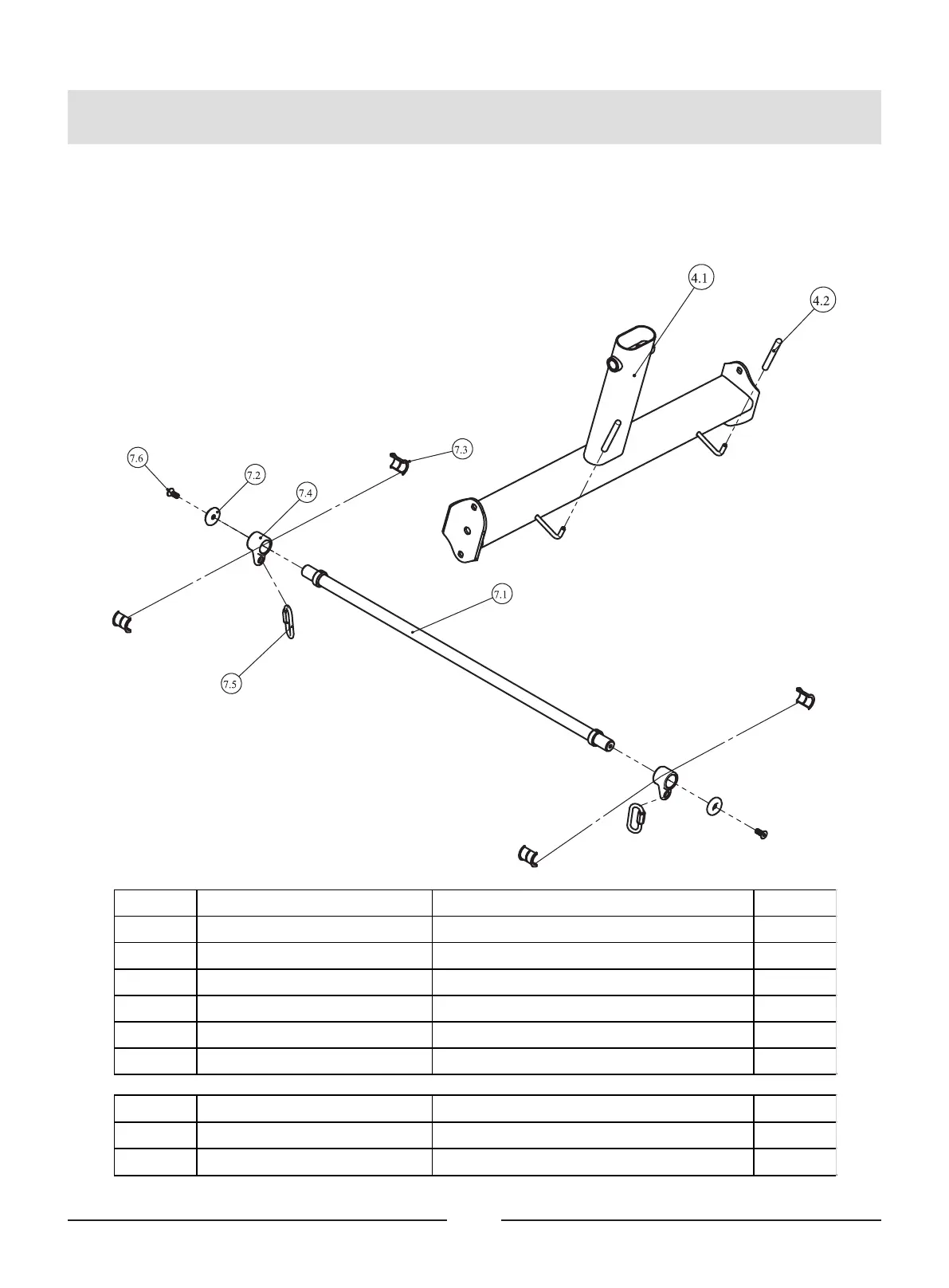

Exploded View and Parts List
Upper Connection Bracket
Frame ASSY
Handle Framet ASSY
Item No. Part No. Description QTY
4.1 DLE1000 Upper Connection Bracket Frame 1
4.2 HF900-03A1700 Glove 2
Item No. Part No. Description QTY
7.1 DLE1400 Handle Frame 1
7.2 DLE4800 Aluminium Cap Φ44 2
7.3 BB-BS1003 Bushing R20.1 8
7.4 AXT21901 Connector 2
7.5 CMJ6101A2710 Quick Connector 2
7.6 CNLM10*25DS20NL Flat Head Cap ScrewM10*25 2
