17

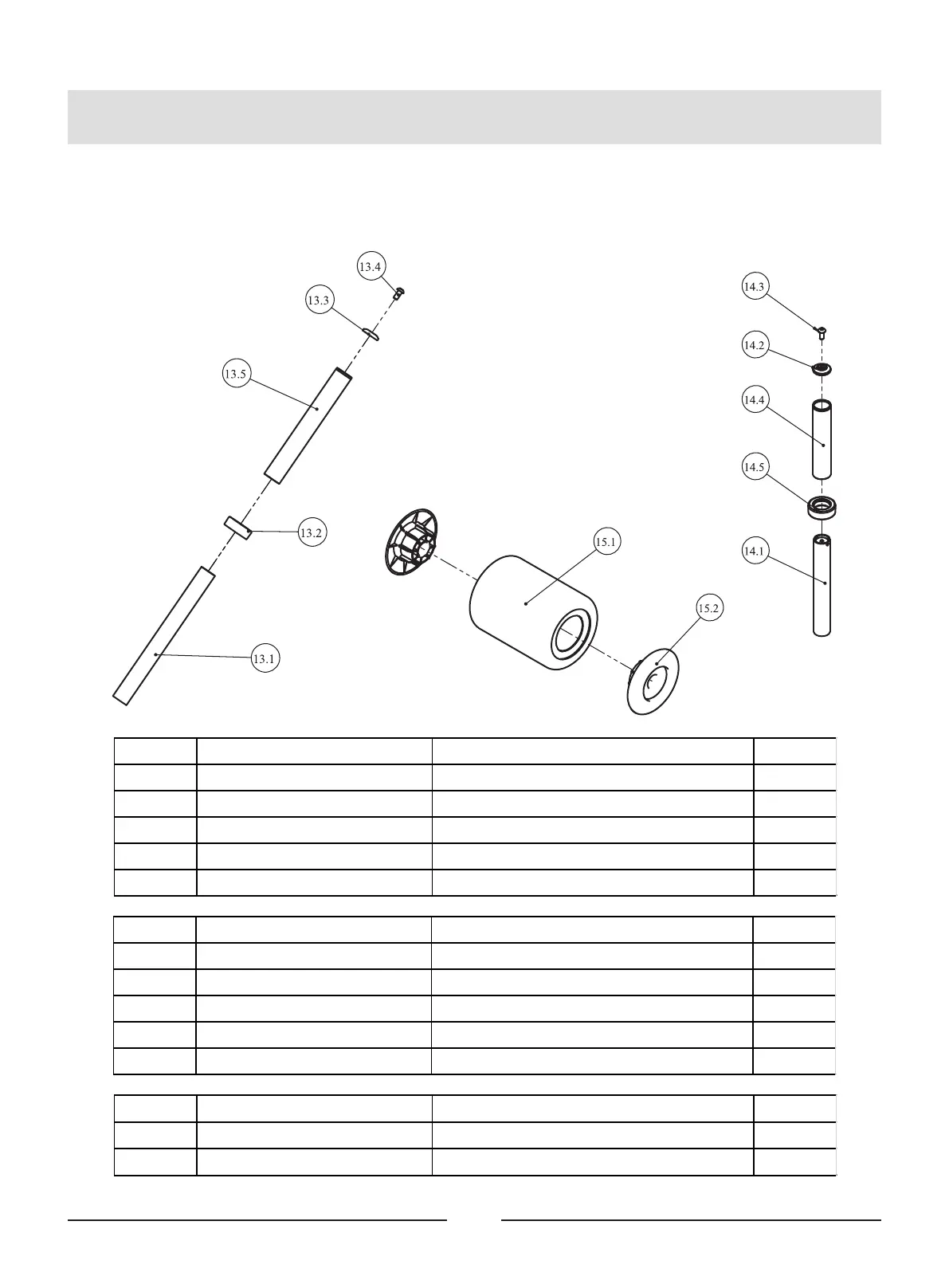

Exploded View and Parts List
Barbell Storage Frame ASSY Barbell Frame ASSY
FOAM ASSY
Item No. Part No. Description QTY
14.1 D45HE1400 Barbell Frame 1
14.2 BB-PL5000V1 Aluminium Cap Φ49*Φ12.5*10 1
14.3 PNLM12*25DY20NL Button Head Cap ScrewM12*25 1
14.4 HZ70022000 Short Barbell Casing 1
14.5 PL1301600 Buffer Pad Φ76*26 1
Item No. Part No. Description QTY
15.1 FE97026300V2 FOAM 1
15.2 IE95026400 Retainer 2
Item No. Part No. Description QTY
13.1 DLE1100 Barbell Storage Frame 1
13.2 PL1301600 Buffer Pad Φ76*26 1
13.3 BB-PL5000V1 Aluminium Cap Φ49*Φ12.5*10 1
13.4 PNLM12*25DY20NL Button Head Cap ScrewM12*25 1
13.5 HTE2400 Long Barbell Casing 1
To Next Page
