Precor GluteBuilder GPL551/DLE - Page 16

16

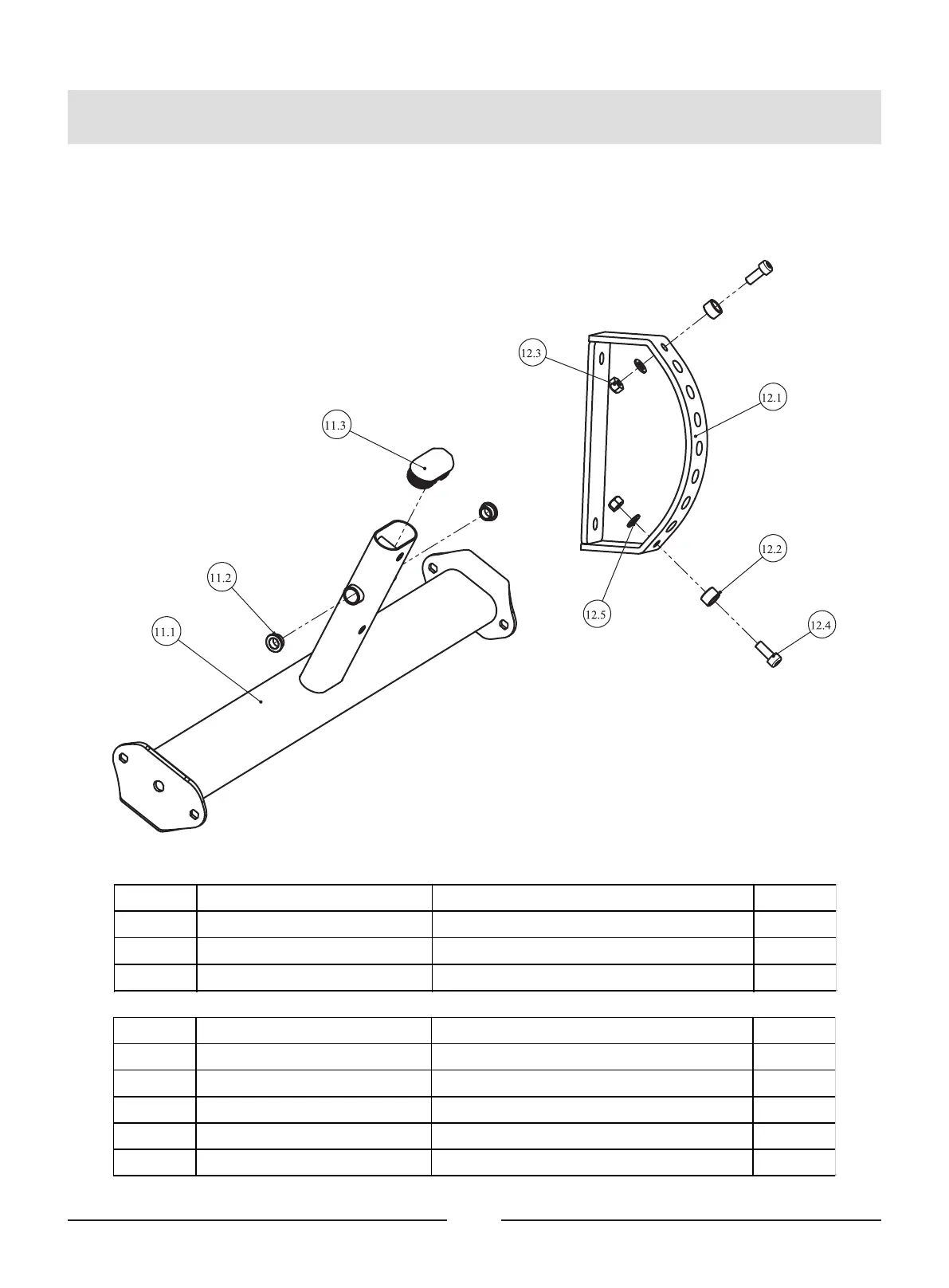

Exploded View and Parts List
Support Frame ASSY Curved Regulating Plate ASSY
Item No. Part No. Description QTY
11.1 DLE0300 Support Frame 1
11.2 HVCORE5300 Bushing Φ19 2
11.3 PKB3300 Large Elliptical Pipe Plug R50*100 1
Item No. Part No. Description QTY
12.1 HSP70512200ZH Curved Regulating Plate 1
12.2 IN-S10111200 Limit Sleeve 2
12.3 NM8DY2 Nylon Lock Nut M8 2
12.4 GB70M8*20DY20 Socket Head Cap Screw M8*20 2
12.5 GB958DY2 Flat Washer Φ9*Φ16*1.6 2
