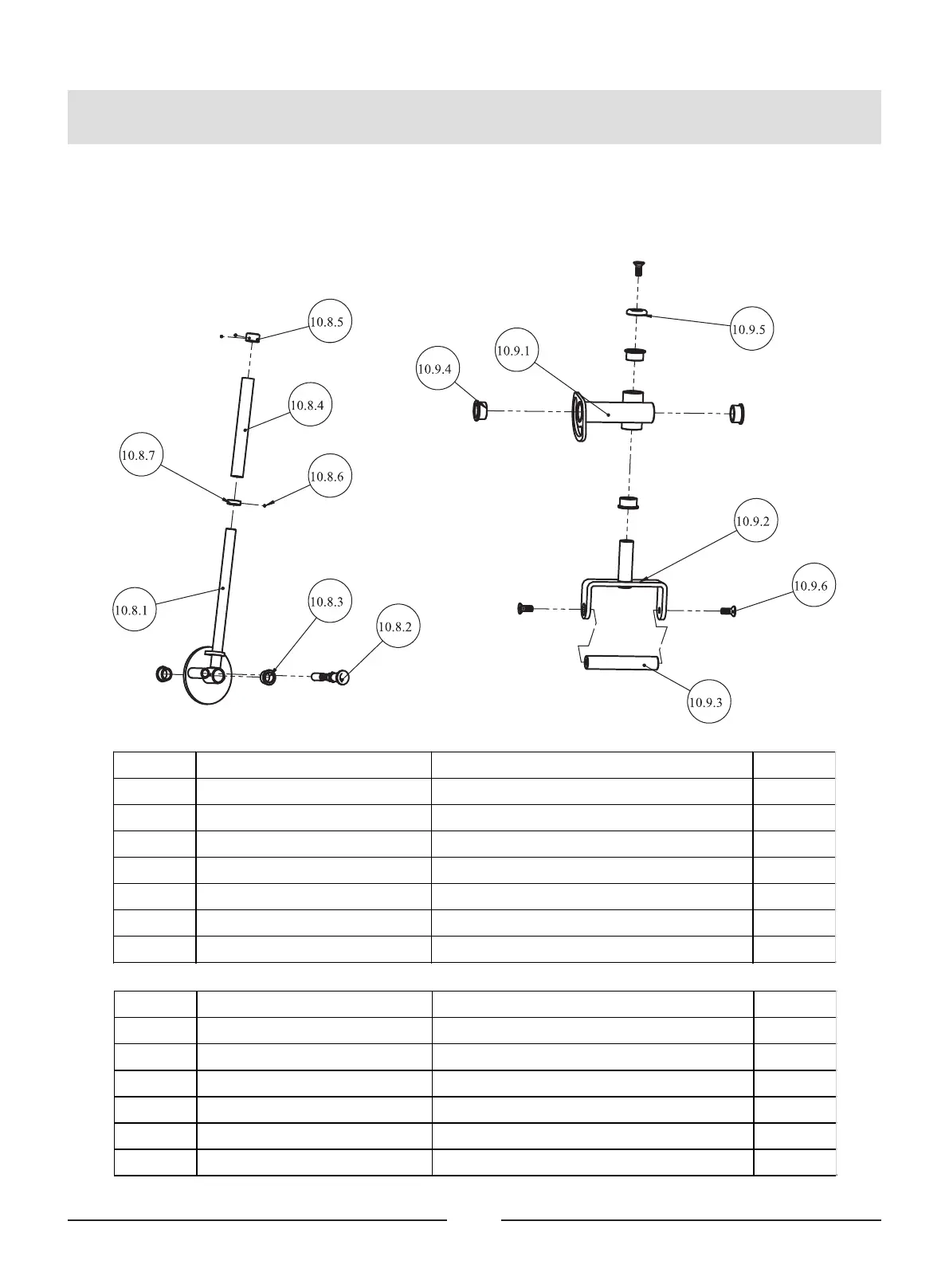

Exploded View and Parts List
Long Handle Frame
II ASSY
Short Handle Frame
II ASSY
Item No. Part No. Description QTY
10.9.1 DLE1200
Short Handle Retainer FrameⅠ 1
10.9.2 DLE1600
Short Handle FrameⅠ 1
10.9.3 DLE4100 Short Handle Shaft 1
10.9.4 M02502000 Bushing Φ25.4 4
10.9.5 IN-D21202000V1 Aluminium Cap Φ38 1
10.9.6 CNLM10*25DY20NL Flat Head Cap ScrewM10*25 3
Item No. Part No. Description QTY
10.8.1 DLE0800
Long Handle FrameⅡ 1
10.8.2 DLE26ASSY Plug Pin ASSY 1
10.8.3 M02502000 Bushing Φ25.4 2
10.8.4 SD1004B1600 Grip 1
10.8.5 V39600V2 Aluminum Grip Cap Φ25.4 1
10.8.6 YZGB7710-32*3.2DY2 Socket Set Screw 10-32*3.2 4
10.8.7 V39500V2 Aluminum Grip Ring Φ25.4 1
