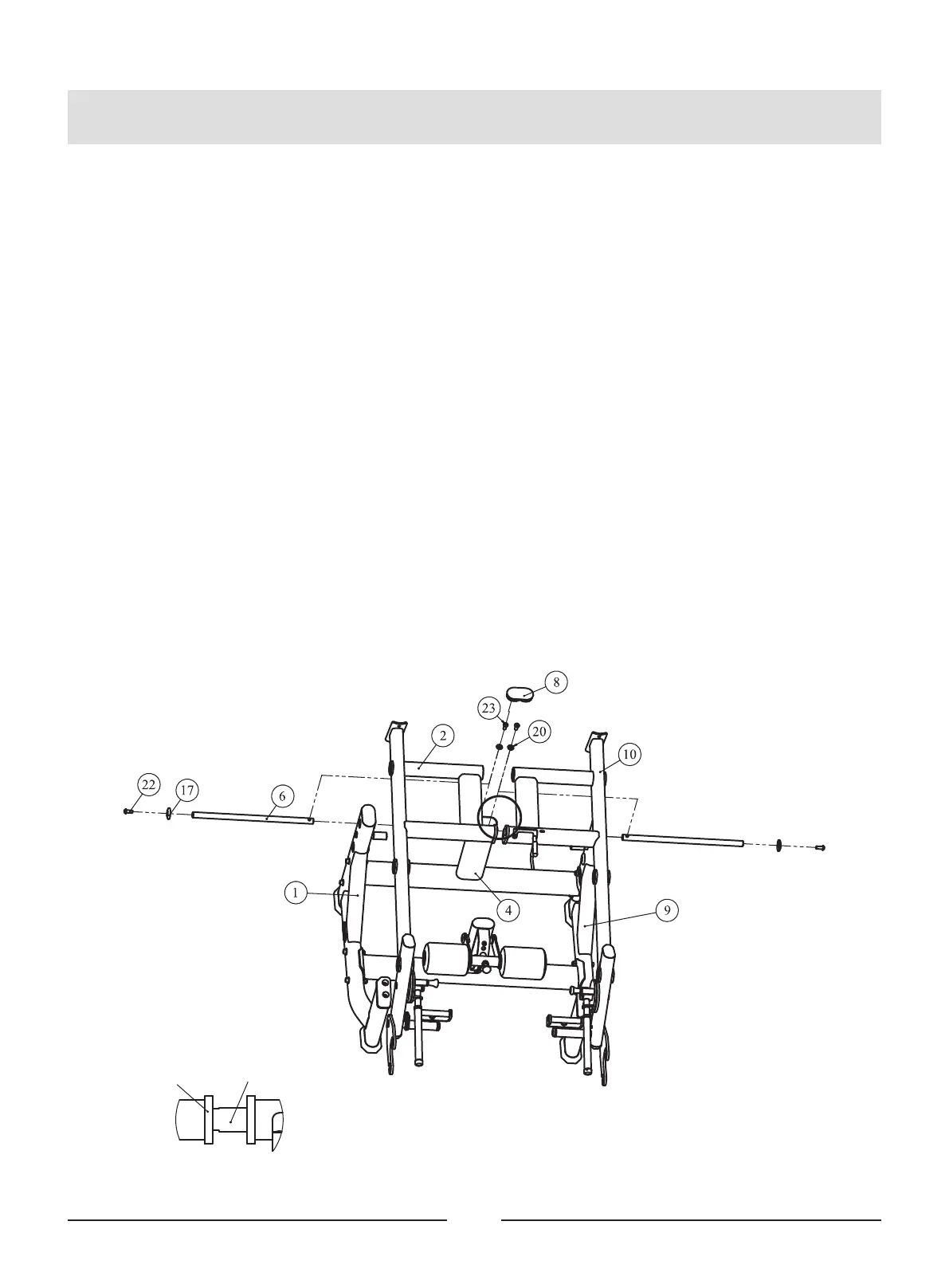

STEP 3
1. Attach one Movable Support Frame I ASSY (#2) to one Frame I ASSY (#1) and one
Upper Connection Bracket Frame ASSY (#4), using:
one Long Axis Of Rotation (#6)
one Φ49 Aluminium Cap (#17)
one M12*25 Button Head Cap Screw (#22)
one M12*35 Button Head Cap Screw (#23)
one Φ13*Φ26*2 Flat Washer (#20)
2. Attach one Movable Support Frame II ASSY (#10) to one Frame II ASSY (#9) and one
Upper Connection Bracket Frame ASSY (#4), using:
one Long Axis Of Rotation (#6)
one Φ49 Aluminium Cap (#17)
one M12*25 Button Head Cap Screw (#22)
one M12*35 Button Head Cap Screw (#23)
one Φ13*Φ26*2 Flat Washer (#20)
Note: Before tighten the bolts, make sure the pin shaft can insert into the pin hole smoothly.
3. Attach one Large Elliptical Pipe Plug R60*120 (#8) to one Upper Connection Bracket
Frame ASSY (#4).
Assembly
22
pin shaft
pin hole
