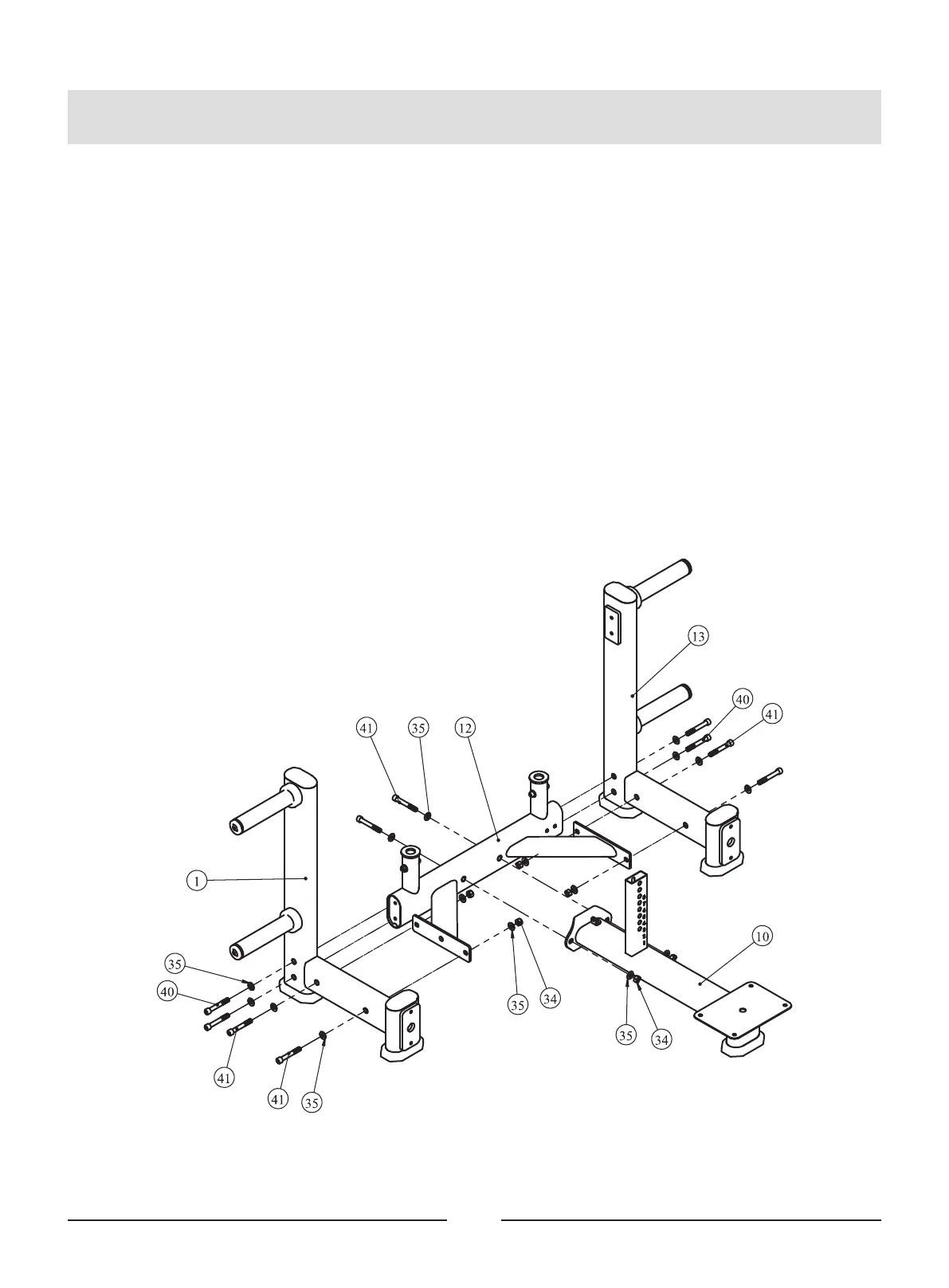

STEP 1
1. Attach the Left Barbell ASSY (#1) and the Right Barbell ASSY (#13) to the Rear
Connecting Frame ASSY (#12) using:
four M12*85 Nylok HHB (#40)
twelve Φ13*Φ26*2 Flat Washer (#35)
four Nylon Lock Nut M12 (#34)
four M12*85 HHB (#41)
2. Attach the Connecting Frame ASSY (#10) to the Rear Connecting Frame ASSY (#12)
using:
two M12*85 HHB (#41)
four Φ13*Φ26*2 Flat Washer (#35)
two Nylon Lock Nut M12 (#34)
Note: Wrench Tighten All Bolts and Nylon Lock Nuts.
Assembly
23
