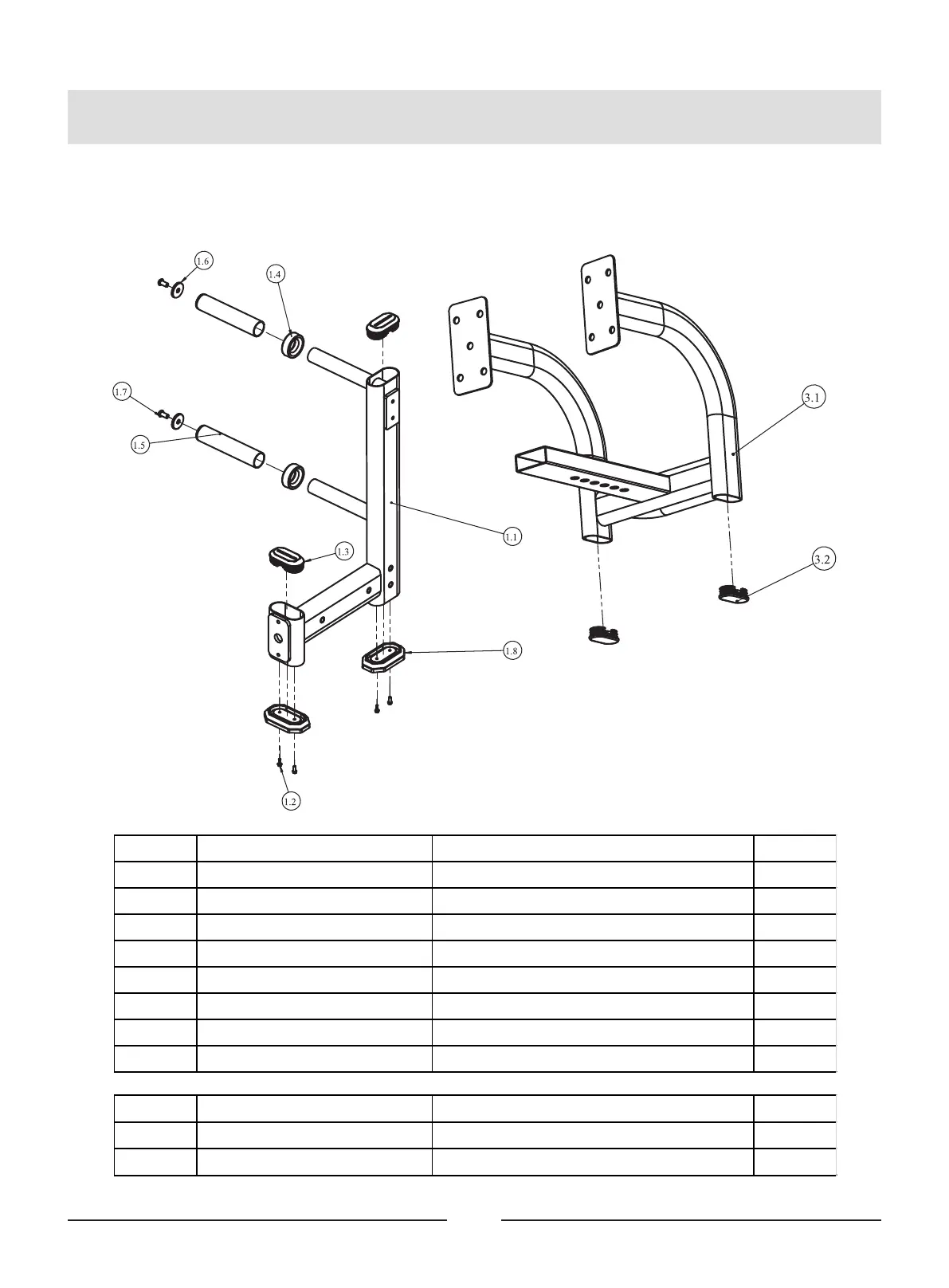

Exploded View and Parts List
Left Barbell ASSY
Shoulder Pad Frame ASSY
Item No. Part No. Description QTY
3.1 HTE0300 Shoulder Pad Frame 1
3.2 FLPSR-2400 Plug RT30*60 2
Item No. Part No. Description QTY
1.1 HTE0100 Left Barbell 1
1.2 YZGB290.25*20*18DS20 Hex Head Cap Screw 1/4*20 4
1.3 PKB3100 Large Elliptical Pipe Plug R60*120 2
1.4 PL1301600 Buffer Pad Φ76*26 2
1.5 HZ70022000 Short Barbell Casing 2
1.6 BB-PL5000V1 Aluminium Cap Φ49*Φ12.5*10 2
1.7 PNLM12*25DY20NL Button Head Cap Screw M12*25 2
1.8 PKB3200 Floor Mat 2
