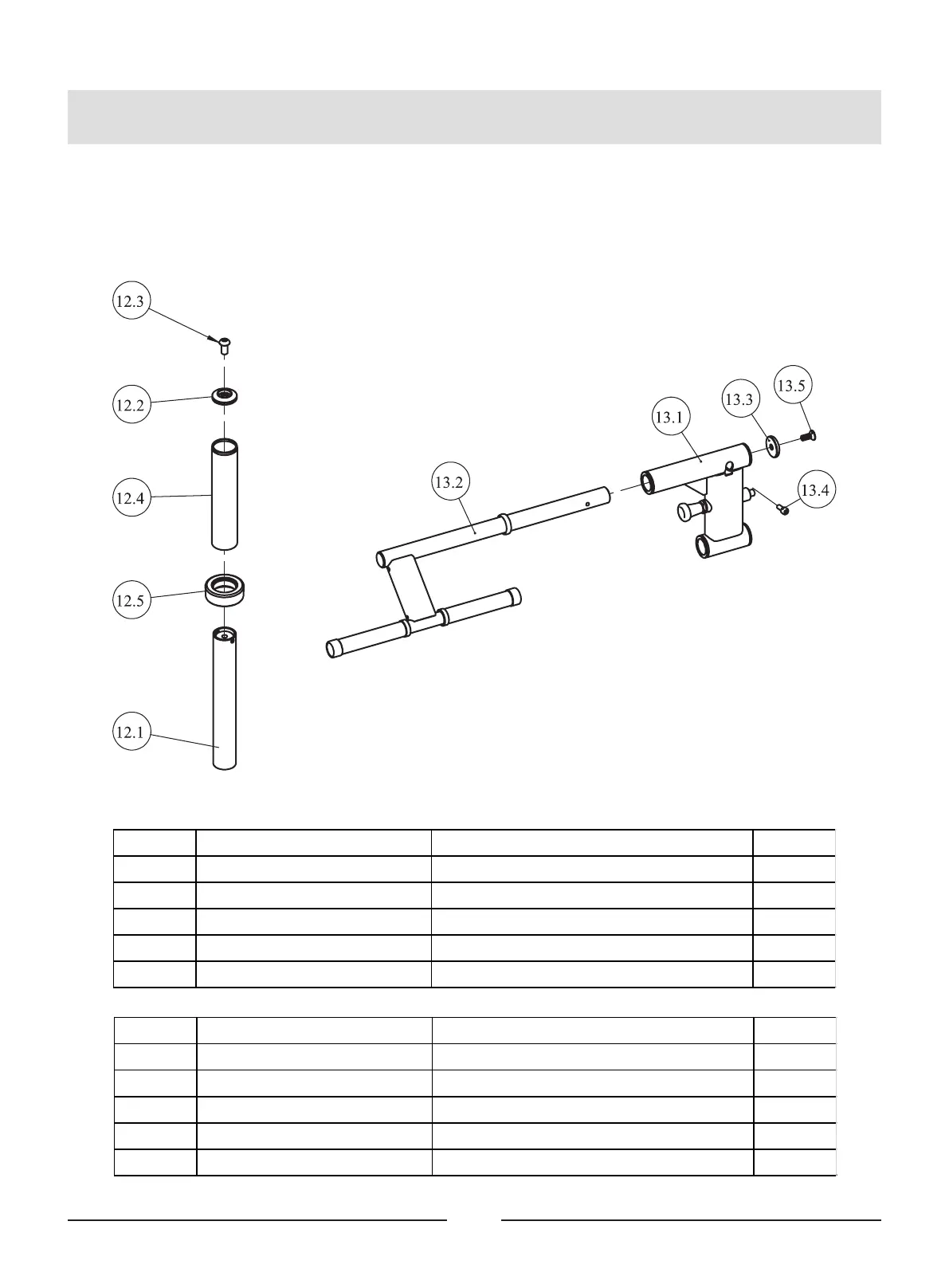

Exploded View and Parts List
Barbell Frame ASSY Pull Handle ASSY
Item No. Part No. Description QTY
12.1 D45HE1400 Barbell Frame 1
12.2 BB-PL5000V1 Aluminium Cap Φ49*Φ12.5*10 1
12.3 PNLM12*25DY20NL Button Head Cap Screw M12*25 1
12.4 HZ70022000 Short Barbell Casing 1
12.5 PL1301600 Buffer Pad Φ76*26 1
Item No. Part No. Description QTY
13.1 D45HE07ASSY Handle Turning Frame ASSY 1
13.2 D45HE11ASSY Handlebar Frame ASSY 1
13.3 IN-D10132300V3 Aluminium Cap Φ43*Φ11*8 1
13.4 GB70M8*20DY20NL Socket Head Cap Screw M8*20 1
13.5 CNLM10*25DY20NL Flat Head Cap ScrewM10*25 1
To Next Page
