19. At the front of the Carburetor,
remove the Bolt (38) holding the
Fuel Pump Bracket (40) in place. See Figure K.
Fuel Pump
Bracket (40)
Bolt (38)

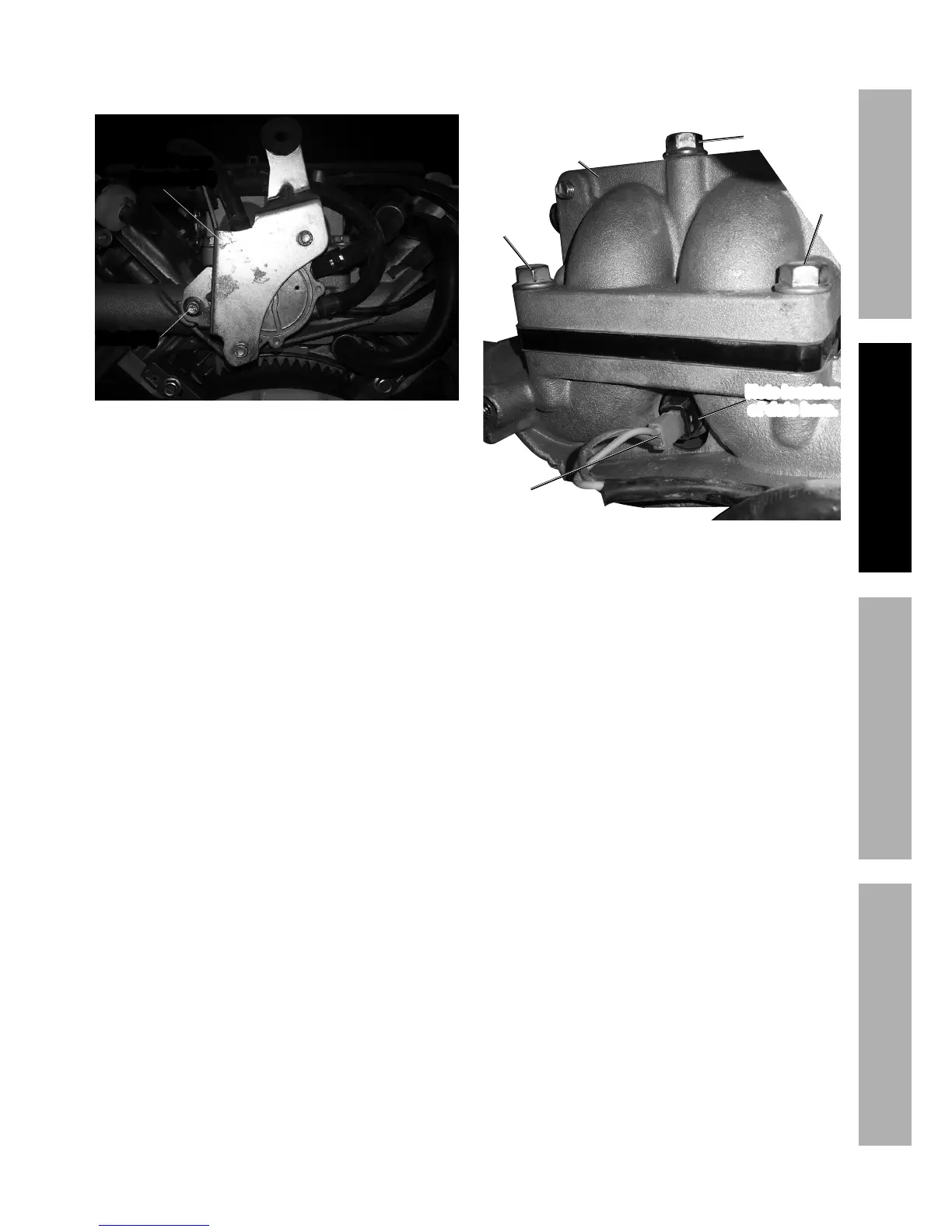

Figure K: Remove Fuel Pump Bracket
20. Underneath where the Fuel Pump Bracket was,
the Solenoid Valve (138) is connected.
Note the location of the green wire and green dot on
the connector. Unplug the connector. See Figure L.
Solenoid wire
connector
Note location
of dots here.
Bolt (133)
Carburetor
Intake Elbow
(131)
Bolt
(132)
Bolt
(132)
Figure L: Disconnect Solenoid Valve wire connector
21. Remove Bolt (133) and two Bolts (132) from the
Carburetor Intake Elbow (131). See Figure L.
22. Remove the Carburetor assembly from the engine.
Keep it upright, it may contain fuel.
