Predator Engines 68306 - Dimensional Diagrams

Page 30 For technical questions, please call 1-800-520-0882. Horizontal Engines

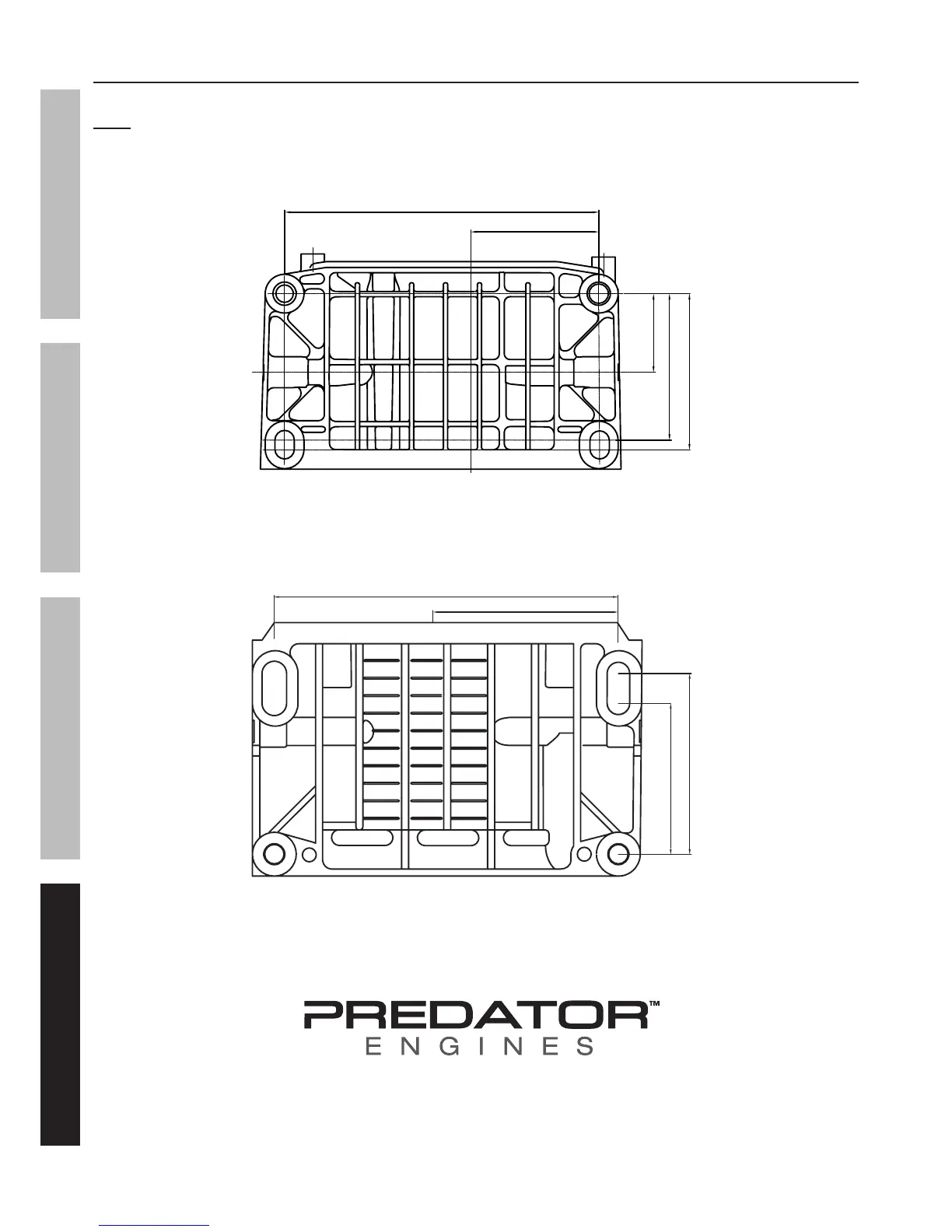

Mounting Hole Diagrams
Note: Not to scale.
ITEM 68120 / 68121 212cc
6.38 in. / 162mm
2.6 in. / 66mm
1.6 in. / 40.5mm
2.97 in. / 75.5mm
3.17 in. / 80.5mm
ITEM 68136 346cc and ITEM 68306 420cc
7.72 in. / 196mm
4.13 in. / 105mm
4.06 in. / 103mm
3.39 in. / 86mm
