3. Remove the Axle / Drag Bar Assembly from the
bracket on the Cultivator.
4. Attach the two Wheels (24) onto the
Axle / Drag Bar Assembly in orientation
shown using one M6 x12 Screw (22) and
Ø6 Washer (23) per Wheel.
5. Attach the completed Axle / Drag Bar
Assembly onto the bracket on the
Cultivator using the R-Clip and Clevis
Pin removed in steps 1 and 2.
Attach the Axle / Drag Bar Assembly in the
rolling position with the Drag Bar facing
up as shown for moving the Cultivator
before and after use. For cultivating
change the direction to the working
position with the Drag Bar facing down.

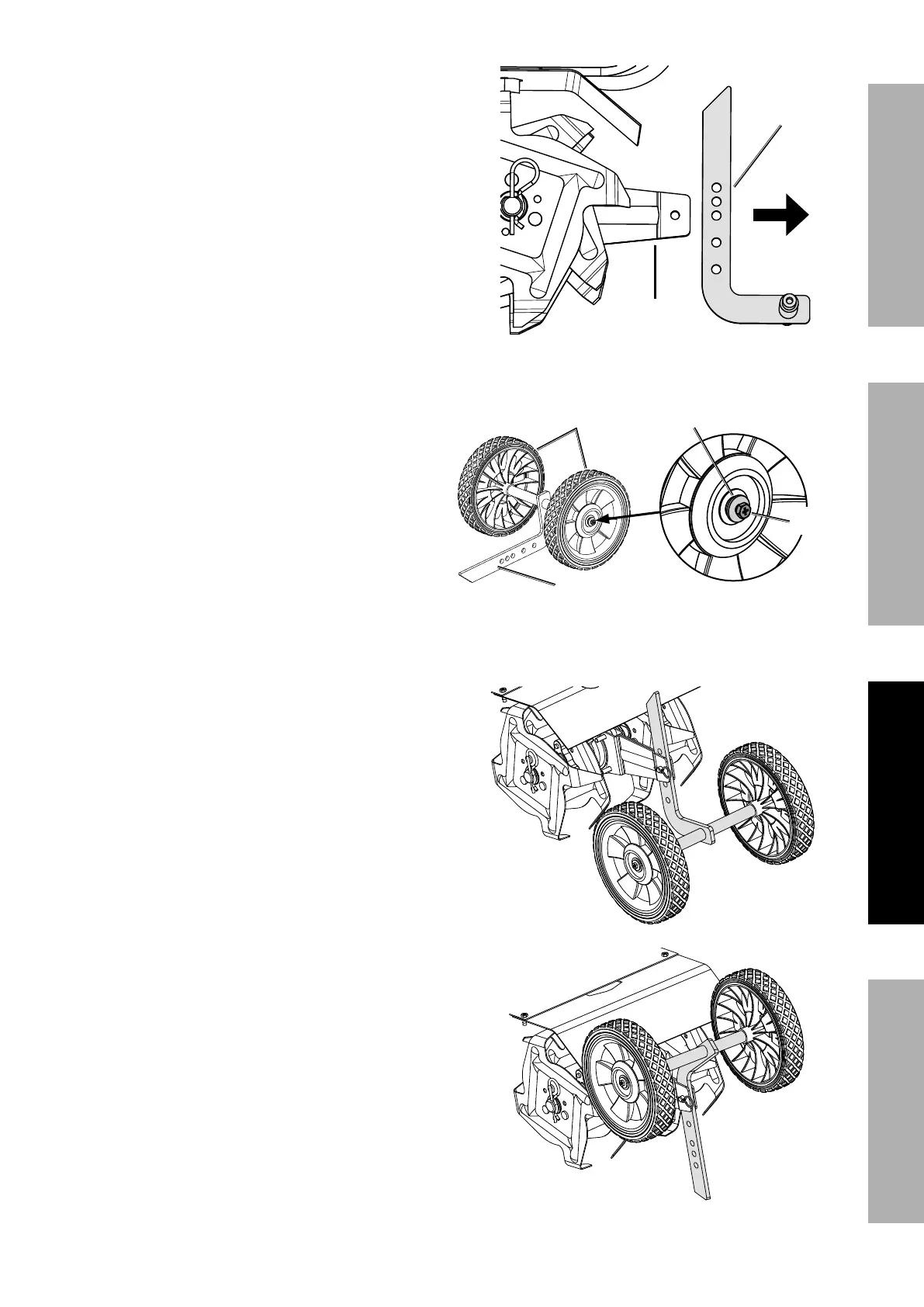

Bracket
Axle/
Drag Bar
Assembly
M6x12 M6x12
ScrewScrew
Ø6 Washer
Wheels
Axle/Drag Bar
Assembly
Rolling
Position
Working
Position
