Page 2 R&(%$*4.8"4,7%T'*#$"&8#Q%/7*,#*%4,77%=>???>?AA>UVBV1 ITEM 63406
L,+7*%&2%<&8$*8$#
Specifications ............................................. 2
Safety ......................................................... 3
Setup .......................................................... 6
Operation ................................................... 10
Maintenance .............................................. 14
Troubleshooting ......................................... 18
Warranties ................................................. 20
Parts Lists and Diagrams .......................... 22

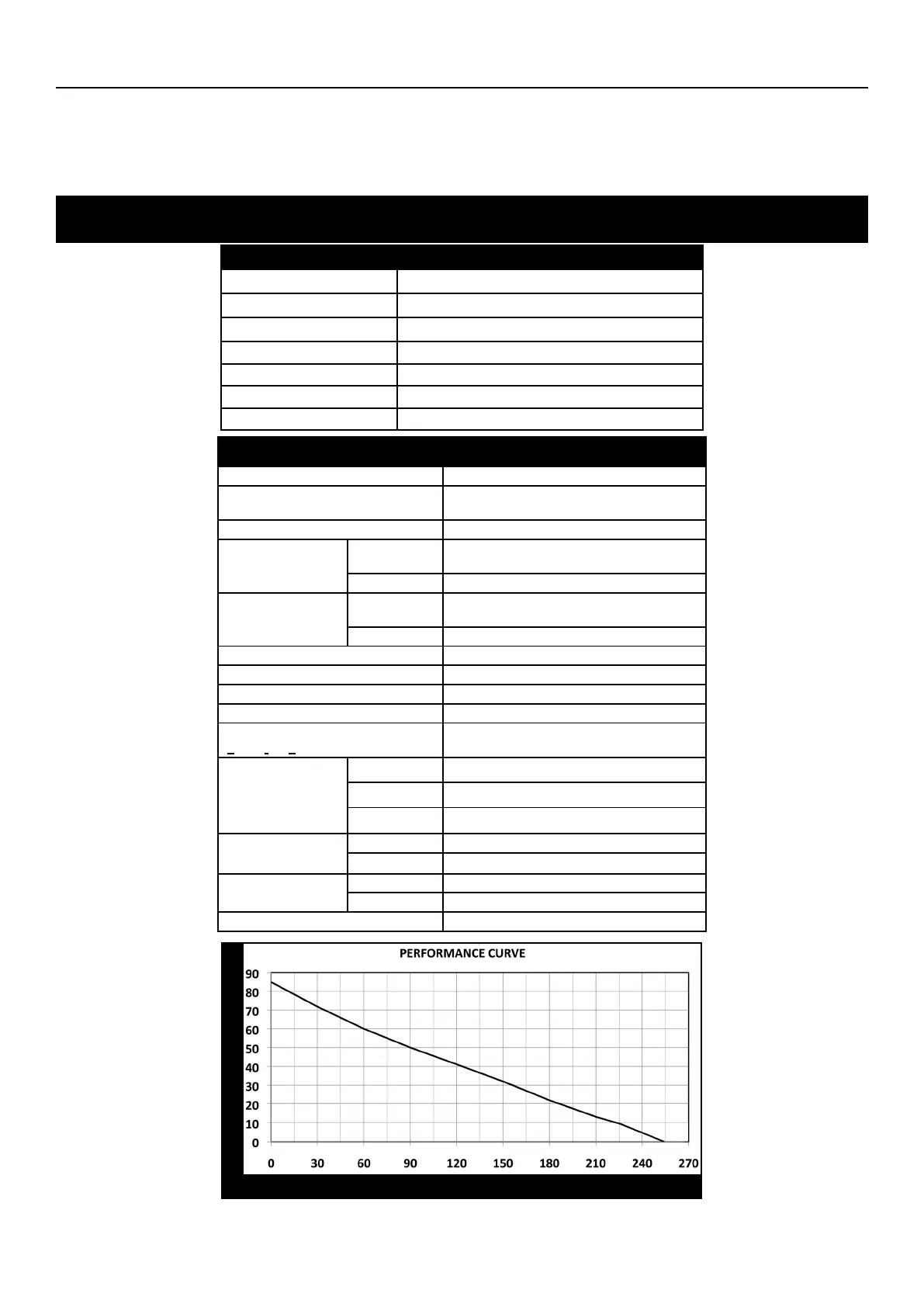

M/*4"2"4,$"&8#
Pump
Suction & Discharge Size 3" NPT
Maximum Flow at 0’ 290 GPM
Maximum Head Lift at 0 Flow 85 ft.
Maximum Intake Lift at 0 26 ft.
Passable Soft Solid Size 3/4" Dia.
Mechanical Seal Ceramic
Included Accessories Intake Strainer, Hose Clamps, Spark Plug Wrench
Engine
Displacement 212cc
Engine Type
Horizontal Single Cylinder 4 stroke OHV
EPA phase III compliant
Cooling System Forced air cooled
Fuel
Type
87+ octane stabilizer-treated
unleaded gasoline
Capacity 0.9 Gallons / 3.6 Liters
Engine Oil
Type SAE
10W-30 above 32° F
5W30 at 32° F or below
Capacity 0.5 Quarts / 0.5 Liters
Run Time @ 50% Load with full tank 3 hr.
Sound Level at 22 feet 104 dB
Bore x Stroke 70 mm x 55 mm
Compression Ratio 8.5:1
Rotation viewed from PTO
(power takeoff - the output shaft)
Counterclockwise
Shaft
Shaft 3/4" x 2.41"
Keyway 3/16" (4.76 mm)
End Tapped 5/16 - 24 UNF
Spark Plug
Type NGK
®
BP-6ES; NHSP
®
/ Torch
®
F6TC
Gap 0.027" - 0.031"
Valve Clearance
Intake 0.004" - 0.006"
Exhaust 0.006" - 0.008"
No Load Speed 3,800 RPM±100RPM
R7&)%WX,77&8#05"8'$*Y
;"#4.,(3*%Z*,9%W2$1Y
