Premier 430 - Specifications

1-800-255-5387 • www.premier-mfg.com
PREMIER MANUFACTURING COMPANY
Page 5
SAFETY WARNING
This product is designed for towing under
normal conditions within the stated gross
trailer weight capacity of the hinge assembly
being used. Do not overload or abuse this
product. Overloading or abuse may lead to
property damage, severe injury, or death.

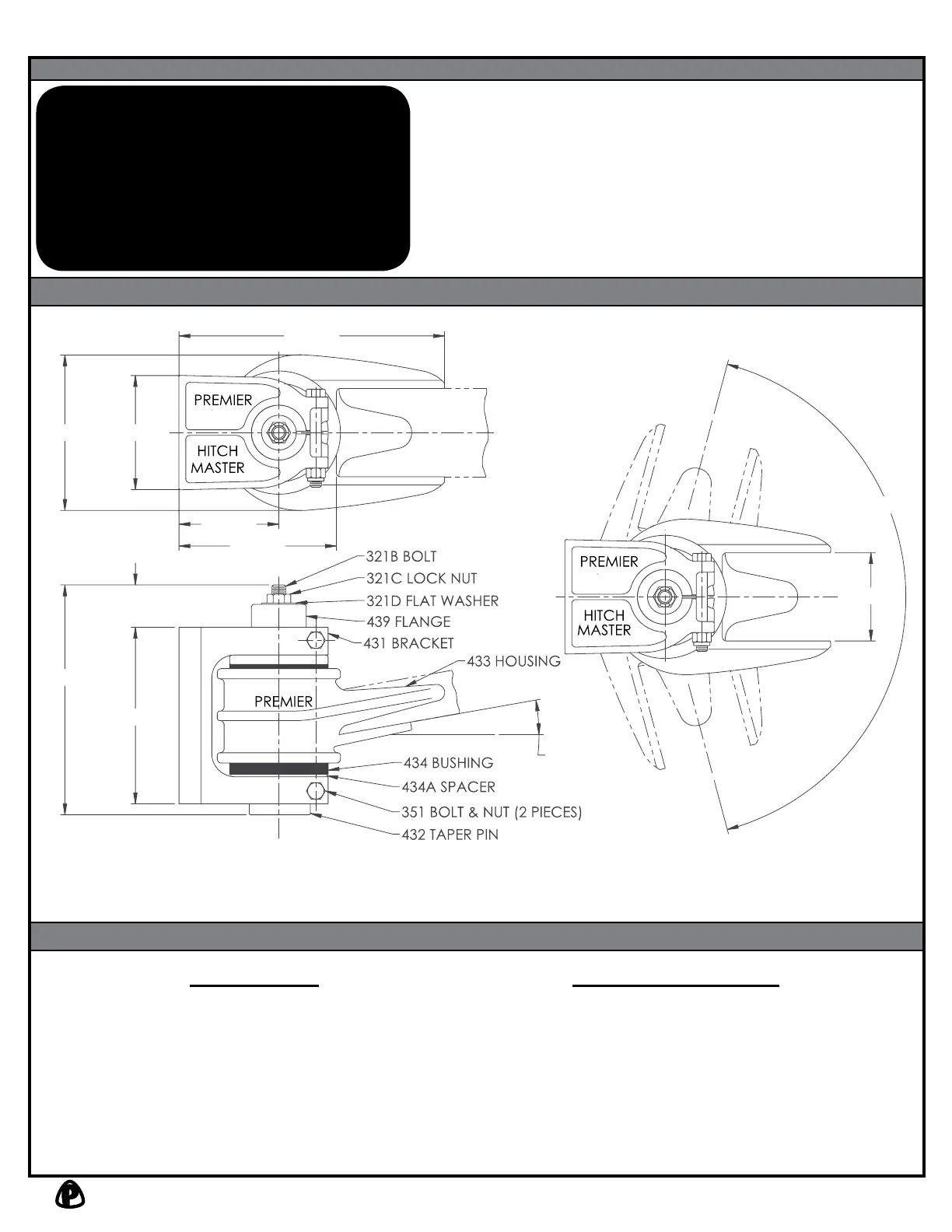

STANDARD INSTALLATION DRAWING
Max. Gross Trailer Weight (pair):
Bushing O.D.:
Bushing Length:
Unit Weight (pair):
150,000 lbs. (68,038 kg)
4 1/4 in. (108 mm)
5 in. (127 mm)
85 lbs. (38.6 kg)
Model 430 / 430A Hinge Assembly
SPECIFICATIONS
4 1/32
431
431
433
8 1/16
4 9/16
5 7/32 7 3/32
12 1/8
7 3/16
10 1/2
10°
(0°-15°)
1 15/16
150°
PARTS & ACCESSORIES
Bushing Replacements
(Use ONLY Premier’s Bushings):
- 434 (Rubber) or 434B (Poly)
Accepts 2 in. x 4 in. (51 mm x 102mm)
rectangular tubing or channel.
- 321B Bolt
- 321C Locknut
- 321D Flat
Washer (2)
- 351 Bolt &
Nut (2)
- 431 Bracket
- 432 Taper Pin
- 433 Housing
- 434A Spacer
- 434/434B
Bushing
- 439 Flange
Parts Included
