Illustration #1
Illustration #2
For Technical Support Call (800)982-1840 www.premieroneproducts.com ©2016

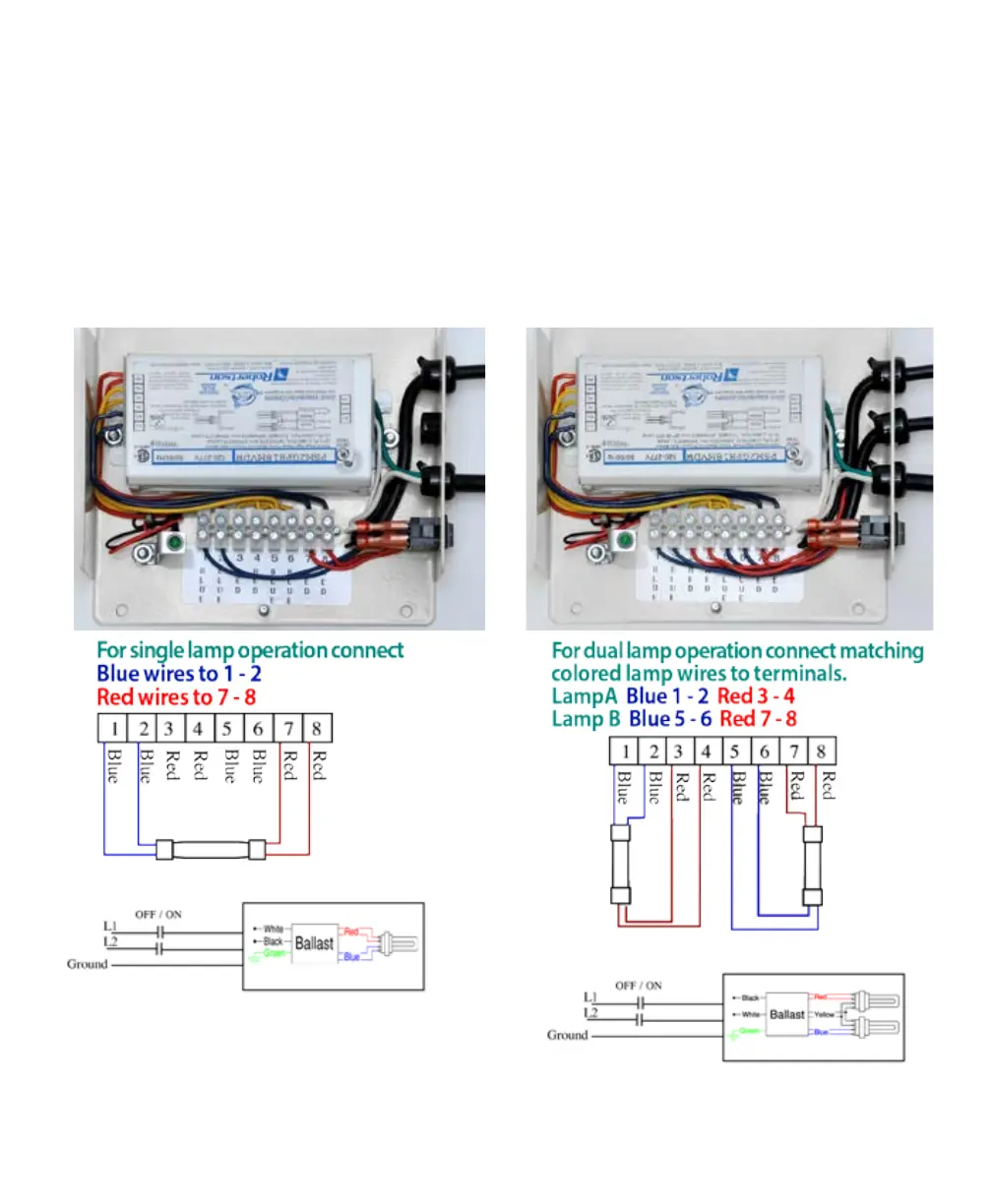

CORRECT WIRING FOR SINGLE LAMP OPERATION. CORRECT WIRING FOR DUAL LAMP OPERATION.
WIRING/FUSE
With the oxidizing unit installed, the unit must cycle with the furnace blower. Wire unit to an EAC
terminal or current-sensing relay to cycle the unit with the system fan. If the oxidizing unit is not installed, you
may allow unit to run continuously. The multi-voltage ballast is self-adjusting and operates with voltages from
120 - 240 VAC. For 120V wiring connect the black wire to L1, white wire to neutral, green wire to ground.
For 240V wiring install 5 amp in-line fuses then connect the black wire to L1, white wire to L2, green wire to
ground. Be sure power cord is secured with included strain relief connector. Wire the unit in accordance with
local wiring codes. After installing, verify voltage is operating between 120 - 240 VAC with air handler operating.
