PremierOne MUV7-50DR - Mounting Details; Lamp Mount Installation

MUV7-50DR shown mounted on
a heat pump with the oxidizing
unit installed on the air return.

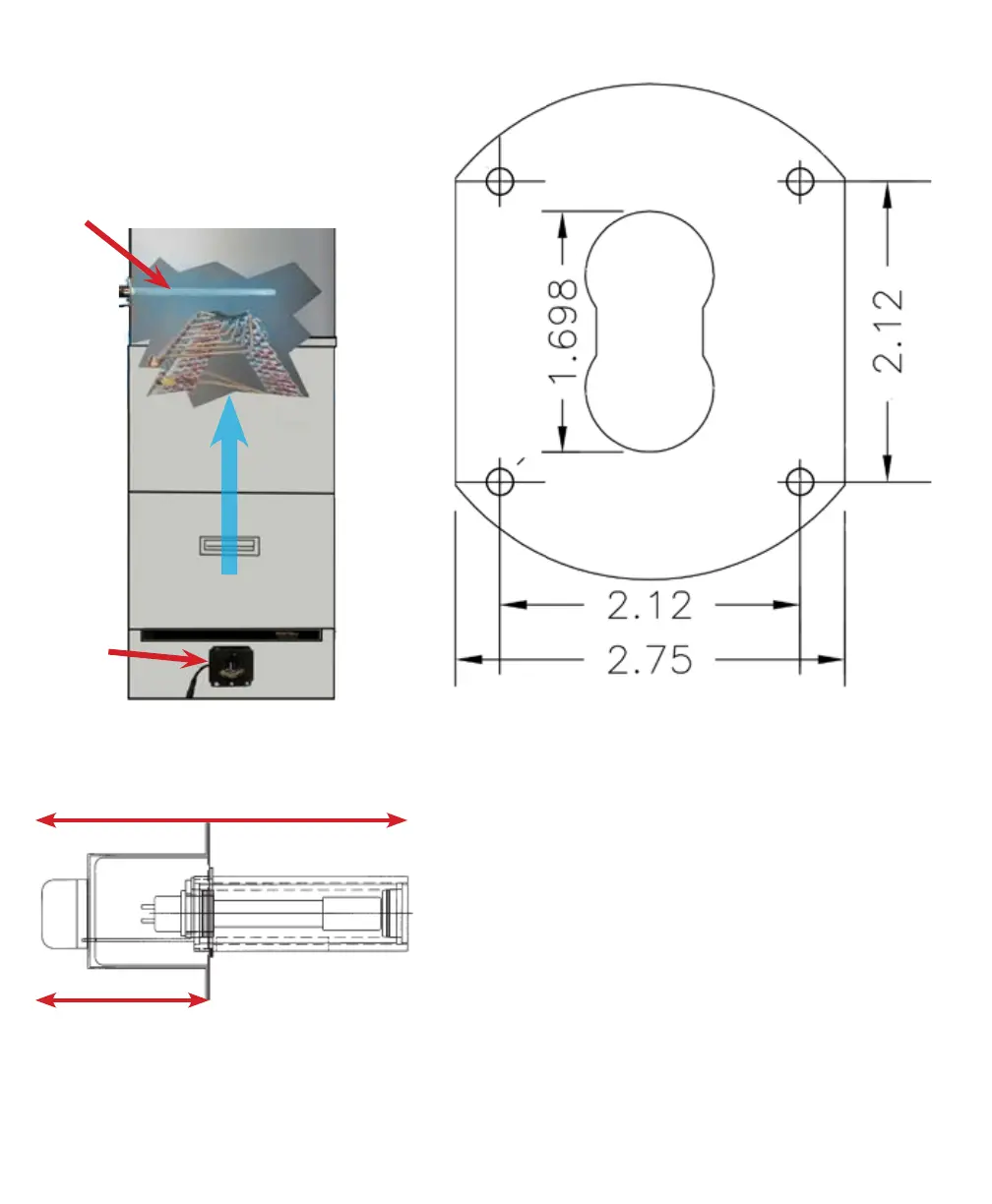

1. Using the lamp mount as a template, draw the hole pattern
on the air duct in a suitable location.
2. Using a 1 1/4 inch Vari Bit, make two holes side by side.
Clean o excess metal between the two holes with tin snips.
3. Peel o the adhesive backing of the gasket on backside of
mounting plate.
4. Center mounting plate on hole.
5. Use four self tapping screws provided to secure mounting
plate on the air duct.
UVC
Lamp
Optional
Odor
Control
unit
Oxidizing unit box size is 4 1/8” high x 4 1/8” wide.
Lamp socket size is 3.5” x 2.75” x 1.625”
Power box size is 6” x 5.75” x 1.5”
8 1/4”
3 1/4”
Airow
