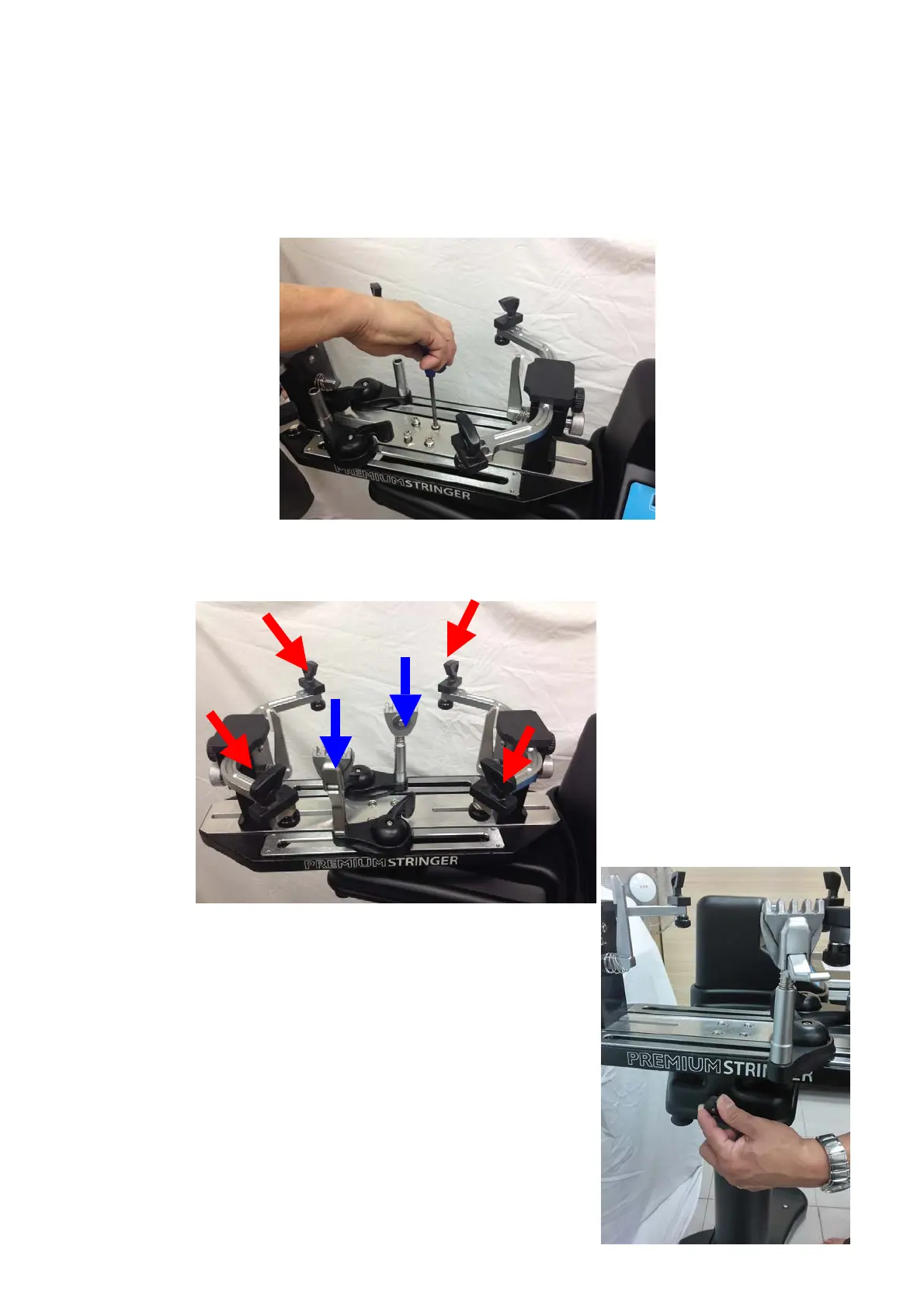

Open the carton of the racquet mount. Carefully lift the racquet mount
assembly out of carton and place its turntable in the bearing pivot of the
tension head assembly. Next insert the 4 Allen bolts in the 4 holes of the
turntable and then tighten them evenly with a 5 mm wrench.
Insert the string clamps into the clamp bases. Mount the each side support in the
proper hole on the side support arms and secure it by tightening its knob beneath.
Unlock the turntable by rotating the screw of the brake
counter-clockwise to release the turntable.
