1. When power is on. the air blade makes a complete shutdown. with a swing rate of 22°/ s
2. When machine is on. the air blade makes a complete shut
down. then swing to its initial
point. While heating, it stops at point 5( chart 4）.while cooling, then swing back to point 2
（chart 4）.
3. The flap button on remote controller can set the air blade to free swing or Manual swing.
4. For free swing, he swing scope of heating is 40°.as (chart 4）3-5, swing scope is 40°.as 2-4
in chart, swing rate for 5.5°/ s.
5. When the machine is turned on. while remote control set air blade non-swing, swing angle
swings to a proper position according to different mode e.g. :cooling mode is（chart 4）position
two, heating mold is（chart 4）position 5. If it's set as free swing, open the fan, air throttle
swings within limitation. If the remote manipulator set non-swing, pendulum will stop at the set
position. If the fan is not open, then the air blade will not swing.
6. Turn off the machine and when the inside motor stop working, the air blade will close by
itself.
7. Press the emergency switch to start automatic mold. When the selected mode starts to run,
air blade will open. Before this air blade stays on cooling position.

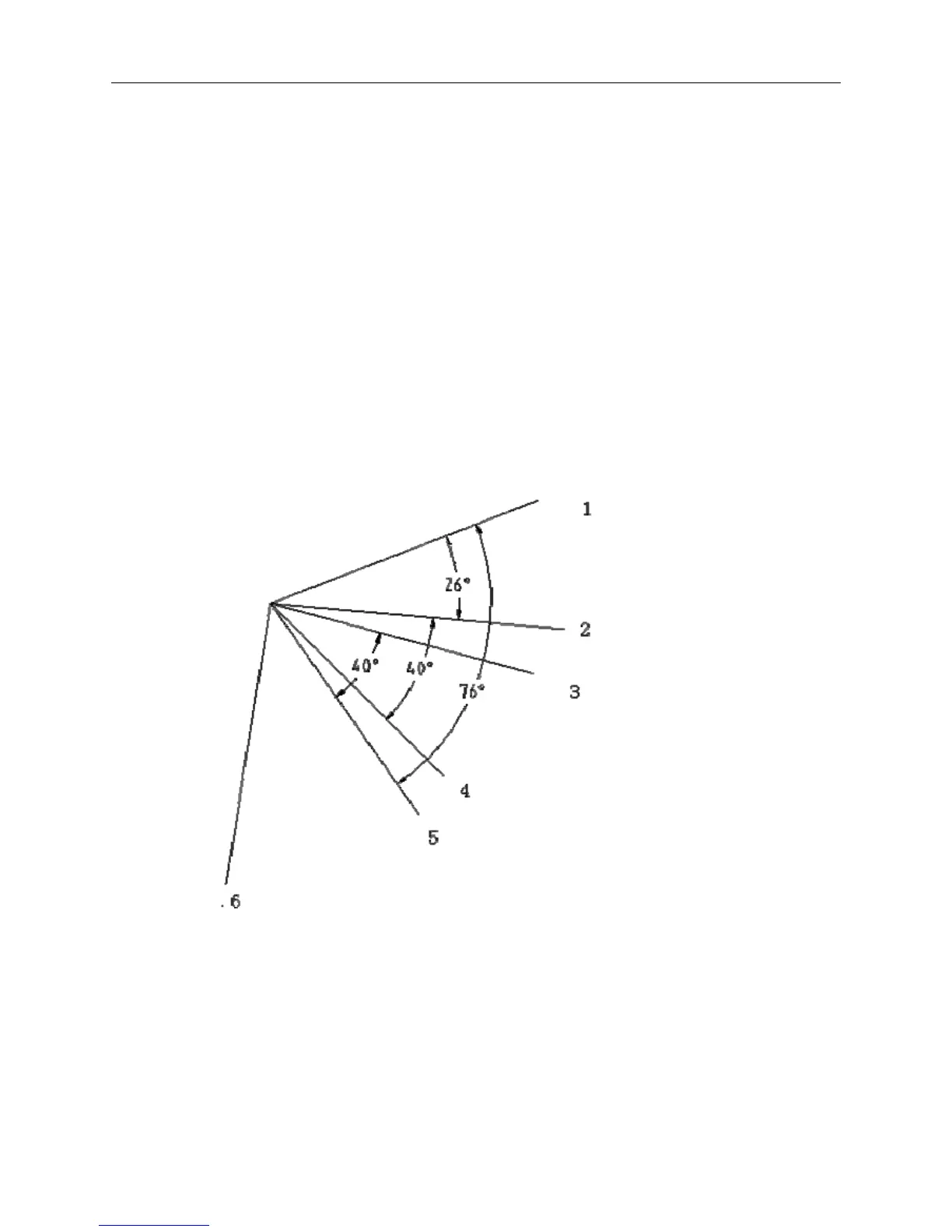

Show chart of swinging angle of H model air blade as follows
1. position
of complete shutdown 2.refrigeration position
3. refrigerating pendulum terminal point 4.heating pendulum terminal point
5 .heating position 6.position of complete shutdown
Atta
ched is the electrical resistance for wind speed.
