13. As in figure 9.dismantle the two bolts on the fixed electrical holder and take down the
holder component.
14. As in figure 10.dis
mantle the four bolts on the fixed partition plate and take down partition
plate
15. Unsolder the 4 welding points shown in chart 11.
16. As shown in chart 12 dismantles condenser assembly. A. B system compressor and valve
plate component.

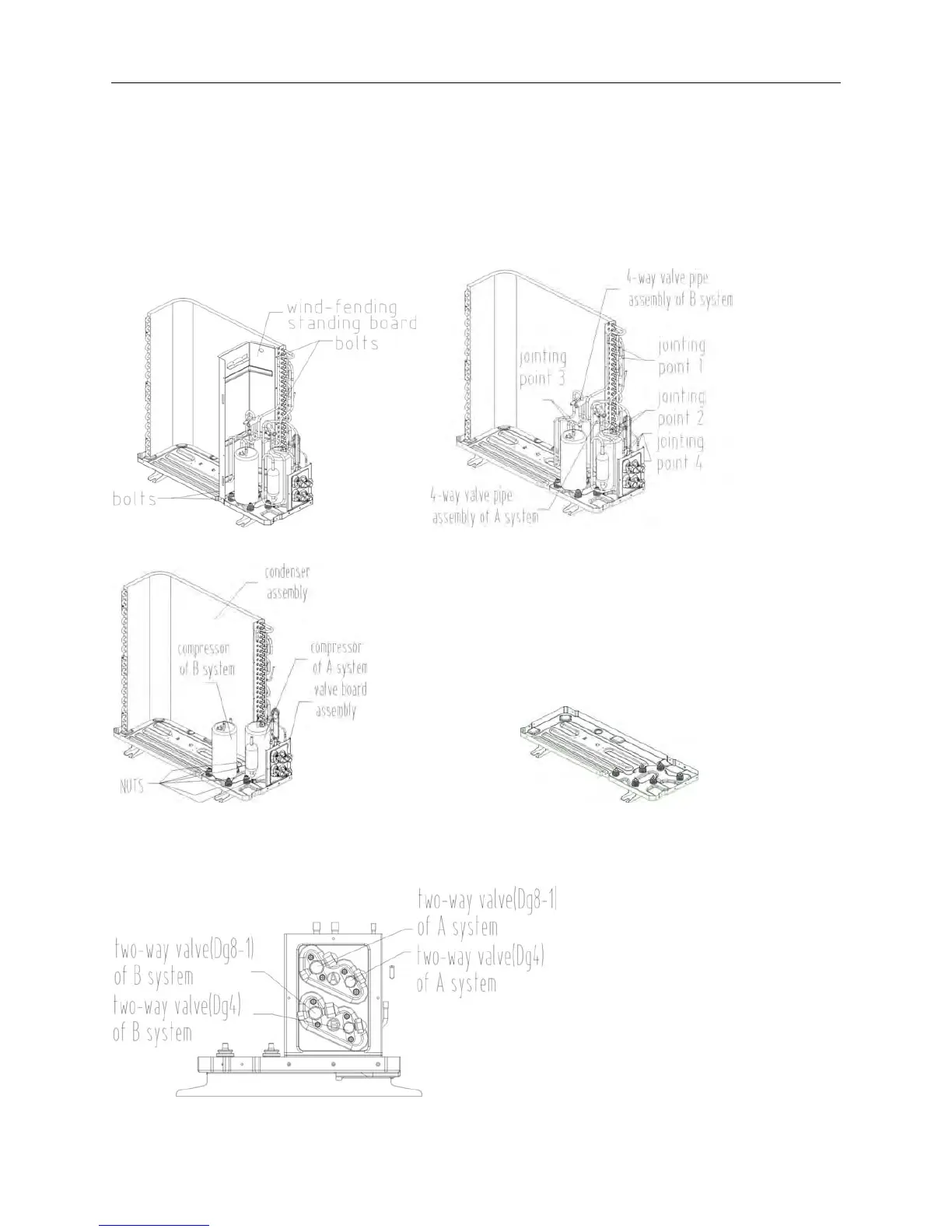

figure10 figure11
figure12 figure13
figure14
