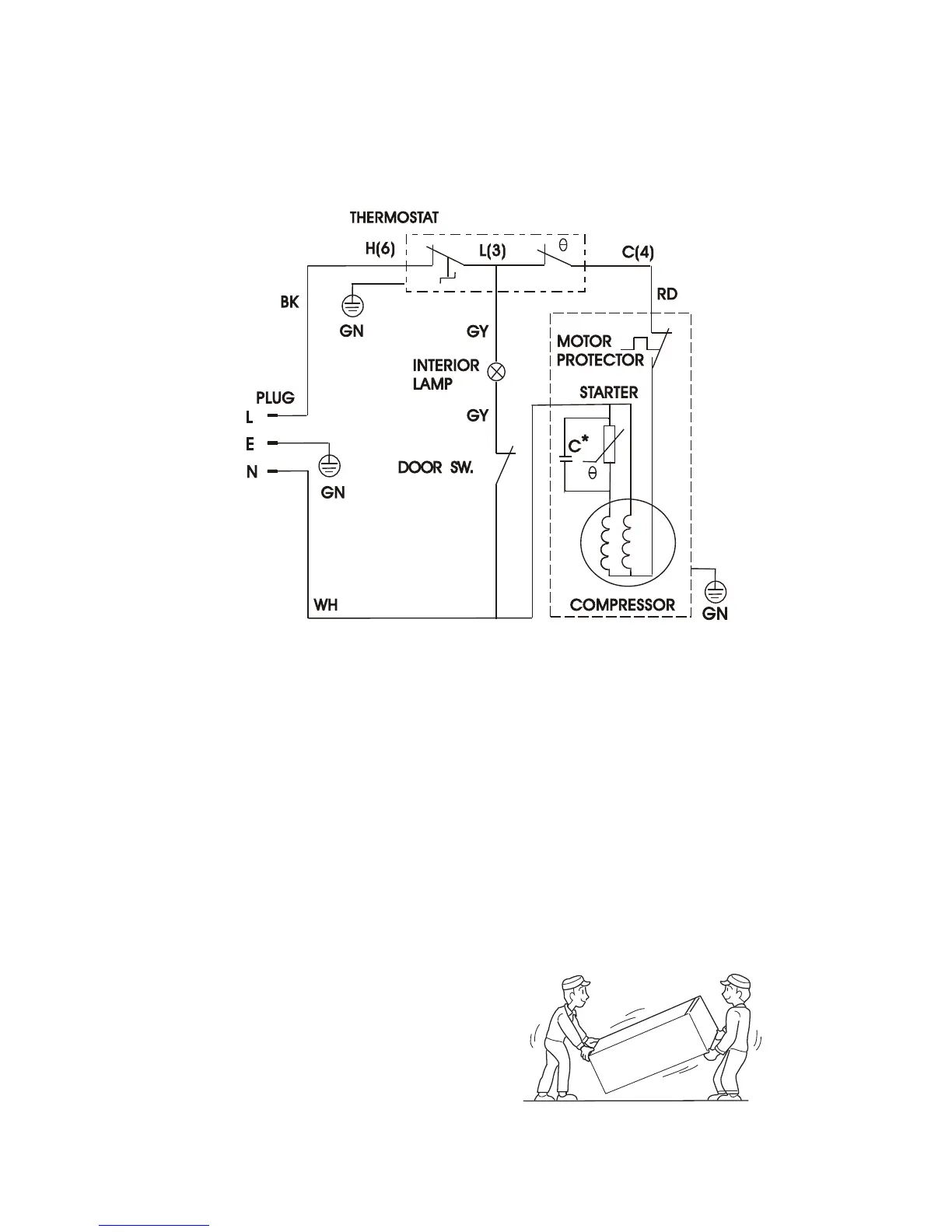

WIRE DIAGRAM
CHANGING THE REVERSING DOOR
Before reversing the door swing, ensure the appliance is unplugged and empty. Provide
additional support for the doors while hinges are being removed.
Do not depend on the door magnets to hold the door in place. It is recommended that two
people perform this task. DO NOT lay the appliance completely flat as this may damage the
coolant system.
TOOLS REQUIRED
Phillips style screwdriver / Flat bladed screwdriver / Hexagonal spanner
1.
Tilt the unit slightly towards the rear and
prop it securely. Two people are
required to tilt the unit during the door
reversal process.
